1.4.7 Assembly information

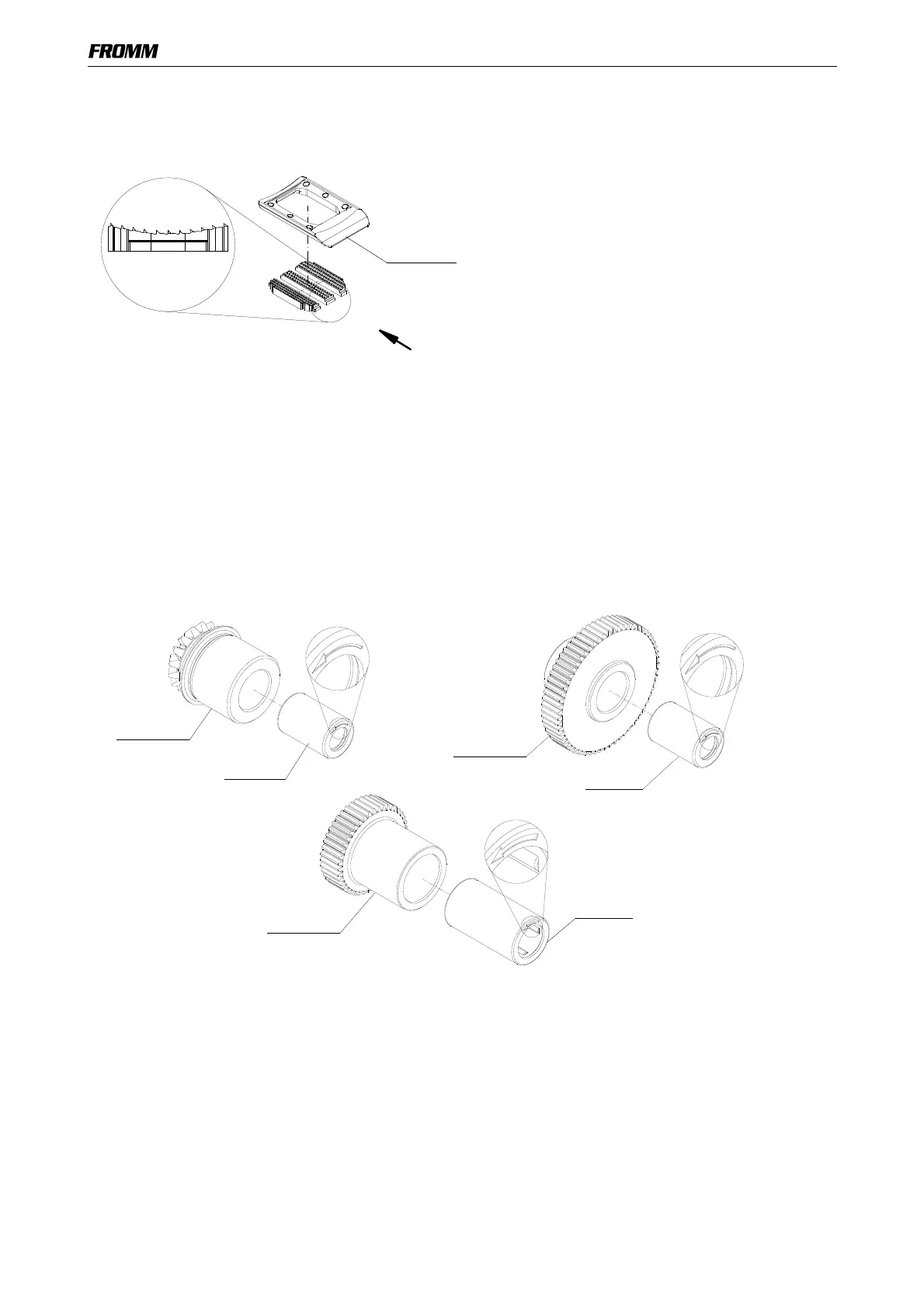

When installing the grippers into the holder P35.4184
pay attention to the direction of the teeth.
(see drawing)
Pay attention to the mounting position of the needle free wheelings N3.4509 and N3.4519.
The rolling direction is stamped in at the front side of the free wheelings.
P35.4184
Grippers
N3.4519
P35.4159
P33.2122
N3.4509
N3.4509
P33.2123
