Installing/connec-
ting the antenna
Installing the
display card in
FRONIUS IG
(continued)
NOTE! The following points should be borne in mind when installing the display
card:
- Only install the display card in the "Option 1" or "Option 2" slots
- Under no circumstances should it be installed in the slot on the extreme
left, which is labelled ENS
7. Close the housing
8. Connect AC and DC lines to FRONIUS IG
The antenna is supplied with a 2 m (6.74 ft) connecting cable. If the FRONIUS IG is
installed in a location that is shielded from radio waves, this cable allows the antenna to
be installed where it can receive radio waves.
1
4
5
3
1
2

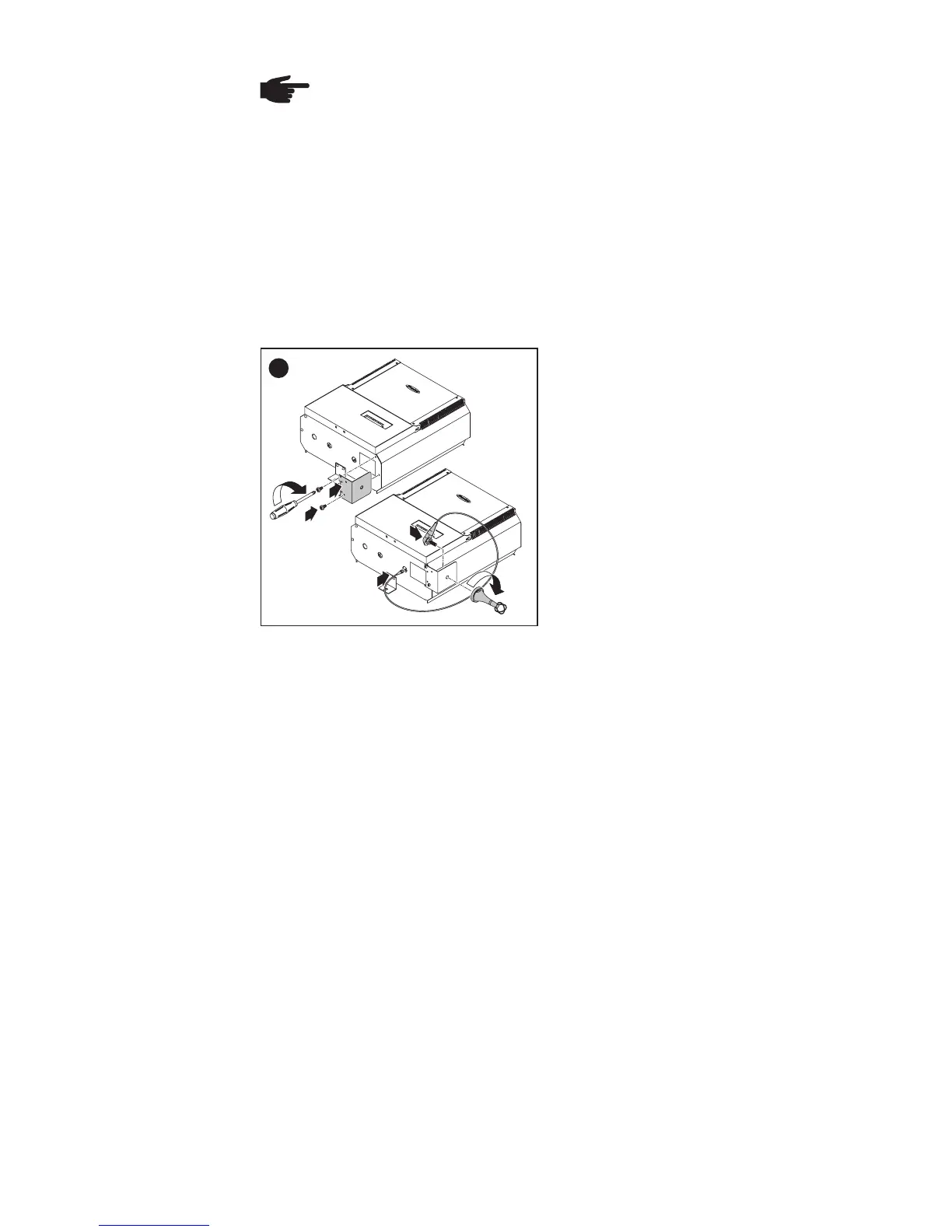

Important! Use the previously removed
original housing screw to screw the
antenna mounting bracket onto the hou-
sing.
