7
Controls
General remarks
The personal display enables performance data for the entire installation and for each
individual inverter to be displayed. The menu structure is largely identical to that of the
FRONIUS IG.
NOTE! As a result of firmware updates, you may find that there are functions
available on your unit that are not described in these operating instructions or
vice versa. Certain illustrations may also differ slightly from the actual controls
on your unit. However, the functionality of these controls is identical.
Description of
keys and sym-
bols

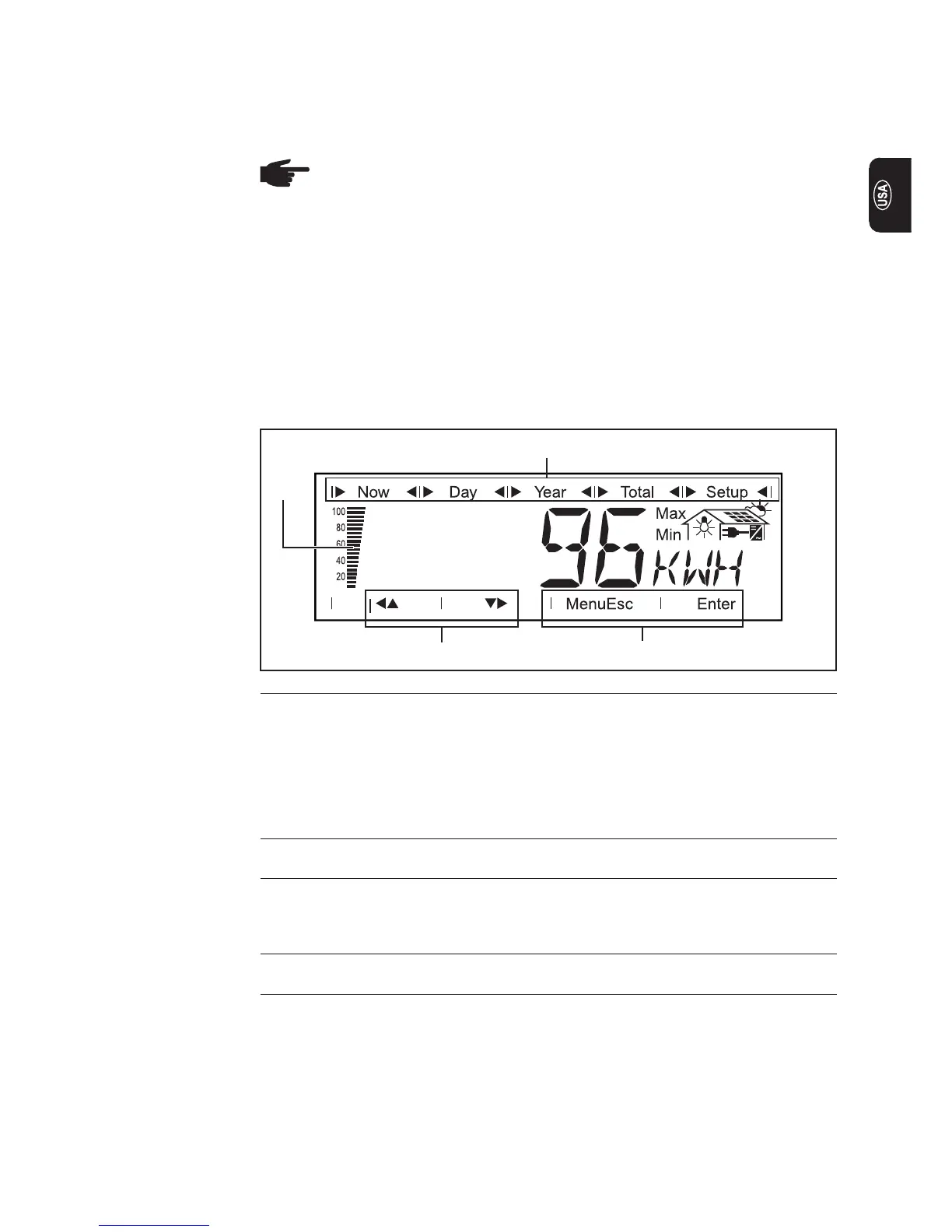

The personal display is modelled on the display of your FRONIUS IG. A detailed descrip-
tion of how the different keys operate and the symbols can be found in the operating
instructions for your FRONIUS IG.
(1)
(1) The segment column
indicates the current charge state (100 - 20%) of the batteries. If the charge state of
the batteries starts to fall towards 0 the column will start flashing.
Important! If the charge in the batteries falls any lower the unit will switch into sleep
mode and will suspend radio communication. Nothing appears on the display in
sleep mode. If a key is pressed, "LOW batt" will appear on the display. To recharge
the batteries, plug in the power supply and press any button.
(2) Display modes bar
indicates the display mode currently selected.
(3) Indicator for selector keys
- Menu ... for switching to a different display mode
- Esc ... to exit from the Setup settings without saving them
- Enter ... to confirm and save a selection
(4) Navigation arrow keys
for navigating in the direction indicated, depending on the option selected
(4)
(2)
(3)
