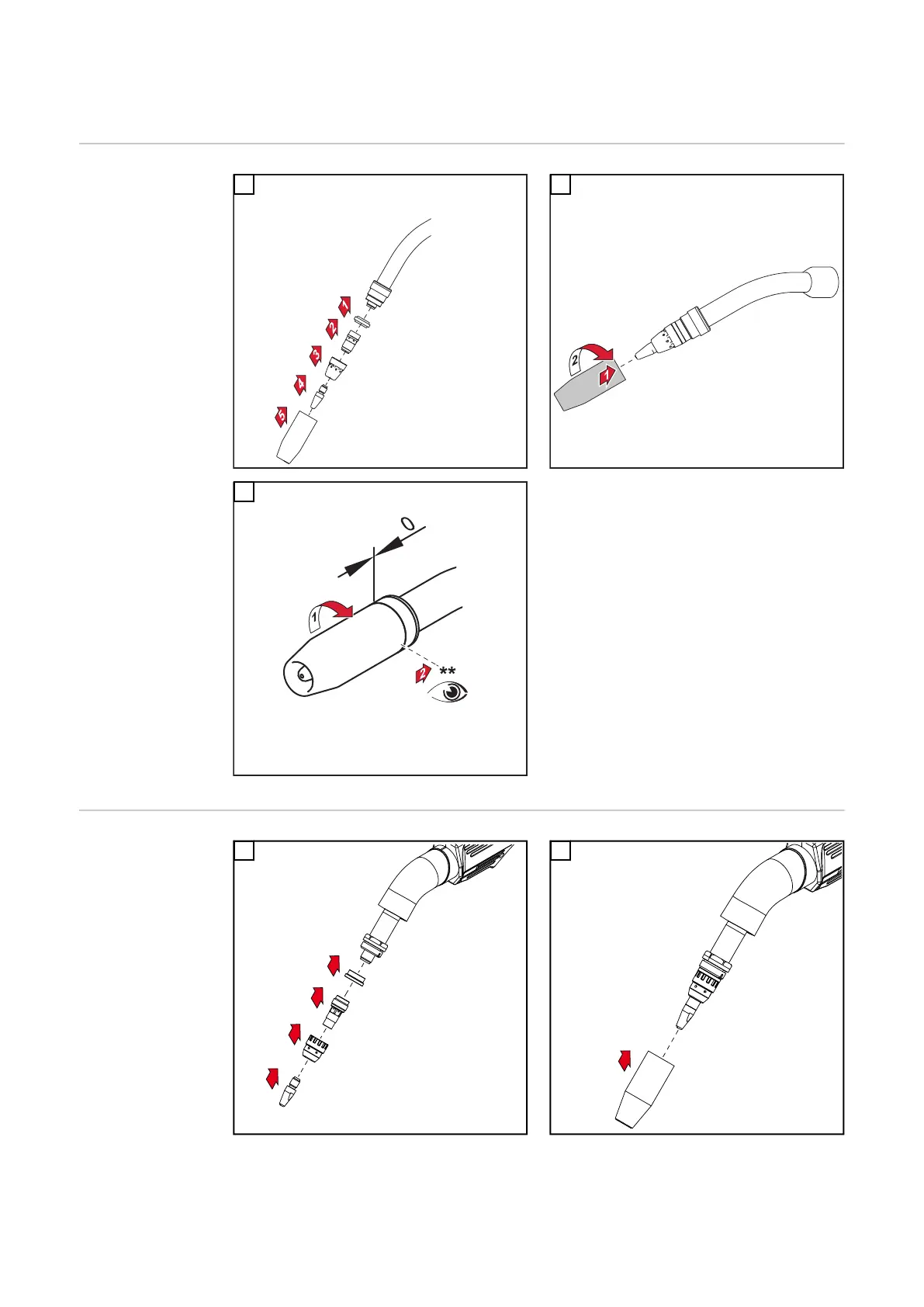

Fitting wearing parts to the torch neck
MTG d, MTW d -
Fitting wearing
parts to the
torch body
1 2
3
** Screw on and tighten the gas
nozzle as far as it will go
MTG 400d K4,
MTW 500d K4 -
Fitting wearing
parts
4
3
2
1
1
1
2
44
