Example: Installa-
tion of several in-
verters
Do not ground the
solar modules.
The inverter is designed exclusively for
connection to and use with non-grounded
solar modules. The solar modules must not
be grounded at either the positive or nega-
tive pole.
When installing the inverter in a switch cabinet or similar closed environment, it is neces-
sary to make sure that the hot air that develops will be dissipated by forced-air ventilation.
If you wish to install the inverter on the outer walls of cattle stables, it is important to keep
a minimum clearance of 2 m between all sides of the inverter and air vents and other
openings.
The place of installation should not be exposed to ammonia, corrosive gases, salts, or
acids.
AC ~ AC ~ AC ~
DC = DC = DC =
DATCOM DATCOM

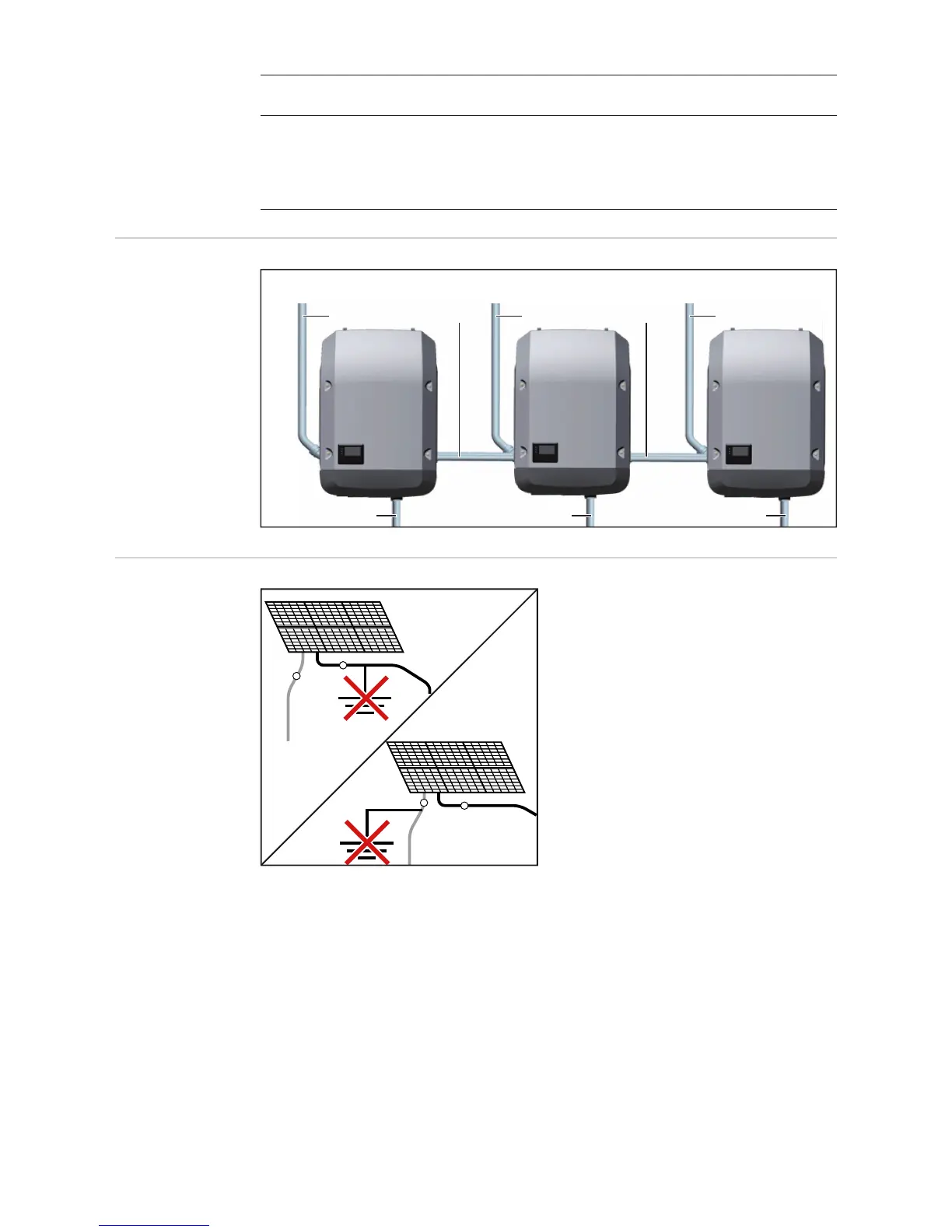

Installation example of several inverters
+
-
+
-
