13
EN-US

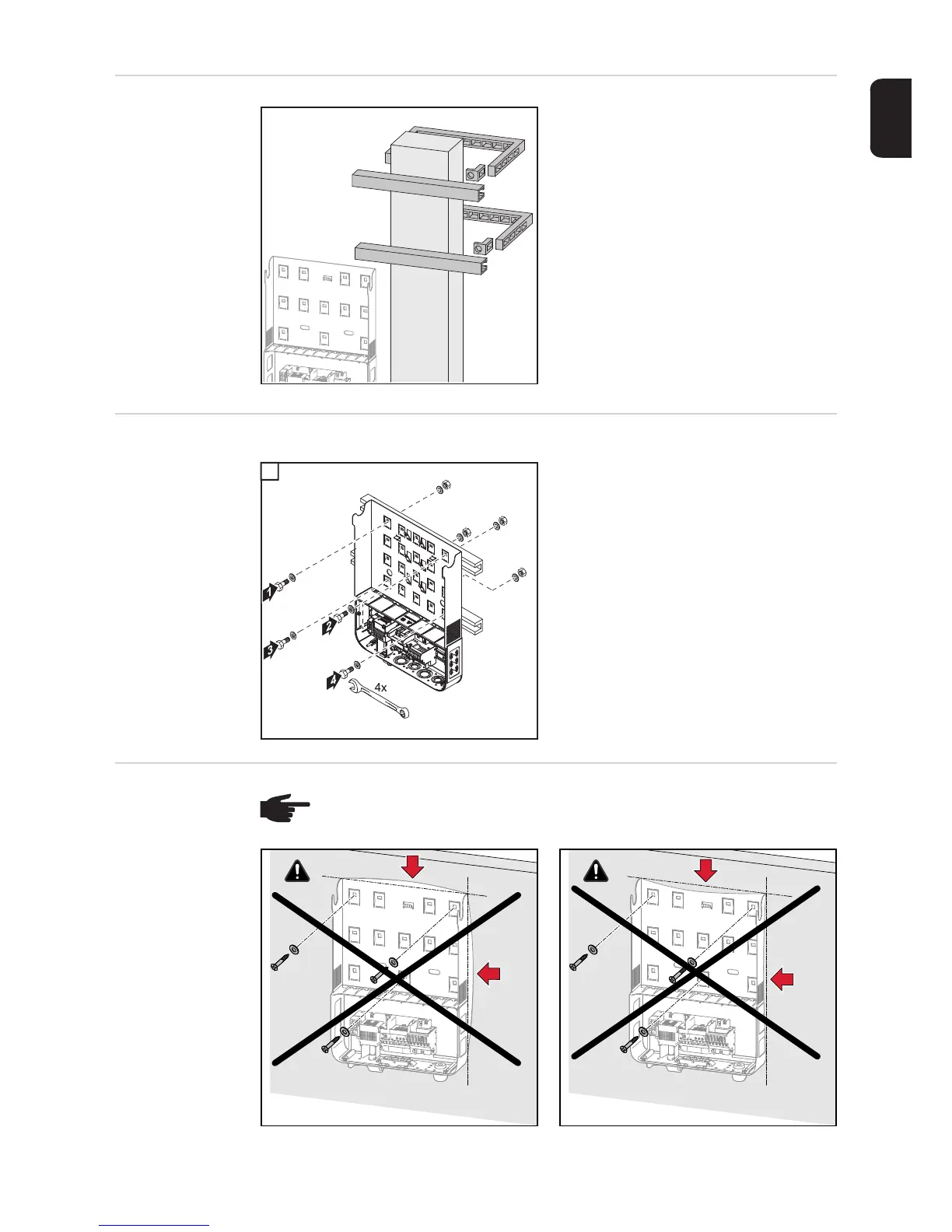

Install mounting
bracket on a mast
or beam
For installation of the inverter on a mast or
beam, Fronius recommends using the "Po-
le clamp" (order no. SZ 2584.000) mast
mounting kit from Rittal GmbH.
The kit can be used to mount the inverter on
round or rectangular masts with the follo-
wing diameters: from 40 to 190 mm
(round), from 50 to 150 mm (rectangular)
Attaching the
mounting brack-
et to a metal carri-
er
The mounting bracket must be secured in at least four places.
1
Do not warp or
deform the
mounting bracket
1
NOTE! When attaching the mounting bracket to the wall or to a column, make
sure that the mounting bracket is not warped or deformed.
