Fronius Symo GEN24 6.0 User Manual

3

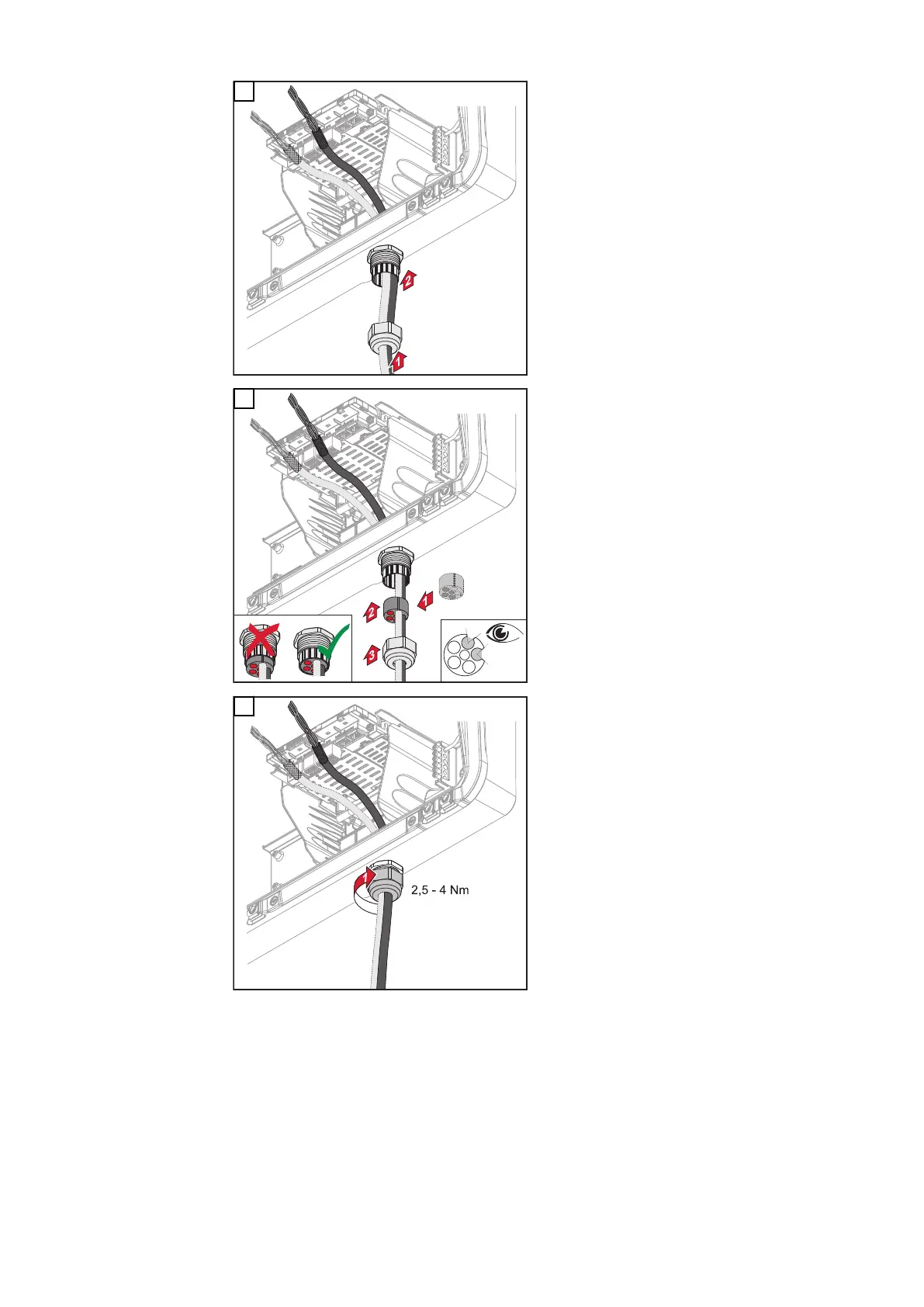

Guide the data cables first through the
strain-relief device cap nut and then
through the housing opening.
4
Insert the sealing ring between the cap
nut and the housing opening. Press the
data cables into the seal's cable guide.
Then press in the seal until it reaches
the underside of the strain-relief
device.
5
Fasten the cap nut of the strain-relief
device with a torque of min. 2.5 - max.
4 Nm.
90

Fronius Symo GEN24 6.0 Specifications

General

AC nominal output	6.0 kW
Protection class	IP66
Topology	Transformerless
Operating temperature range	-25°C to +60°C
AC nominal voltage	230 V
Number of MPP trackers	2
Maximum Input Voltage	1000 V
Cooling	Active cooling
Max. apparent AC power	6000 VA
AC voltage range	160 V - 280 V
Max. input current (DC)	12.5 A
MPP voltage range	80 V - 800 V
Max. DC power	9000 W
Maximum Input Power	9000 W
MPPT Range	80 V - 800 V
Warranty	5 years
