Fronius TransSynergic 4000 - Primary Rectifier; General Remarks; Component Position in the Machine; Overview

89
EN
Primary rectifier
General remarks The following primary rectifiers are used:
- TPS 2700: rectifier with item number 41,0002,0059
- TS 4000/5000, TPS 3200/4000/5000: rectifier with item number 42,0001,0060
Component
position in the
machine
Primary rectifierPrimary rectifier

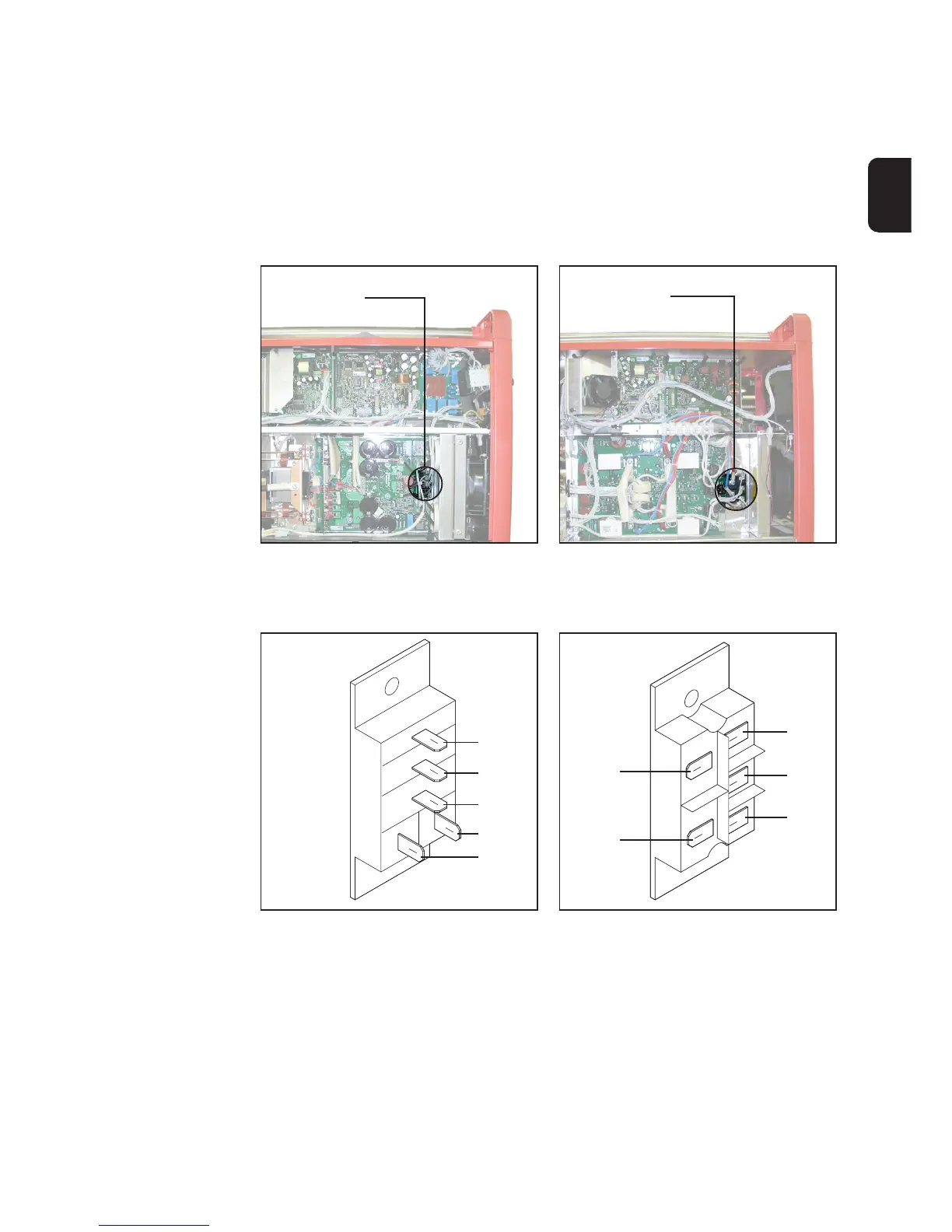

Fig.68 TS 4000/5000, TPS 3200/4000/5000:
position of primary rectifier
Fig.67 TPS 2700: position of primary rectifier
Overview
Fig.69 Primary rectifier TPS 2700 Fig.70 Primary rectifier TS 4000/5000, TPS 3200/
4000/5000
Function over-
view
The primary rectifier converts the input voltage (mains voltage) into a rectified voltage
for the intermediate circuit.
L1
L2
L3
(-)
(+)
L1
L2
L3
(-)
(+)
