93
EN

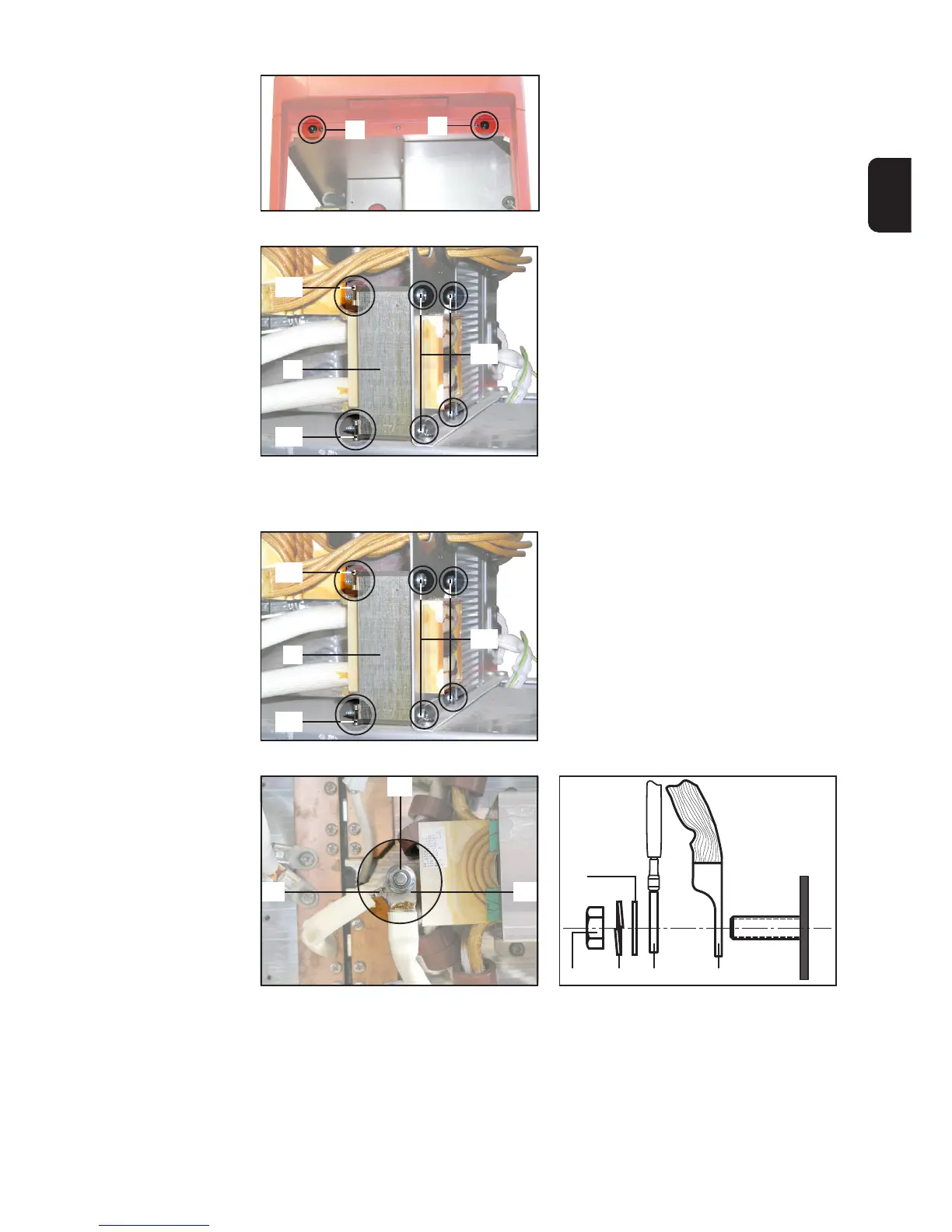

Removing throttle
(continued)
1. Loosen 2 screws (8)
2. Remove front of housing
1. Unscrew 4 screws (10) and remove
sheet nuts (11) from throttle
2. Remove throttle (9)
Fig.4 Removing front of housing
Fig.5 Removing throttle
(10)
(11)
(11)
Fitting throttle 1. Put throttle (9) in place and fix in
place with 4 screws (10) and sheet
nuts (11)
Fig.6 Fitting throttle
1. On the transformer, fit the following components in the order they are listed:
- Throttle lead cable lug (2)
- Protective element cable lug (5)
- Spacer (12)
- Spring washer (13)
2. Tighten hexagon nut (4) using a size 13 spanner
Fig.7 Fitting throttle lead
(8)
(8)
(9)
(10)
(11)
(11)
(9)
(4)
(5) (2)
Fig. 8 Fitting throttle lead
(4) (13) (5)
(12)
(2)
