Placing wire-feed unit on power source
General The wire-feed units can be placed on the power source if a swivel pin holder is available,
e.g.:
- "PickUp" swivel pin receptor, for use with the "PickUp" trolley
- "narrow" swivel pin receptor, for use with an upright console
- "wide" swivel pin receptor, for use with two screwed upright consoles and two power
sources
More detailed information on the swivel pin receptors can be found in the "Swivel pin re-
ceptors for upright consoles" and "PickUp" operating instructions.
Placing wire-feed
unit on power
source

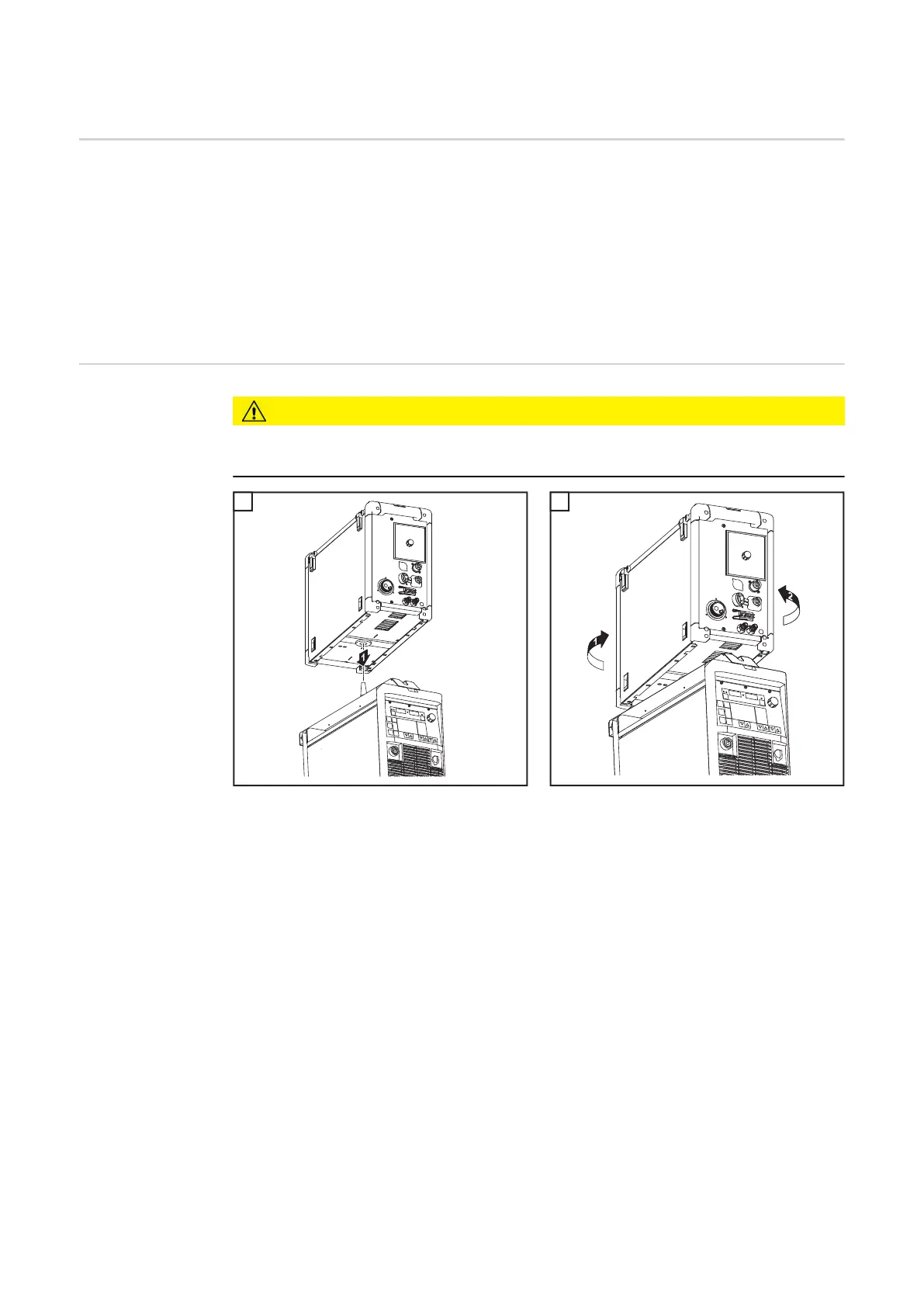

CAUTION!
Danger from falling wire-feed unit.
Check that the wirefeeder is securely placed on the swivel pin.
