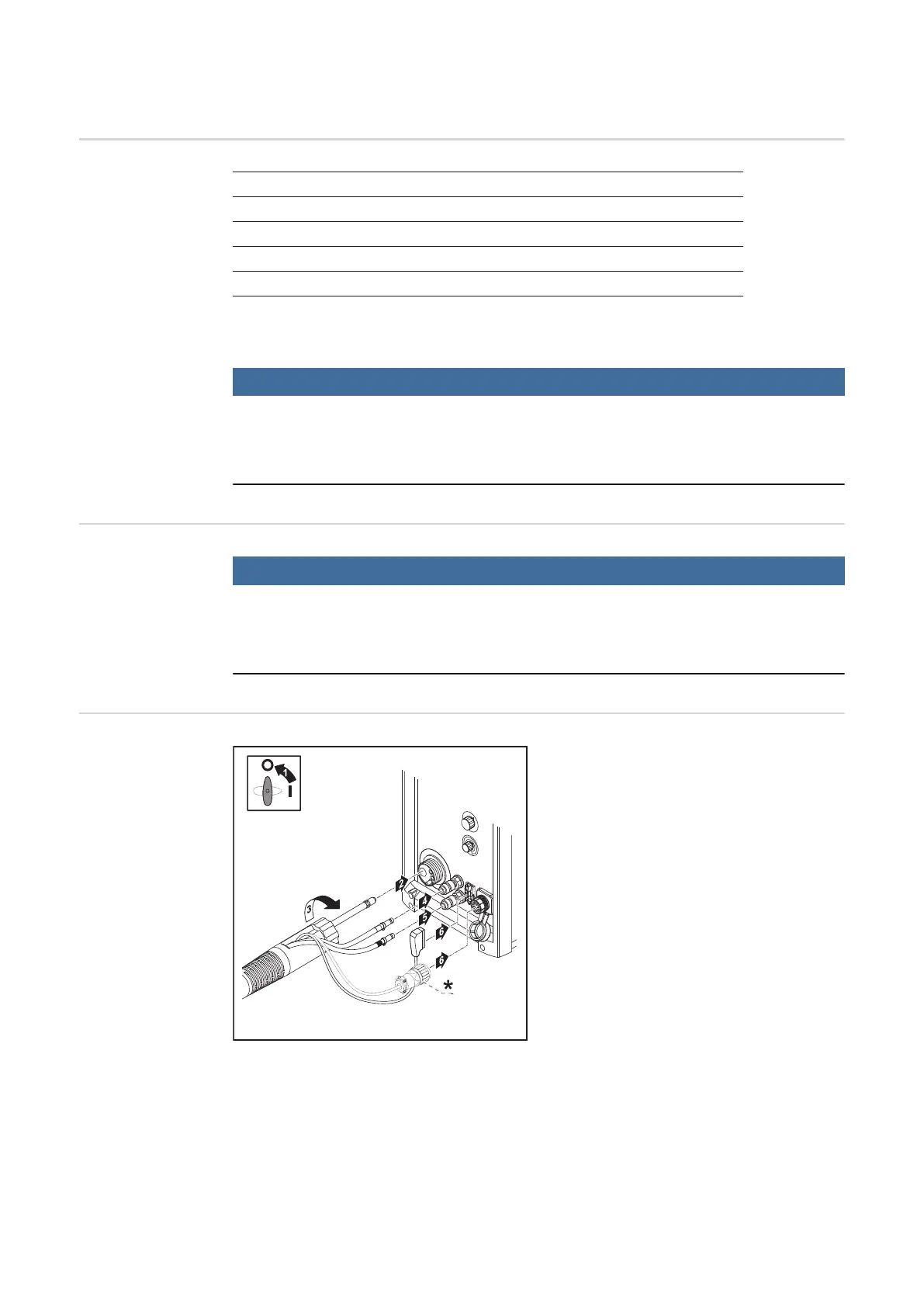

Connecting the welding torch
Welding torch
connections
(X) ... up to max 500 A
NOTE!
When using a welding current over 500 A, only operate wirefeeders VR 7000-11 and
VR 7000-30 with Fronius welding torches that are adequately dimensioned for the
welding torch F++ connection.
Safety
NOTE!
When connecting the welding torch, check that
► all connections are connected properly
► all cables, leads and hosepacks are undamaged and correctly insulated.
Connecting MIG/
MAG manual
welding torch
* The MIG/MAG manual welding torch con-
trol plug comes in two versions:
- as a "Tuchel" plug
- as a LocalNet plug, e.g. on JobMaster
welding torches
Fronius F++ Euro connection for Dinse
VR 7000 X X X
VR 7000-11 X (X) -
VR 7000-30 X (X) -
VR 7000 CMT X - -
