Controls and indicators
General
WARNING!
Operating the equipment incorrectly can cause serious injury and damage.
Do not use the functions described here until you have fully read and understood the fol-
lowing documents:
► These operating instructions
► all the operating instructions for the system components, especially the safety rules
Setting parameters at control panels is only possible in manual welding mode.
In the automated welding mode or in robot welding, the robot control provides the set val-
ues for the welding parameters. Specifying command values via control panels is not pos-
sible in automated welding mode or in robot welding.
IMPORTANT!
Welding parameters that must be entered on a wire-feed unit control panel cannot
be changed on the power source.
Welding parameters can only be changed on the wire-feed unit.
Standard control
panel

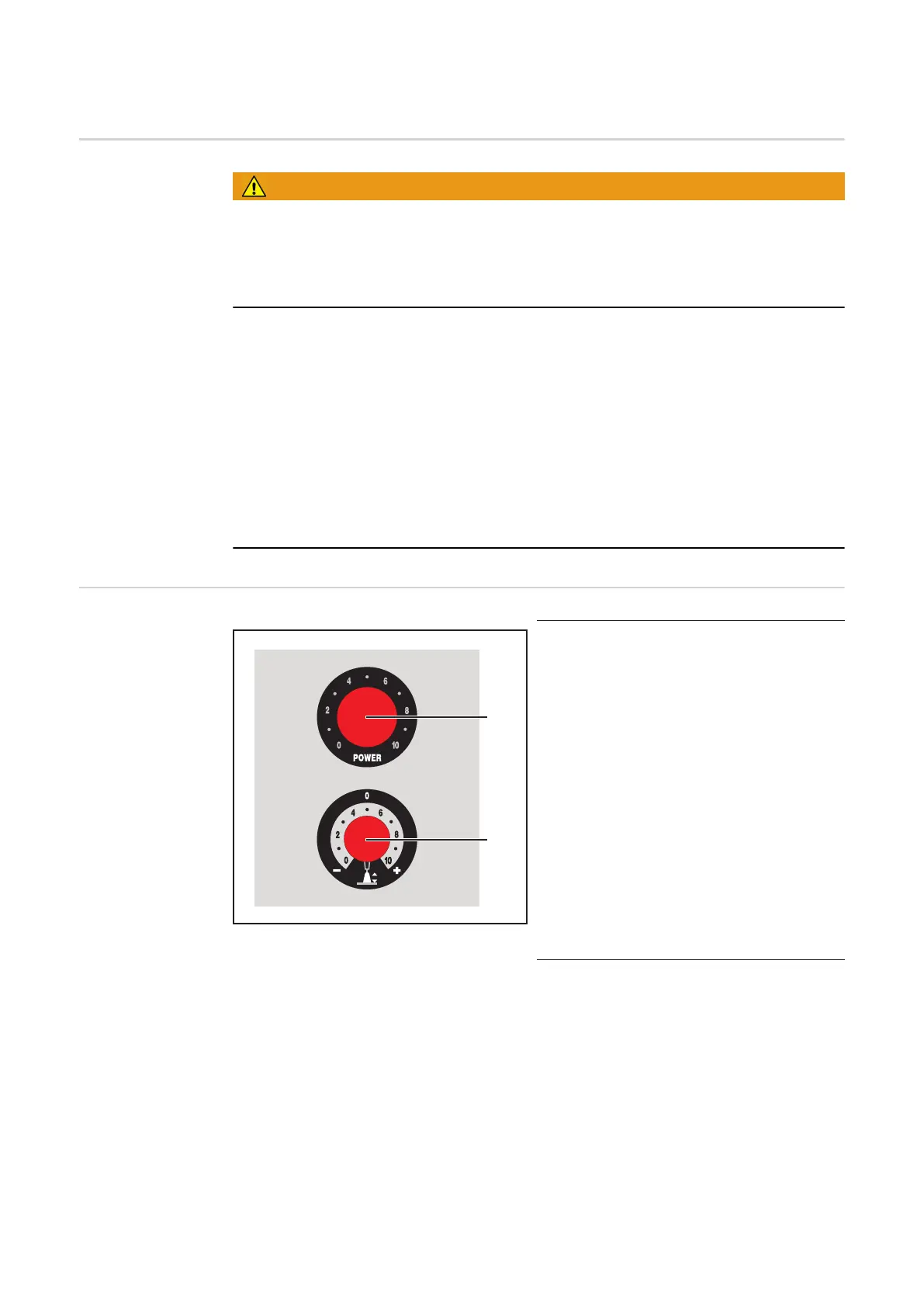

Standard control panel
(1) Welding power/wire speed adjust-
er
- Setting the welding power
(during MIG/MAG pulse synergic
welding, MIG/MAG standard
synergic welding)
- Setting the wire speed
(during MIG/MAG standard man-
ual welding)
(1)
(2)
To Next Page
