Fronius VR 7000 CMT User Manual

24
Connections and mechanical components

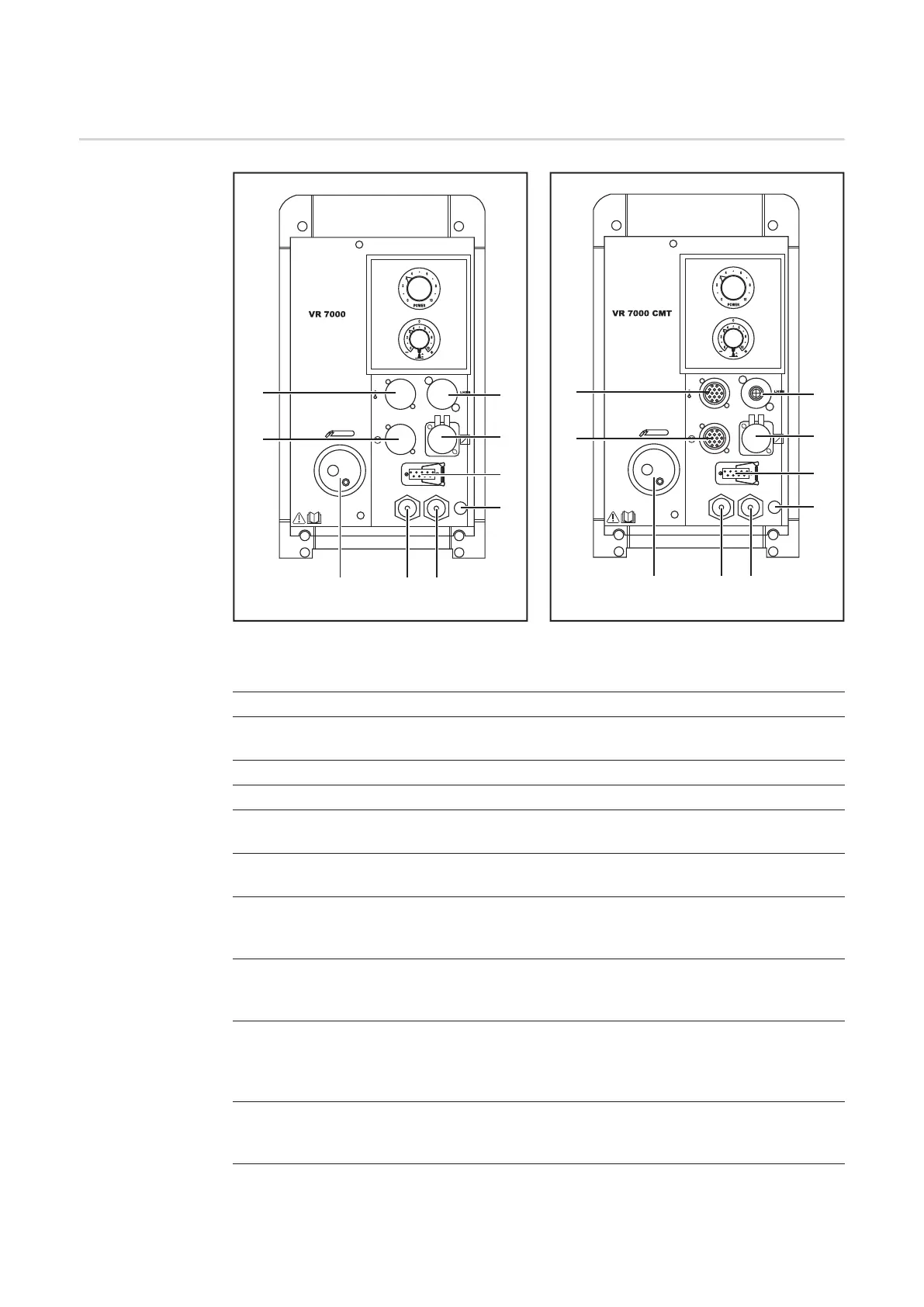

Front of wirefeed-
er
VR 7000 / VR 7000-11 / VR 7000-30 VR 7000 CMT
(2)(1) (3)
(8)
(6)
(5)
(4)
(7)
(9)
(2)(1) (3)
(8)
(6)
(5)
(4)
(7)
(9)
Item Description
(1) Welding torch connection
for connecting the welding torch
(2) Water return connection (red)
(3) Water flow connection (blue)
(4) Blanking cover
HighEnd blow-off option
(5) Torch control connection
for connecting the torch control plug
(6) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, JobMas-
ter torch, etc.)
(7) Blanking cover on VR 7000, VR 7000-11, VR 7000-30
Wire buffer connection on VR 7000 CMT
4-pin amphenol socket for connecting the wire buffer
(8) Blanking cover on VR 7000, VR 7000-11, VR 7000-30
LHSB CMT drive unit connection on VR 7000 CMT
for connecting the LHSB cable from the welding torch, incl. power supply of the
CMT drive unit
(9) Blanking cover on VR 7000, VR 7000-11, VR 7000-30
Connection for Robacta Drive option, 14-pin amphenol socket
(standard on VR 7000 CMT)
