CHARGING THE BATTERY (continued)

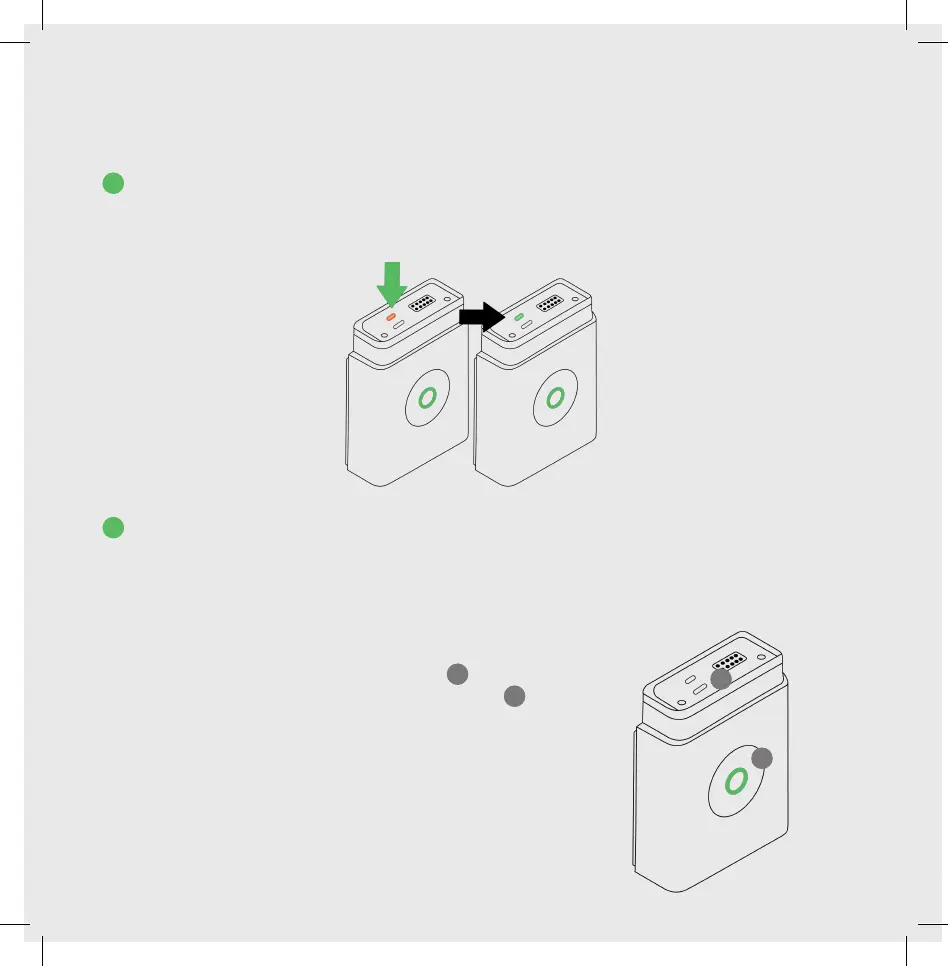

4. The charging LED, found on the top of the battery, will be solid orange while the
device is charging. The charging LED will turn solid green when the battery is
fully charged. (A fully depleted battery will take approximately 12-14 hours to recharge.)
5. When the charging LED turns solid green, re-attach the battery to the Wireless
Doorbell Camera and install the camera onto the mount. Move the latch on the
bottom of the mount to the locked position after installing the battery.
LED REFERENCE GUIDE
The Charging LED (shown to the right as
1
) and
the Doorbell Button LED (shown to the right as
2
)
use specific colors and behavior to convey meaning.
Refer to page 21 to better understand the LED
behaviors when charging the battery, or page 22
for reference on when the camera is assembled and
operational.
4
5
LED behavior when charging the battery:
Mode Description
Charging LED
Behavior
Doorbell Button
LED Behavior
Charging
The battery is plugged in and
charging.
Solid orange
When Doorbell Button is
pressed: Solid green=
>75% charged
Solid yellow= 75%-15% charged
Alternating red and blue=
< 15% charged
Fully
Charged
The battery is fully charged.
Solid green When Doorbell Button is
pressed: Solid green
Failure
Charging
The battery stopped charging
because the battery was plugged
in for too long. This may signal that
there is an issue with the battery.
Remove the charging cable and
re-attempt charging after an hour.
If you see the same behavior,
please contact Frontpoint
Support.
Alternating orange
and green
Alternating red and white
Under
Temperature
The battery’s internal
temperature is either too hot or
too cold.
Please charge the battery in a
room temperature setting.
Solid green or solid
orange
Alternating yellow and red
