N8000-32Q switch has 5 fans in standard configuration.

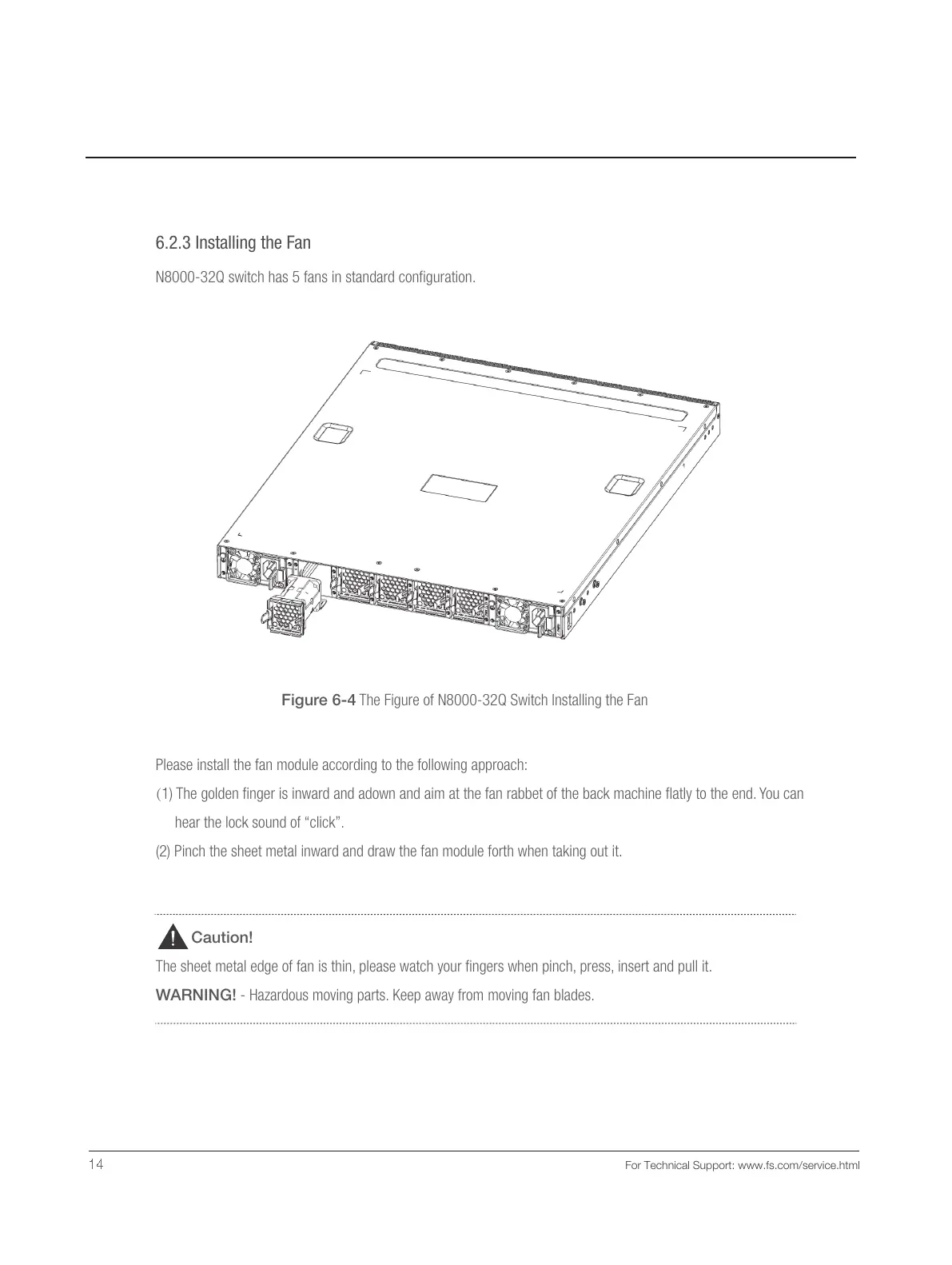

Figure 6-4 The Figure of N8000-32Q Switch Installing the Fan
Please install the fan module according to the following approach:
(
1) The golden finger is inward and adown and aim at the fan rabbet of the back machine flatly to the end. Y
ou can
hear the lock sound of
(2) Pinch the sheet metal inward and dr
aw the fan module forth when taking out it.
Caution!
The sheet metal edge of fan is thin
, please watch your fingers when pinch, press, insert and pull it.
WARNING! - Hazardous moving parts. Keep away from moving fan blades.
