FSI SLUG PRO - Flow Control Assembly: Round-Style

PRODUCTION AND QUALITY CONTROL
65

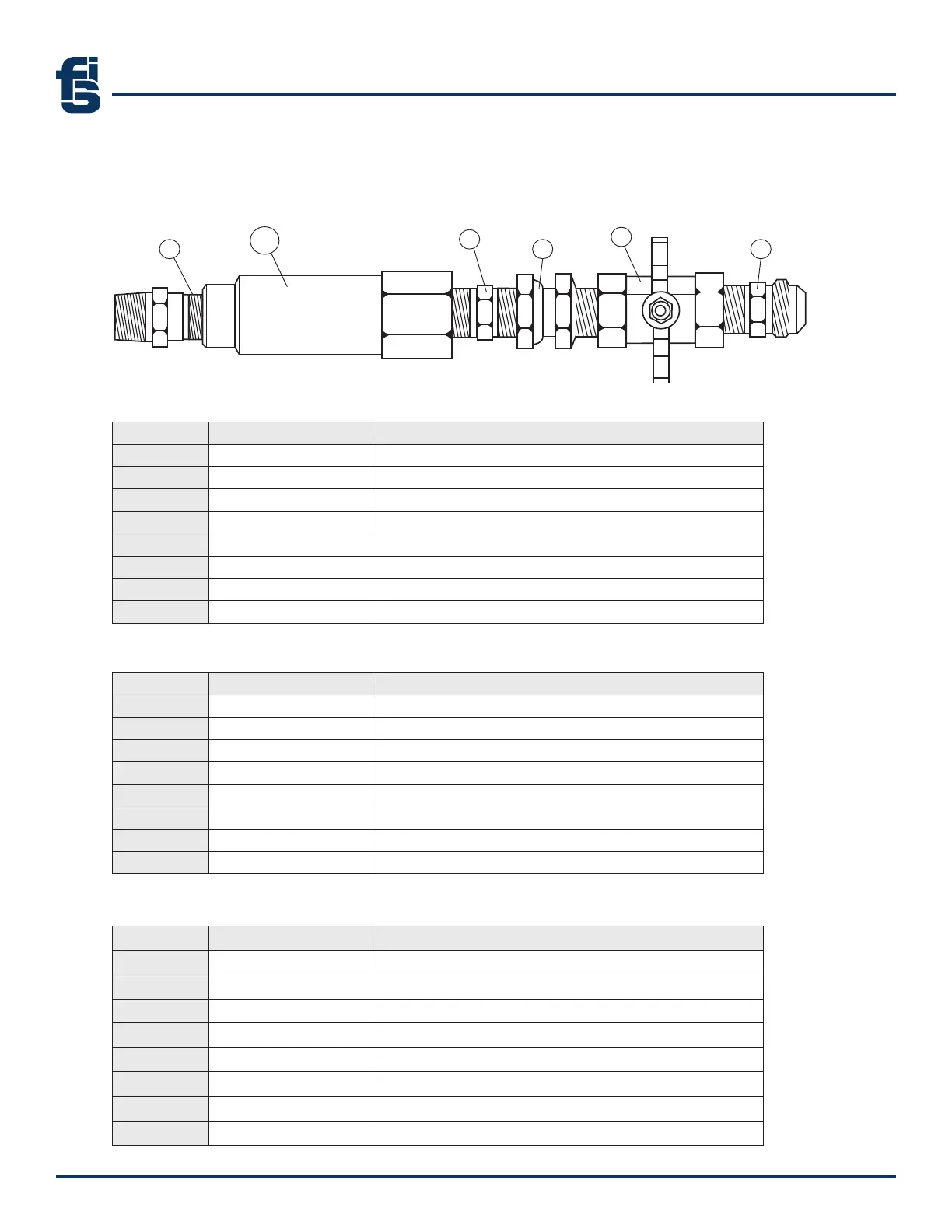

FLOW CONTROL ASSEMBLY (ROUND-STYLE)
ITEM # PART # DESCRIPTION
1
C12 ½" Check Valve
2
C45A A-SIDE 45-PPM Flow Controller
2
C45B B-SIDE 45-PPM Flow Controller
3
TF60005 ½" Hex Nipple
4
NU11 ½" FPT Swivel x ½" MPT
5
SL18 ½" Ball Valve
6
M29
½ " MPT x
3
/4" JIC
7
SL33 Includes Item #4, #5, #6
ITEM # PART # DESCRIPTION
1
C12 ½" Check Valve
2
C60A A-SIDE 60-PPM Flow Controller
2
C60B B-SIDE 60-PPM Flow Controller
3
TF60005 ½" Hex Nipple
4
NU11 ½" FPT Swivel x ½" MPT
5
SL18 ½" Ball Valve
6
M29 ½ " MPT x
3
/4" JIC
7
SL33 Includes Item #4, #5, #6
ITEM # PART # DESCRIPTION
1
C12 ½" Check Valve
2
C30A A-SIDE 30-PPM Flow Controller
2
C30B B-SIDE 30-PPM Flow Controller
3
TF60005 ½" Hex Nipple
4
NU11 ½" FPT Swivel x ½" MPT
5
SL18 ½" Ball Valve
6
NU10
½ " MPT x
5
/8" MJIC
7
SL32 Includes Item #4, #5, #6
1
2A,B
3
4 6
5
OUTPUT OF FLOW CONTROLLER CAN VARY. PLEASE ORDER CAREFULLY.
45-PPM FLOW CONTROLLER
60-PPM FLOW CONTROLLER
30-PPM FLOW CONTROLLER
