FSI SLUG PRO - Filter Assembly

PRODUCTION AND QUALITY CONTROL
69

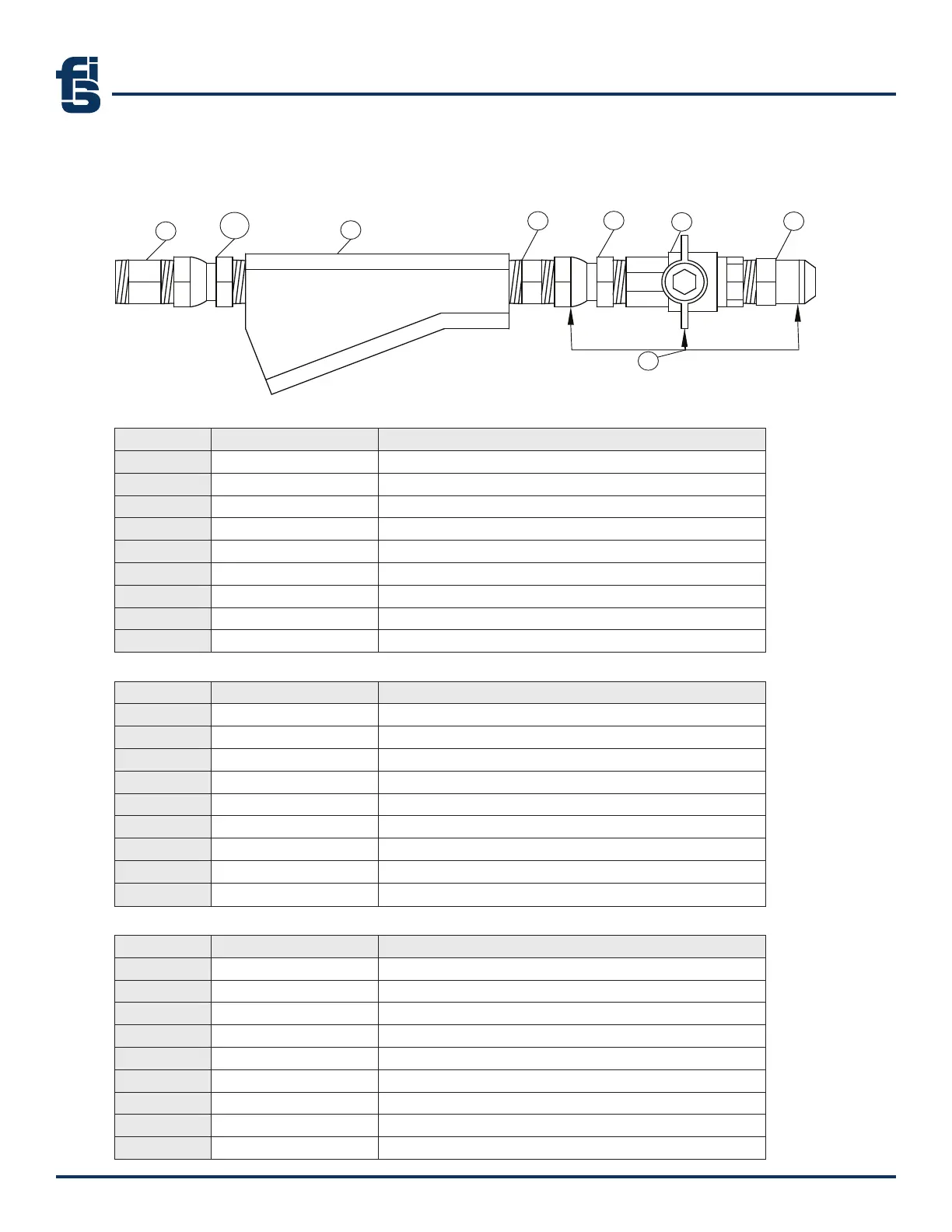

FLOW CONTROL ASSEMBLY (Y-STYLE)
OUTPUT OF FLOW CONTROLLER CAN VARY. PLEASE ORDER CAREFULLY.
1
2A,B
3
4
6
7
5
8
ITEM # PART # DESCRIPTION
1
C12 ½" Check Valve
2
NU11 ½" FPT Swivel x ½" MPT
3
SL2-FCR60 Y Flow Controller (ISO) Red
3
SL2-FCB60 Y Flow Controller (Poly) Blue
4
TF60005 ½" Hex Nipple
5
NU11 ½" FPT Swivel x ½" MPT
6
SL18 ½" Ball Valve
7
M29 ½ " MPT x
3
/4" JIC
8
SL33 Includes Item #5, #6, #7
ITEM # PART # DESCRIPTION
1
C12 ½" Check Valve
2
NU11 ½" FPT Swivel x ½" MPT
3
SL2-FCR45 Y Flow Controller (ISO) Red
3
SL2-FCB45 Y Flow Controller (Poly) Blue
4
TF60005 ½" Hex Nipple
5
NU11 ½" FPT Swivel x ½" MPT
6
SL18 ½" Ball Valve
7
M29
½ " MPT x
3
/4" JIC
8
SL33 Includes Item #5, #6, #7
ITEM # PART # DESCRIPTION
1
C12 ½" Check Valve
2
NU11 ½" FPT Swivel x ½" MPT
3
SL2-FCR30 Y Flow Controller (ISO) Red
3
SL2-FCB30 Y Flow Controller (Poly) Blue
4
TF60005 ½" Hex Nipple
5
NU11 ½" FPT Swivel x ½" MPT
6
SL18 ½" Ball Valve
7
NU10
½ " MPT x
5
/8" MJIC
8
SL32 Includes Item #5, #6, #7
60-PPM FLOW CONTROLLER
45-PPM FLOW CONTROLLER
30-PPM FLOW CONTROLLER
