FTDI LibFT4222 - Scope; Figure 1.4 Mode 2: FT4222 H Works as SPI Master

Application Note
AN_329 User Guide For LibFT4222
Version 1.5
Document Reference No.: FT_001060 Clearance No.: FTDI#406
7
Product Page
Document Feedback Copyright © Future Technology Devices International Limited

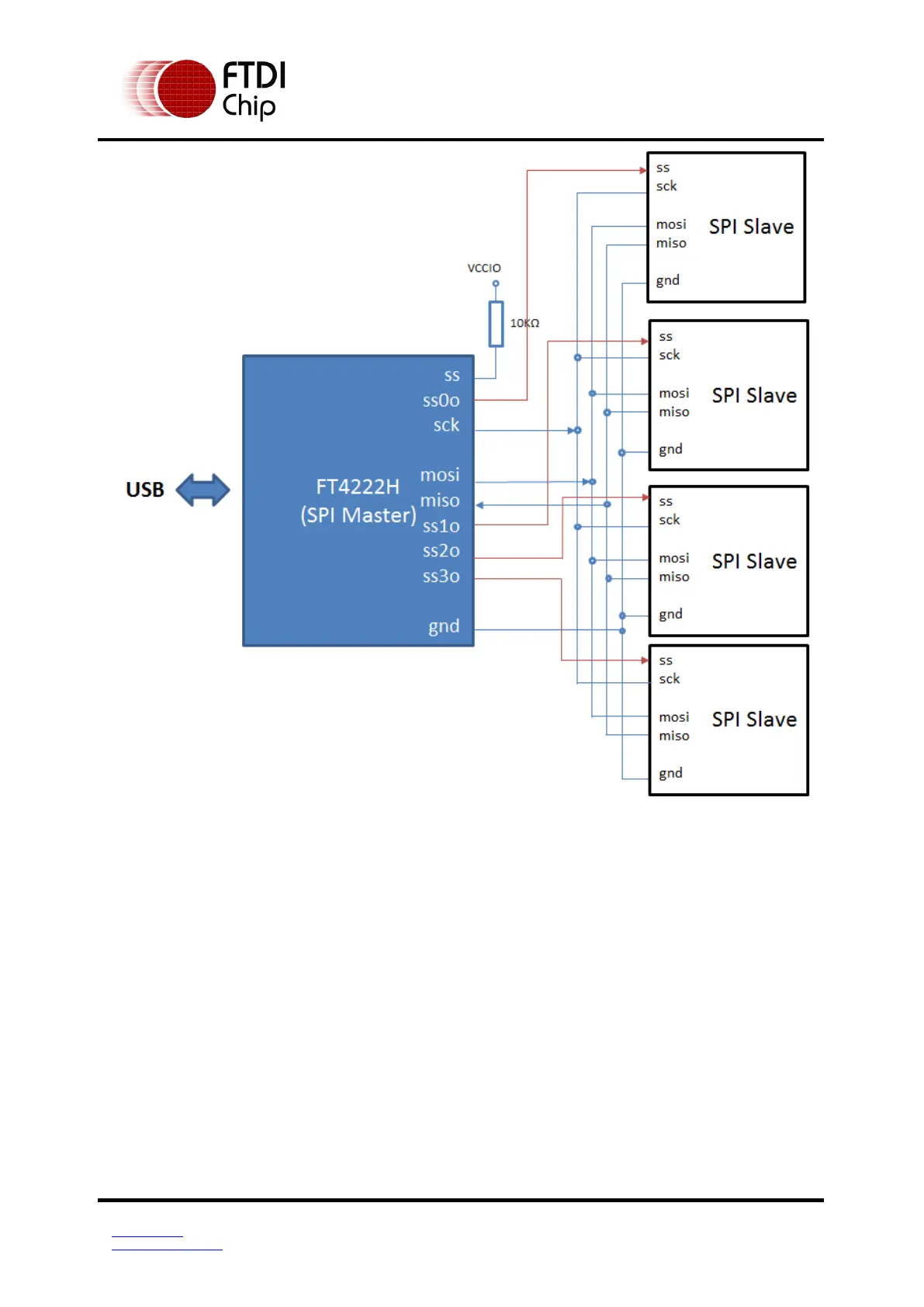

Figure 1.4 Mode 2: FT4222H works as SPI Master
1.2 Scope
The guide is intended for developers who are creating applications, extending FTDI provided
applications or implementing FTDI’s applications for the FT4222H.
