1-4

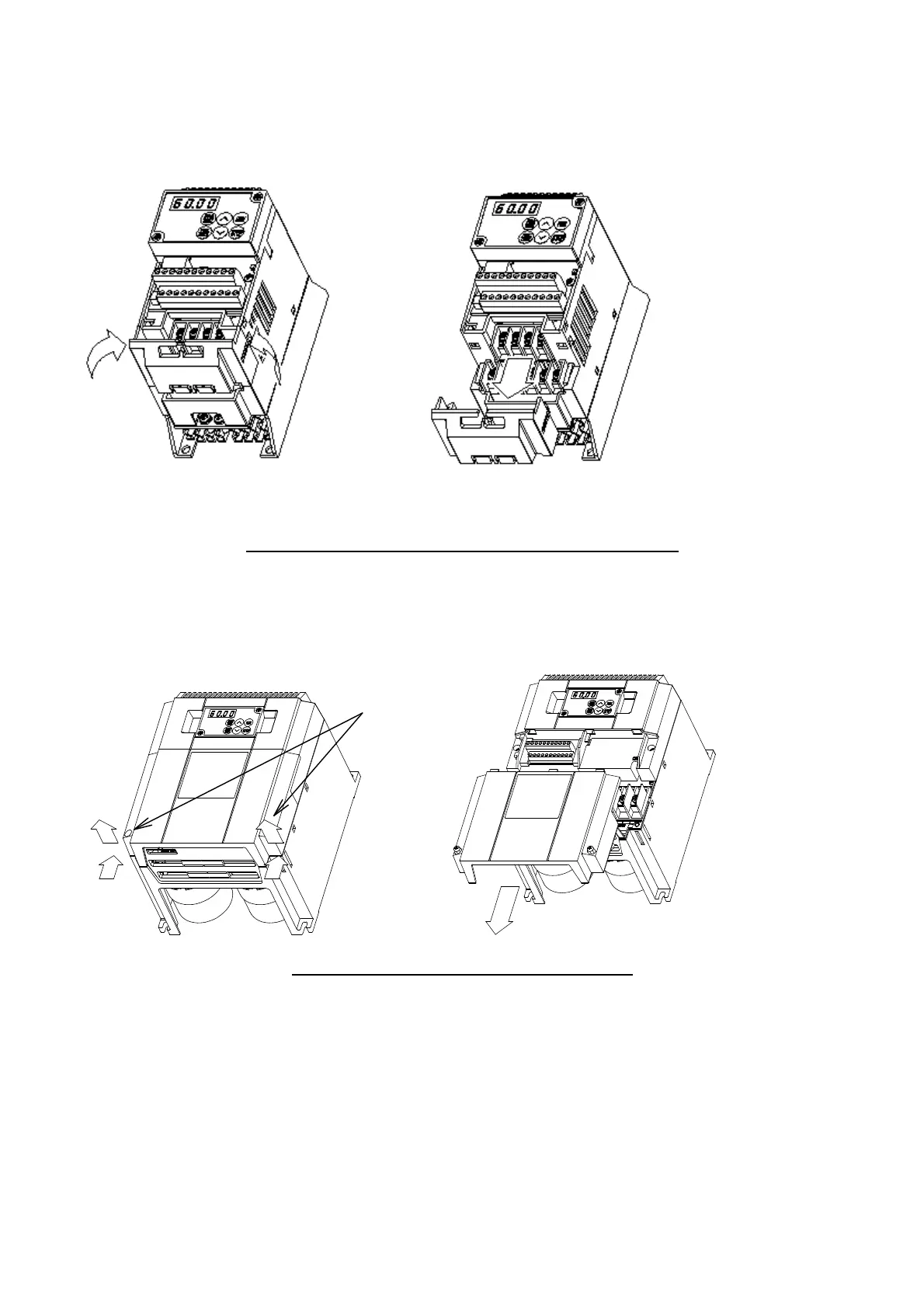

(2) Removing the main circuit terminal block cover(4.0kW or below)
While lightly pushing the sides of the main circuit terminal block cover at the catches, slide toward
you in the procedure shown in Fig. 1-3-2 to remove it.
Fig. 1-3-2 Removing the main circuit terminal block cover
(3) Removing the terminal block cover(5.5,7.5kW )
Loose the screws indicated below and while lightly pushing the sides of the terminal block cover at
the catches, lift the cover in the procedure shown in Fig. 1-3-3 to remove it.
①
①①
① ①
①①
①
②
②②
② ②
②②
②
③
③③
③
Fig. 1-3-3 Removing the terminal block cover
screws
