Fuji Electric FVR-E11S-7EN - Page 48

5-18
F15

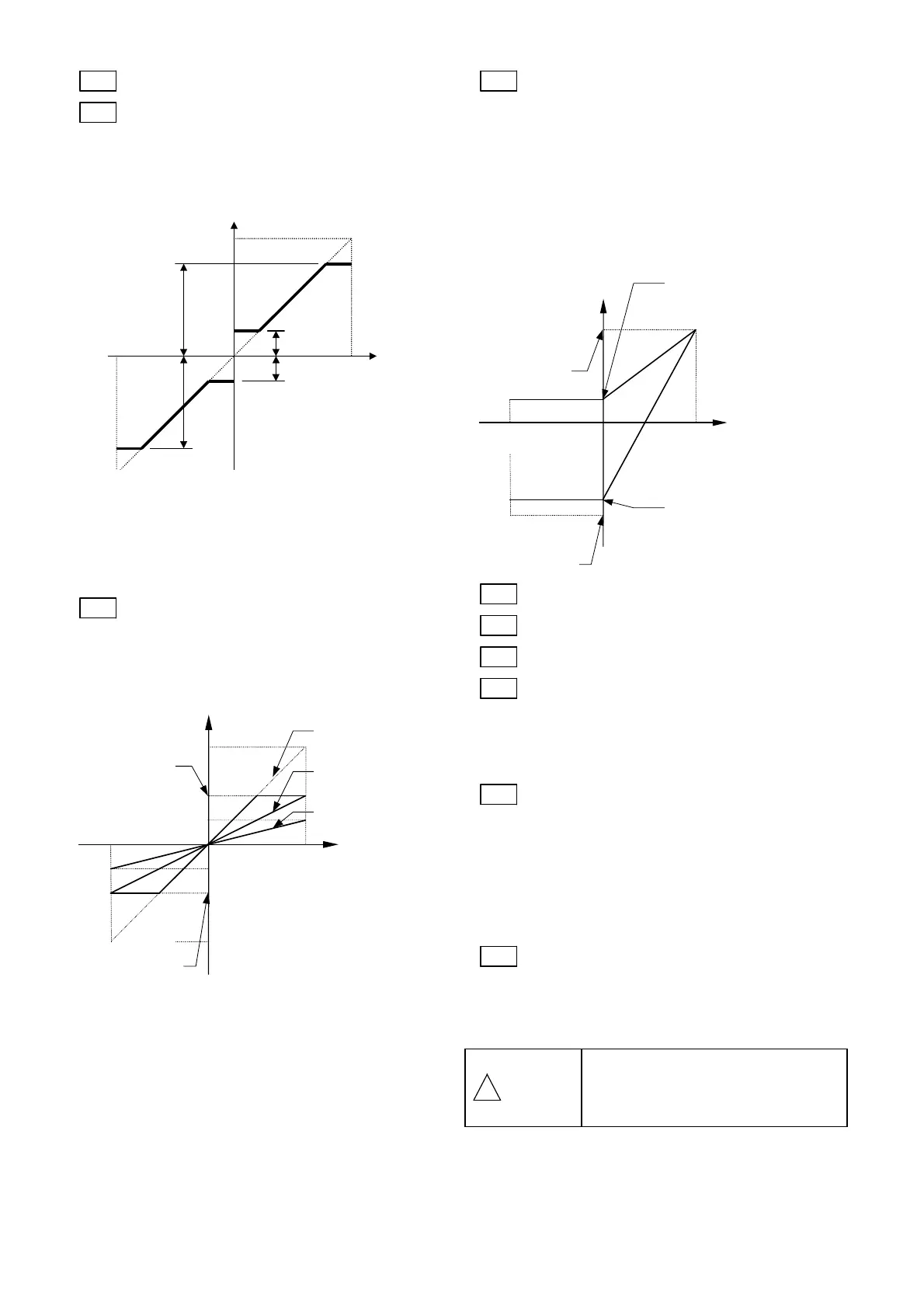

Frequency limiter (High)
F16 Frequency limiter (Low)
 Set the upper and lower limits of the frequency
setting.
Setting range: 0 to 400 Hz
*The starting frequency is output when the inverter
starts operation, and the stopping frequency is
output when it stops operation.
*(Low limit) > (High limit) ... Priority is given to the
High limit value.
F17 Gain (Frequency setting signal)
◆ Set the ratio of the frequency setting in relation
to the analog input.
The operation is as shown in the figure below.
4 20
［
mA
］
-10[v] 0 +10
［
V
］
Frequency setting
Analog input
Terminal
【
12
】
Terminal
【
C1
】
２００％
１００％
５０％
+ Maximum
output frequency
- Maximum
output frequency
F18 Bias frequency
This function obtains the frequency setting from
addition of the frequency setting in relation to
the analog input and a bias frequency. The
operation is as shown in the figure below.
However, if the bias frequency is larger
(smaller) than the maximum frequency (-
maximum frequency), the limit is set at the
maximum output frequency (- maximum output
frequency).
4 20［mA］
-10[v] 0 +10
［
V
］
Frequency setting
Analog input
Terminal
【
12
】
Terminal【C1】
Bias frequency
(positive)
Bias frequency
(negative)
Maximum output
frequency
- Maximum
output frequency
F20 DC brake (Starting frequency)
F21 DC brake (Braking level)
F22 DC brake (Braking time)
F20
 Starting frequency: Set the frequency at which
the DC brake starts operation during
deceleration and stop.
Setting range: 0.0 to 60.0 Hz
F21
 Braking level: Set the output current level during
DC braking. The level can be set in an
increment of 1% of the rated inverter output
current.
Setting range: 0 to 100%
Actual minimum level is fixed to 5% even if this
function set from 1 to 5% for 5.5/7.5E11S-4EN.
F22
 Braking time: Set the operation time of DC
braking.
Setting range: 0.0 Inactive
0.1 to 30.0 s
！
！！
！
CAUTION
The brake function of the inverter
does not insure the function of a
mechanical latch.
Injuries could occur.
Lower limit
value
Lower limit
value
Upper limit value
Upper limit
value
Frequency
setting
Frequency setting
+ Maximum frequency
+100%
－100%
Frequency
setting
