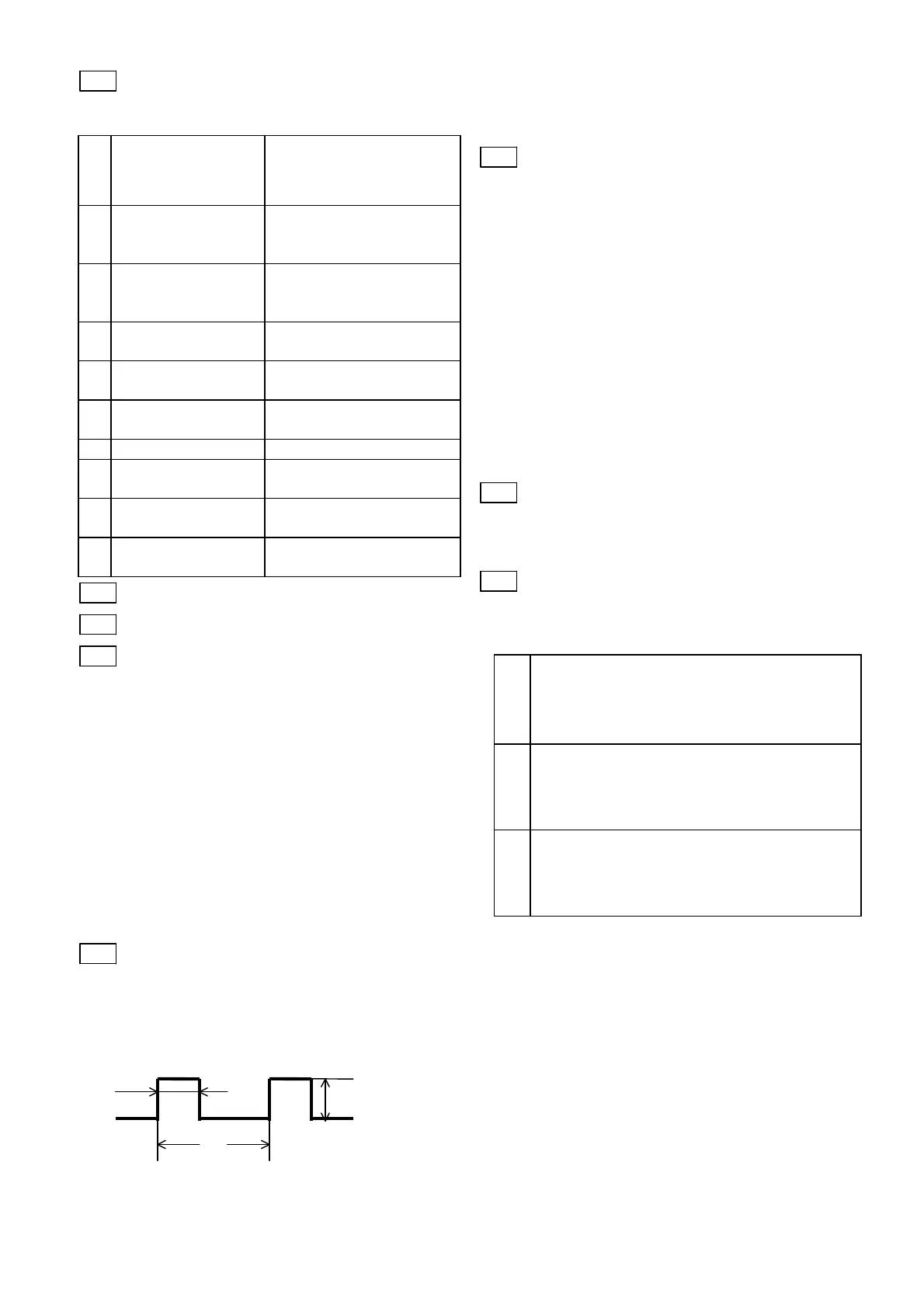

5-20
F31
Select the monitoring item to be output at the
FM terminal.
Setting
Target of
monitoring
Definition of 100% of
monitoring amount
0
Output frequency 1
(before slip
compensation)
Maximum output
frequency
1
Output frequency
2 (after slip
compensation)
Maximum output
frequency
2
Output current 2 times rated inverter
output current
3
Output voltage 250V (200V class) ,
500V (400V class)
4
Output torque 2 times rated motor
torque
5
Load factor 2 times rated motor load
6
Input power 2 times rated inverter
output
7
PID feedback
value
100% feedback value
8
DC link circuit
voltage
500V (200V class)
1000V (400V class)
F33 FMP (Pulse rate)
F34 FMP (Voltage adjust)
F35 FMP (Function)
The output frequency, output current and other
monitor data can be output at the FM terminal in
pulse voltages. The average voltage can be
connected to an analog meter.
To select the pulse output and connect a digital
counter or the like, set the F33 pulse rate to a
desired value and set the F34 voltage to 0%.
To select the average voltage and connect an
analog meter, set the F34 voltage to determine
the average voltage; the F33 pulse rate is fixed at
2670 [p/s].
Note) To use the FM terminal for the pulse output,
set F29 to "1" and set SW1 on the control
board to the FMP side.
F33
Set the pulse frequency corresponding to 100
[%] of the monitoring amount of the monitoring
item selected by F35 in a range from 300 to
6000 [p/s].
Setting range: 300 to 6000 [p/s]
Pulse period [p/s] = 1/T
Duty [%] = T1/T X 100
Average voltage [V] = 15.6 X T1/T
F34
Set the average voltage of the pulse output at
the FM terminal.
Setting range: 0 to 200 [%]
However, if "0" is set, the pulse frequency
varies according to the monitoring amount of
the monitoring item selected at F35 (with the
maximum value being the F33 setting). If a
value between 1 and 200 is set, the pulse
frequency is fixed at 2670 [p/s]. The average
voltage corresponding to 100 [%] of the
monitoring amount of the monitoring item
selected at F35 is adjusted in a range between
1 and 200 [%] (in an increment of 1 [%]). (The
duty of the pulse changes.)
Note : FMP has approx. 0.2V offset voltage even
if FMP outputs zero value.
F35
Select the monitoring item to be output at the FM
terminal. The options to be selected are the same
as F31.
F36 30Ry operation mode
Select whether the alarm output relay (30Ry) of
the inverter is activated (excited) during normal
operation or during a trip.
Setting
Description of operation
0
During normal operation 30A－30C：OFF
30B－30C：ON
Upon a trip 30A－30C：ON
30B－30C：OFF
1
During normal operation 30A－30C：ON
30B－30C：OFF
Upon a trip 30A－30C：OFF
30B－30C：ON
Note) Because the contact between 30A and 30C
is on after the inverter is turned on (after
about 1 second since the power is turned
on) when the setting is "1", care must be
taken to the sequence design.
Approx. 15.6 [V]
T
(Pulse period)
