132 7 Maintenance

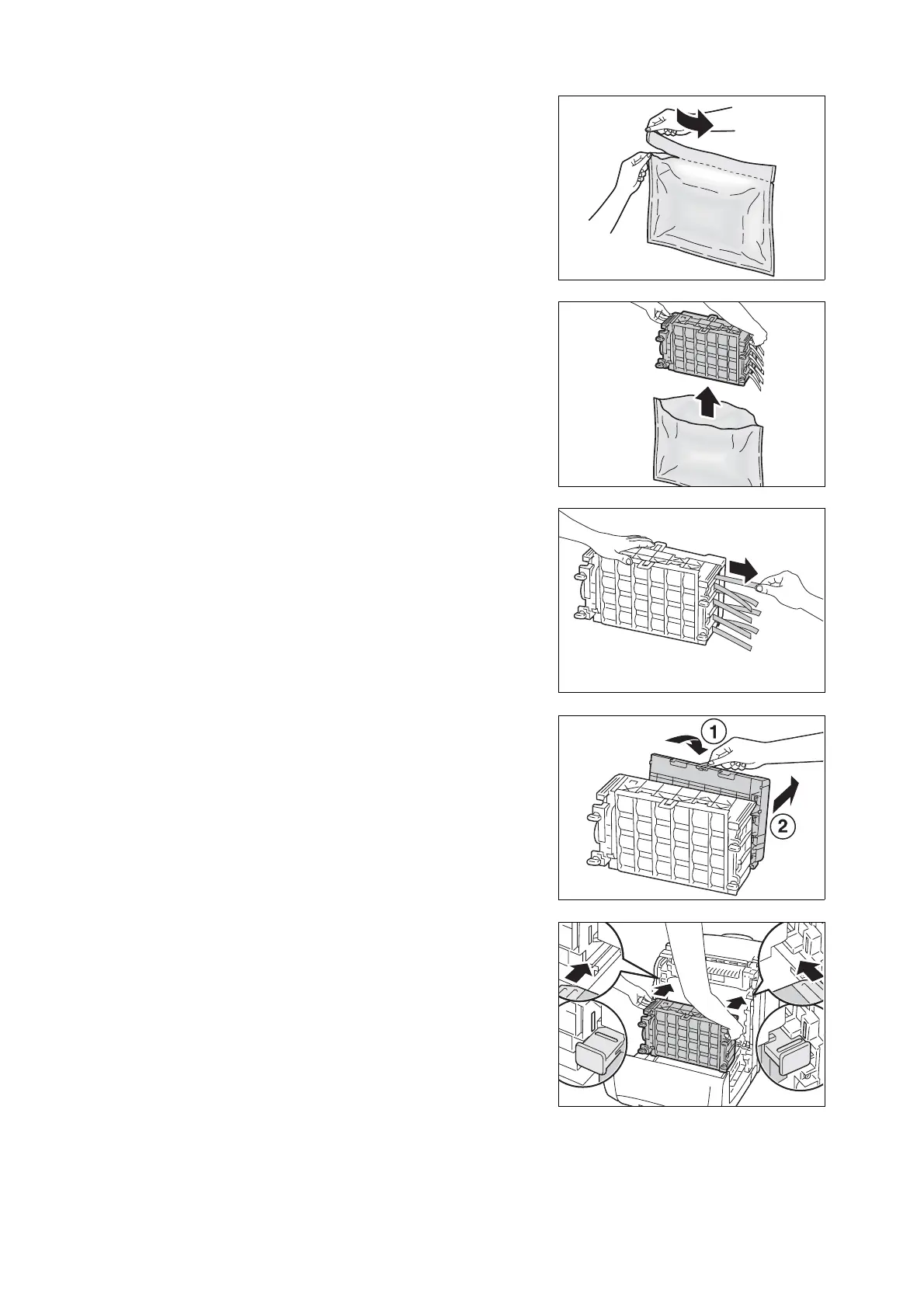

6. Open the bag containing the new Drum
Cartridge.
7. Remove the new Drum Cartridge from the
bag.
8. Slowly remove the eight yellow ribbons
projecting from the side of the Drum
Cartridge.
Important
• Pull the ribbons straight out. If you remove the ribbons
at an angle, they may break.
Note
• The length of four of the ribbons differs from the length
of the other four ribbons.
9. While holding the top of the rear protective
cover, remove the cover from the Drum
Cartridge.
Important
• Remove the front protective cover from the Drum
Cartridge after installing the Drum Cartridge in the
printer. Do not remove it yet.
10. While holding the gray sections of the Drum
Cartridge, align the Drum Cartridge with the
grooves of the printer, and insert the Drum
Cartridge. Press the Drum Cartridge
securely into place, and confirm that the
lines of the Drum Cartridge are aligned with
the lines of the printer.
