192 Troubleshooting
Identifying the Location of Paper Jams
IMPORTANT:
• Do not attempt to clear any jams using tools or instruments. This may permanently damage the printer.

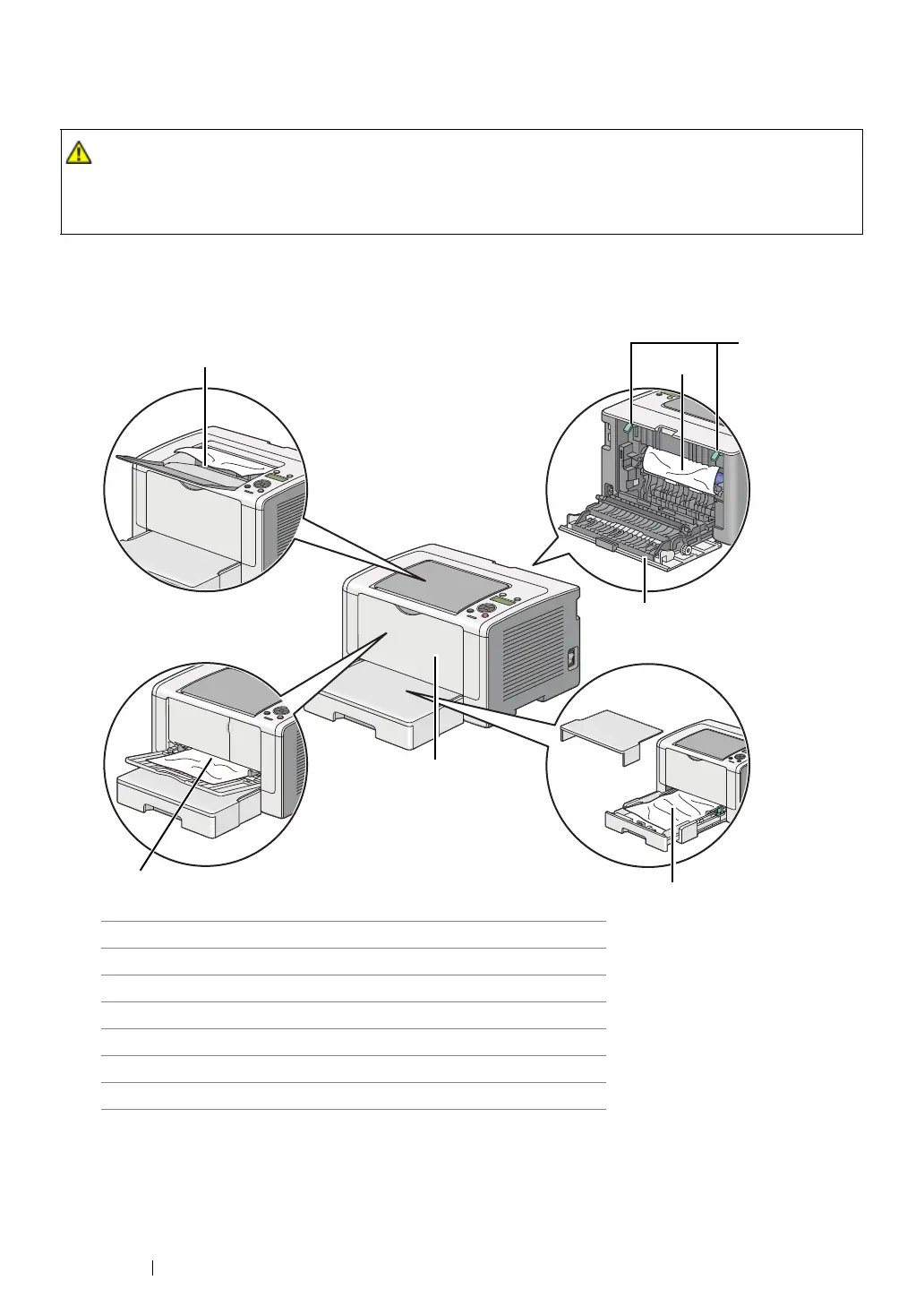

The following illustration shows where paper jams may occur along the print media path.
• Do not attempt to remove a paper deeply jammed inside the product, particularly a paper wrapped
around the fusing unit or the heat roller. Otherwise, it may cause injuries or burns. Switch off the
product immediately and contact your local Fuji Xerox representative.
1 Center Output Tray
2OPC Drum
3 Levers
4 Rear Cover
5 Front Cover
6 Paper Tray
7 Priority Sheet Inserter (PSI)
To Next Page
