6. Before-Side-Positioning Conveyor
This section describes procedures for removing and reinstalling the before-side-positioning
conveyor, and procedures for checking and replacing parts of the before-side-positioning
conveyor to be replaced.
Unless otherwise specified, it is assumed that covers that should be removed prior to checks
and replacement have been removed.
“3. Removing and Reinstalling Covers”
6.1 Removing and Reinstalling Before-Side-Positioning
Conveyor
■ Removal
(1) Shift the two tensioners until the timing belt can be removed.
Loosen the two screws (BR M4x8) that retain the tensioner to slide the tensioner as
appropriate, and then secure the tensioner in place.
“3.4 Tensioner Not Requiring Tension Adjustment” in Machine Description
(2) Remove the two timing belts.
(3) Disconnect the connectors (CNC1, CNC2, CNSOLC1).
(4) Remove the two screws that retain the before-side-positioning conveyor
(5) Pull out the before-side-positioning conveyor horizontally.
Slowly pull out the unit so that it is not caught by the connectors (CNC1, CNC2,
CNSOLC1).

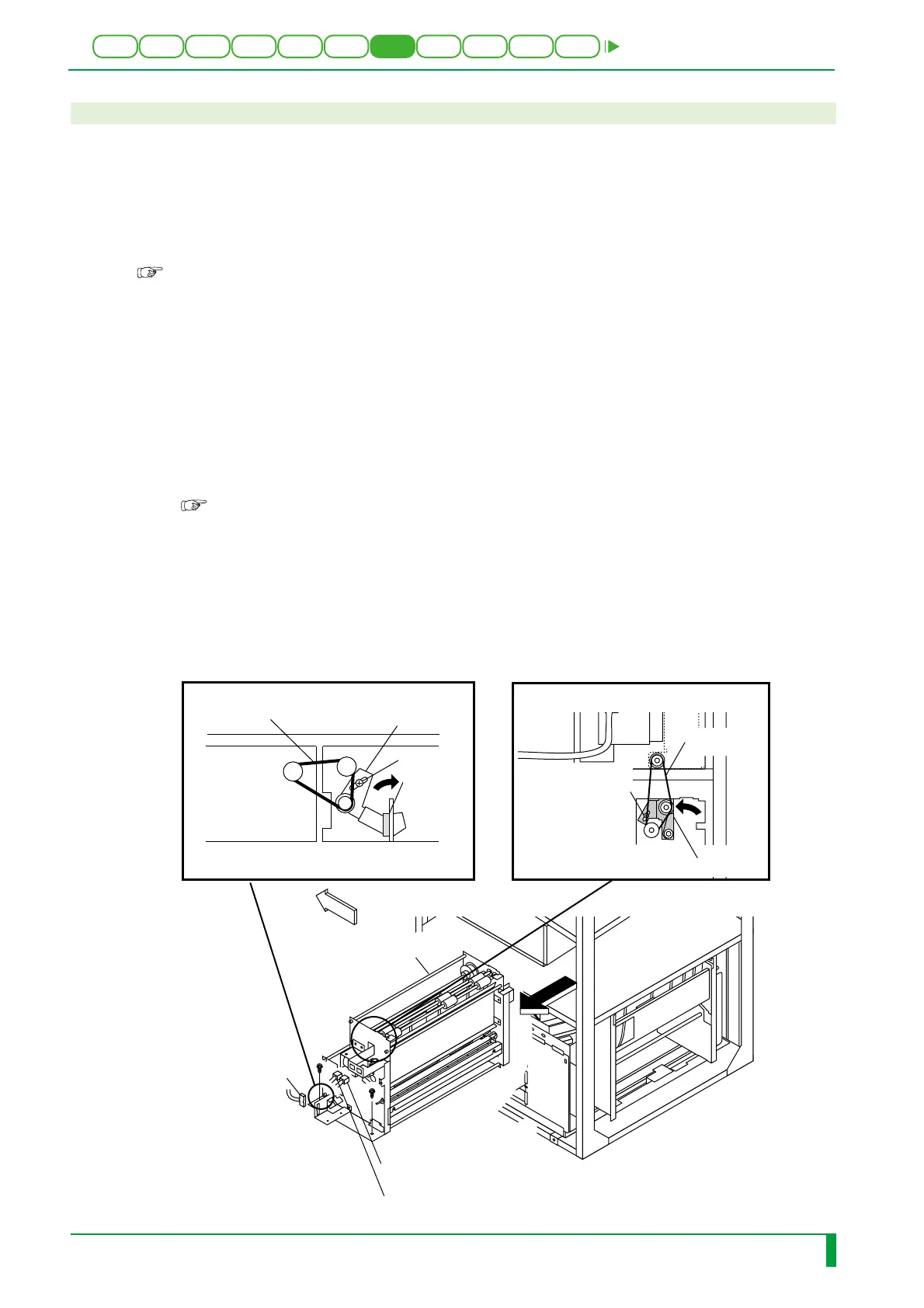

FRONT
CNC1
Erasure conveyor
Before-side-
positioning conveyor
CNC1
Timing belt
Tensioner
BR M4x8
Up-down IP removal
FR1H1109.EPS
Before-side-
positioning conveyor
Before-side-
positioning conveyor
BR M4x8, x2
(4)
(3)
(3)
CNSOLC1
CNC2
(3)
(5)
Timing belt
Tensioner
BR M4x8
(1), (2)
(1), (2)
