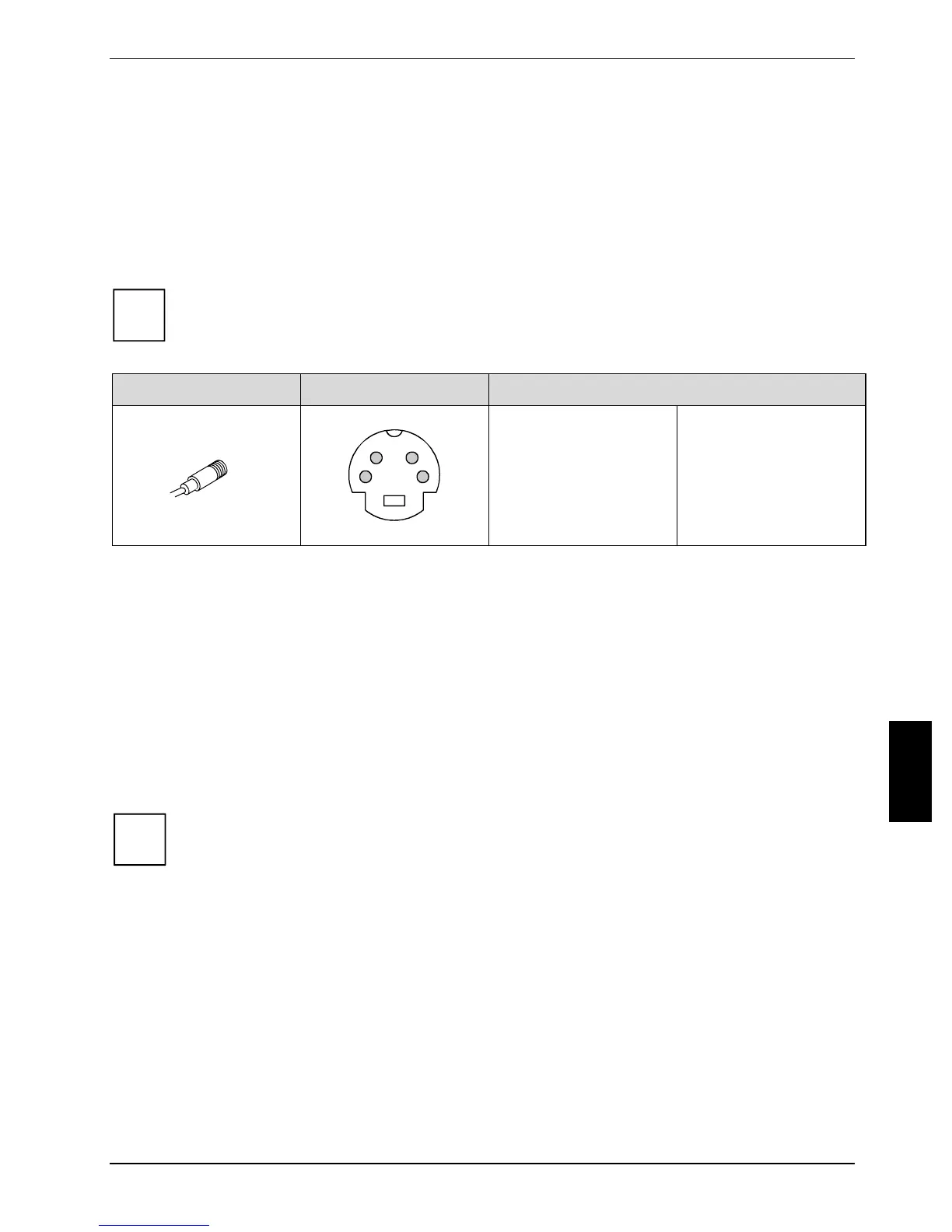

Connecting external devices
10600690568, edition 1 53
Connecting an external device to S-Video Out
You can connect an external device (e.g. a TV) to the S-Video Out socket of your notebook to view
films from DVDs, photos or presentations etc.
Switch off the notebook and the external device.
Connect the external device to the S-Video Out socket of your notebook.
First switch the external device on and then the notebook.
i
If you purchase a cable from a retailer, please note the following information:
The S-Video Out socket on your notebook is a "4-pin Hosiden input", also called a "4-pin
mini DIN". The plug needed for this connection is a "Hosiden connector".
Connectors Port Pin configuration
1
2
34
Position
1
2
3
4
Meaning
Y retur
C retur
Y
C
Activating television set
Select the monitor type in the menu Start - Control Panel - Appearance and Themes - Display -
Settings - Advanced - Monitor.
Click on Apply.
Connecting FireWire devices
External devices such as digital audio/video devices or other high-speed devices can be connected
to the FireWire port. The FireWire port operates at a speed of 400 Mbit per second.
i
FireWire devices are hot-pluggable. Therefore, the cables of FireWire devices can be
connected and disconnected with the system switched on.
Additional information is provided in the documentation of the FireWire devices.
Connect this data cable of the external devices to the FireWire port of the notebook.
Plug the power cable of the external device into the mains socket.
