Interfaces and connectors
8 - English A26361-D1522-Z120-3-6319
Interfaces and connectors
The positions of the interfaces and connectors are shown on page "Cover".
The components and connectors marked are not necessarily present on the mainboard.

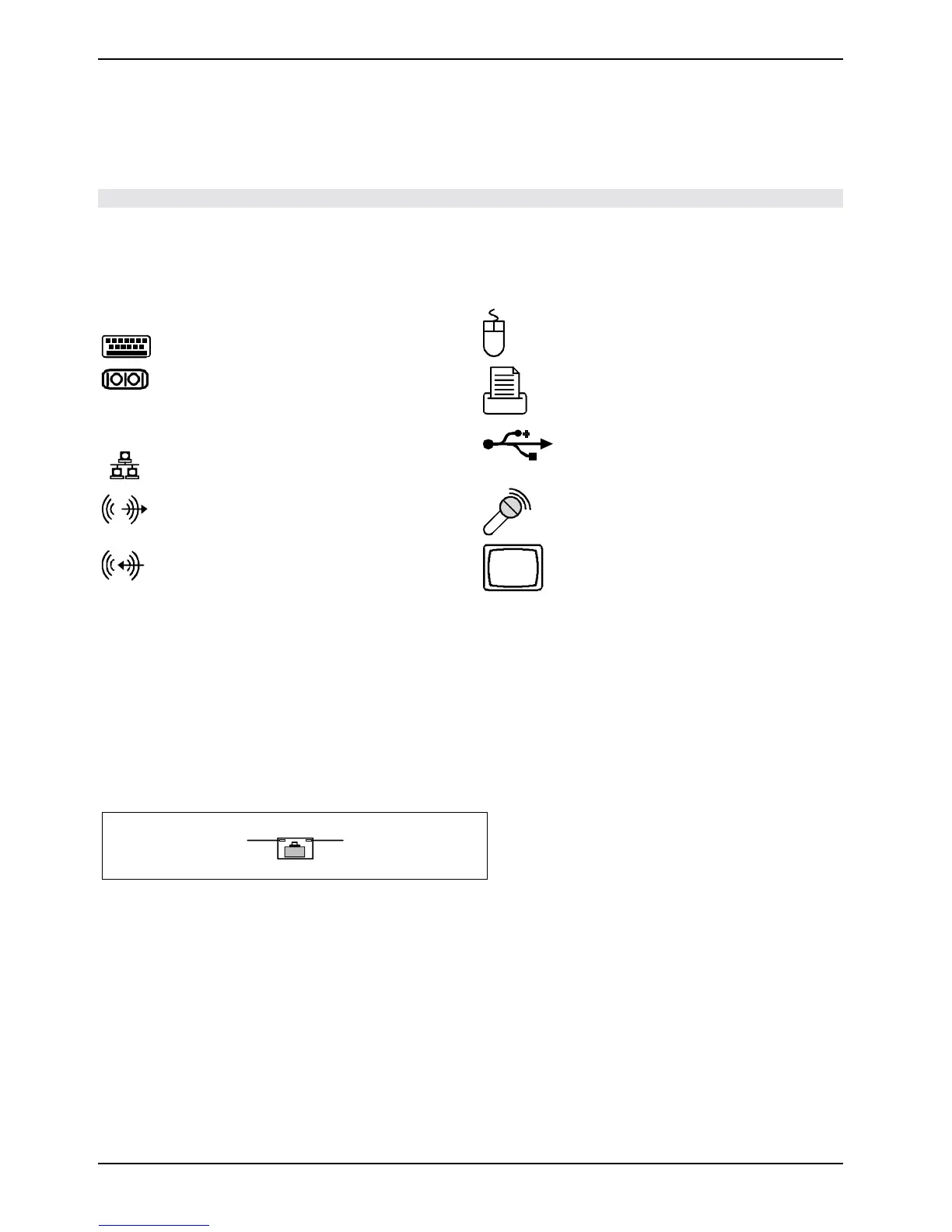

External ports
The positions of the external ports are shown on page "Cover".
PS/2 keyboard port, purple PS/2 mouse port, green
Serial interface, turquoise Parallel port/Printer, burgundy
LAN
LAN connector USB - Universal Serial Bus, black
Audio output (Line out), light green Microphone jack (mono), pink
Audio input (Line in), light blue VGA port, blue (monitor)
LAN connector
This mainboard is equipped with the 82562ET (D1521) or the 82562EM (D1522) LAN controller.
Both LAN controller support transfer speeds of 10 Mbit/s and 100 Mbit/s. The LAN controller are
equipped with a 3 KB transmission and receiving buffer (FIFO) and support WOL function through
Magic Packet.
It is also possible to boot a device without its own boot hard disk via LAN. Here bootix® LAN BootP
or bootix® PXE are supported.
The LAN RJ45 connector has two LEDs (light emitting diodes).
1
2
1 = a connection exists (e.g. to a hub).
2 = Link Mode: the LAN connection is active.
WOL mode: a Magic Packet
TM
is being
received.
