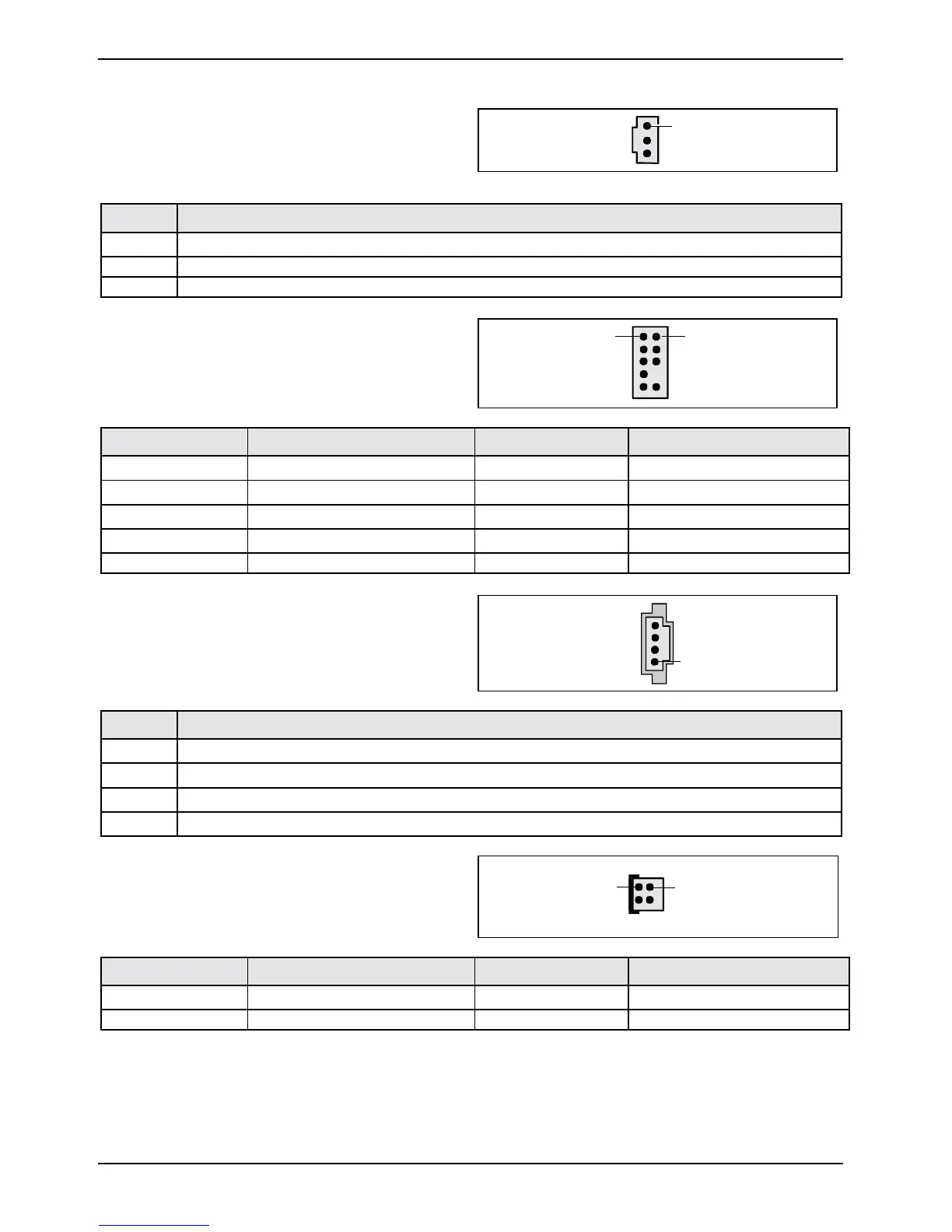

Interfaces and connectors
14 - English A26361-D1522-Z120-3-6319
Audio S/PDIF (3-pin)
1
Pin Signal
1GND
2 SPDIF out
3GND
Audio front panel
1 2
Pin Signal Pin Signal
1 Micro input 2 Analog GND
3 Micro bias 4 Analog VCC
5 Right line output 6 Right line return
7NC 8Key
9 Left line output 10 Left line return
CD-ROM audio
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
Processor power supply
13
Pin Signal Pin Signal
1 GND 2 +12 V
3 GND 4 +12 V
