Add-on modules / Upgrading
A26361-D1522-Z120-3-6319 English - 19

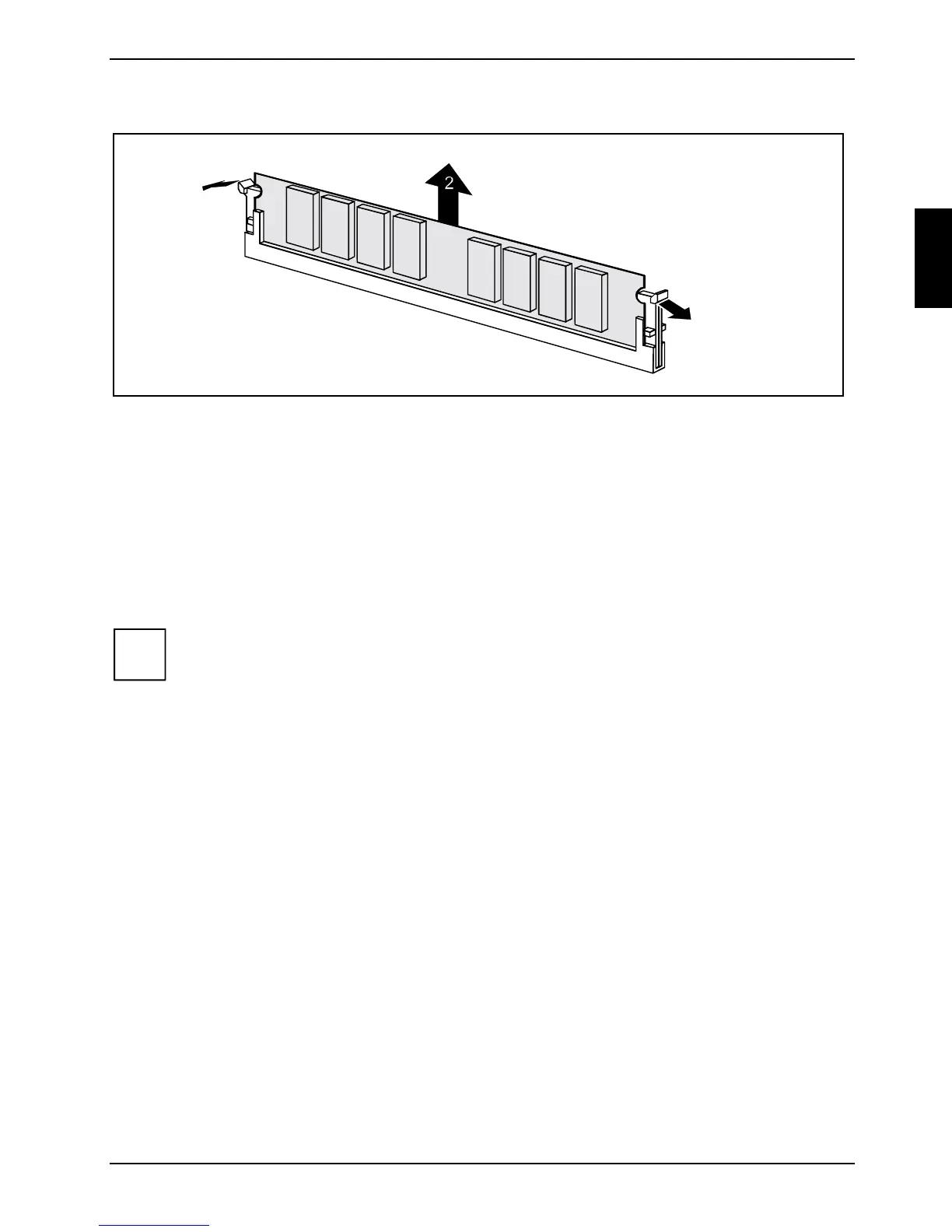

Removing a memory module
1
1
Ê Push the clips on the right and left of the compartment outward (1).
Ê Pull the memory module from the compartment (2).
Upgrading AGP screen controllers
Technical data:
The AGP slot supports the modes 1x/2x/4x with 32 bits and 66 MHz. Only 1.5 V AGP screen
controllers are supported.
i
Some older 3.3 V AGP screen controllers are coded like 1.5 V AGP screen controllers.
The installation of such 3.3 V AGP screen controllers can cause serious damage to the
mainboard and the AGP screen controller.
Adding PCI cards
Technical data:
32 bit / 33 MHz PCI slots
5 V and 3.3 V supply voltage
3.3 V auxiliary voltage
