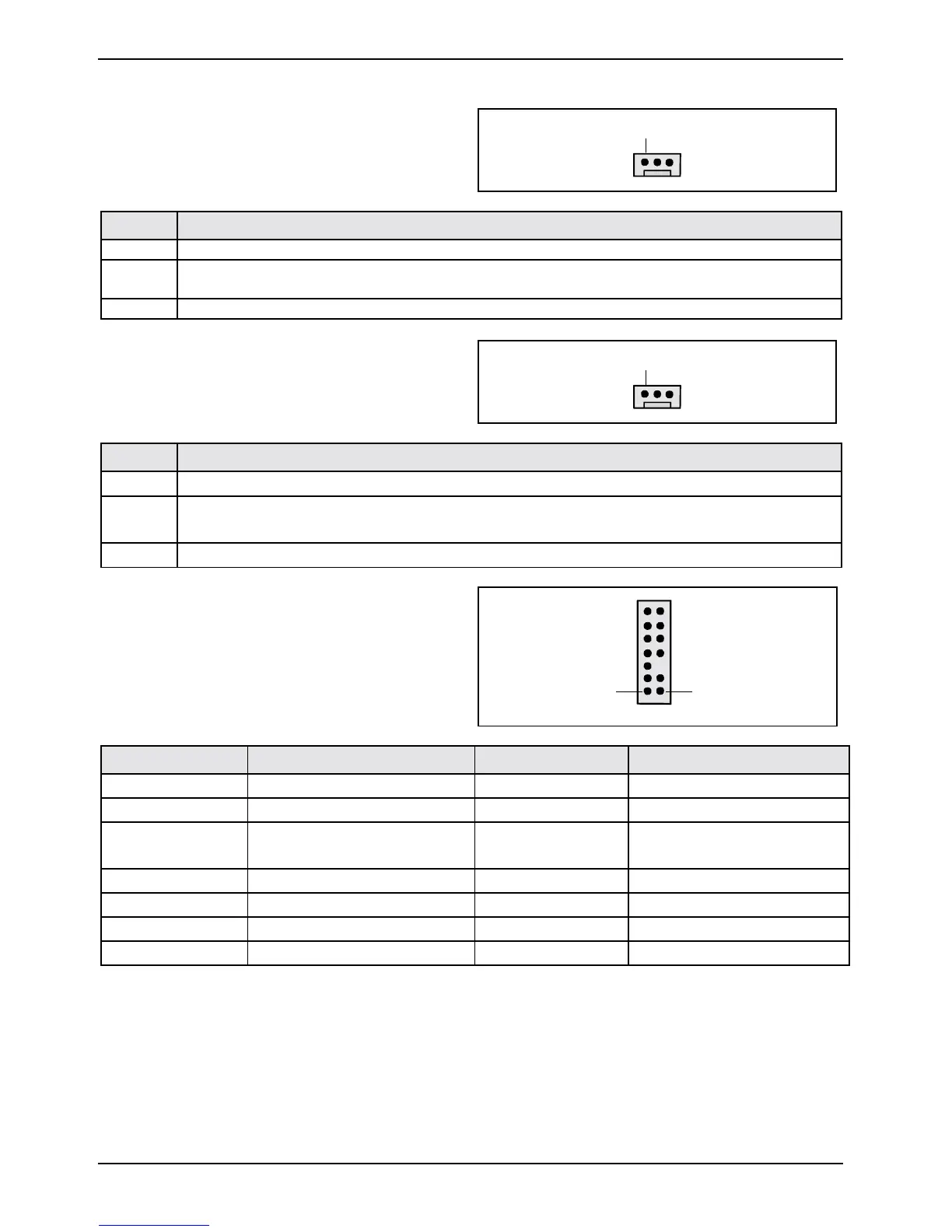

Interfaces and connectors
12 - English A26361-D1522-Z120-3-6319
Fan 1
(system fan - supervised)
1
Pin Signal
1GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
Fan 2
(system fan - supervised)
1
Pin Signal
1GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
LCD status indicator
(for use with optional front panel)
1
2
Pin Signal Pin Signal
1SMB CLK 2 GND
3 SMB DATA 4 GND
5Key 6RFU
Reserved for Future Use
7 LAN Active Icon 8 LAN Link Icon
9 Harddisk Action Icon 10 BMC Alert Icon
11 Message Icon 12 Sleep Icon
13 Power Icon 14 P3V3P DUAL
