Übersicht/Overview Mainboard D1522 / D1521

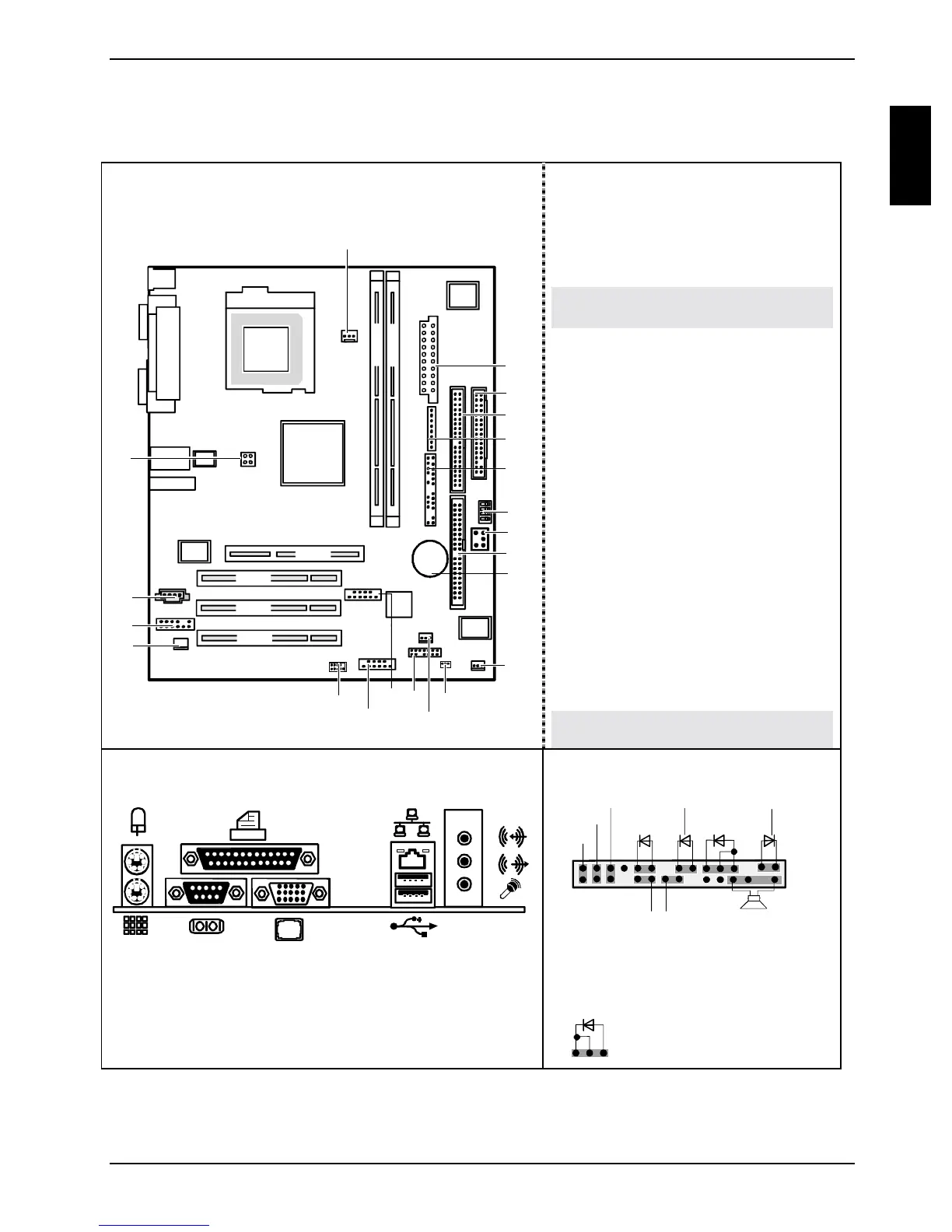

Interne Anschlüsse und Steckplätze / Internal
connectors and slots
DIMM 2
AGP
DIMM 1
PCI 1
PCI 2
PCI 3
18
19
1
2
3
4
5
6
11
10
17
13
15
12
14
21
20
16
7
9
CPU
Pentium 4
8
1 = Stromversorgung / Power Supply
2 = Diskettenlaufwerk / Floppy disk drive
3 = IDE-Laufwerke 3/4 / IDE-drives 3/4
4 = Stromversorgungsüberwachung /
Power supply monitoring
5 = Bedienfeld / Front panel
6 = Schalter / Switch
7 = Steckbrücken / Jumper
8 = IDE-Laufwerke 1/2 / IDE-drives 1/2
9 = Batterie / Battery
10 = Lüfter 2 / Fan 2
11 = Power On LED II
12 = Gehäuseüberwachung / Intrusion
13 = LCD-Statusanzeige / LCD status
indicator
14 = USB C/D
15 = USB E/F
16 = Serielle Schnittstelle 2 / serial
interface 2
17 = S/PDIF Anschluss / S/PDIF
connector
18 = Audio-Bedienfeld / Audio front panel
19 = CD-Audio in
20 = Stromversorgung Prozessor /
Processor power supply
21 = Lüfter 1 / Fan 1
Optionale Komponenten / Optional
components
Externe Anschlüsse / External connectors
LAN
AUDIO
Bedienfeld / Front panel
1) Cable is not included in the delivery scope.
2) The same interface
3) 2pin or 3pin connector possible
1
2
HD-LED
1)
Power On/Off
SCSI LED Input
2)1)
1)
Sleep
Reset
1)
Power On
LED
1) 3)
Sleep LED
Speaker
PowerOn LED II
3)
1)
Message LED
1
3
To Next Page
