Basisinformationen Mainboard
6 - English A26361-D2000-Z120-1-7419, edition 3

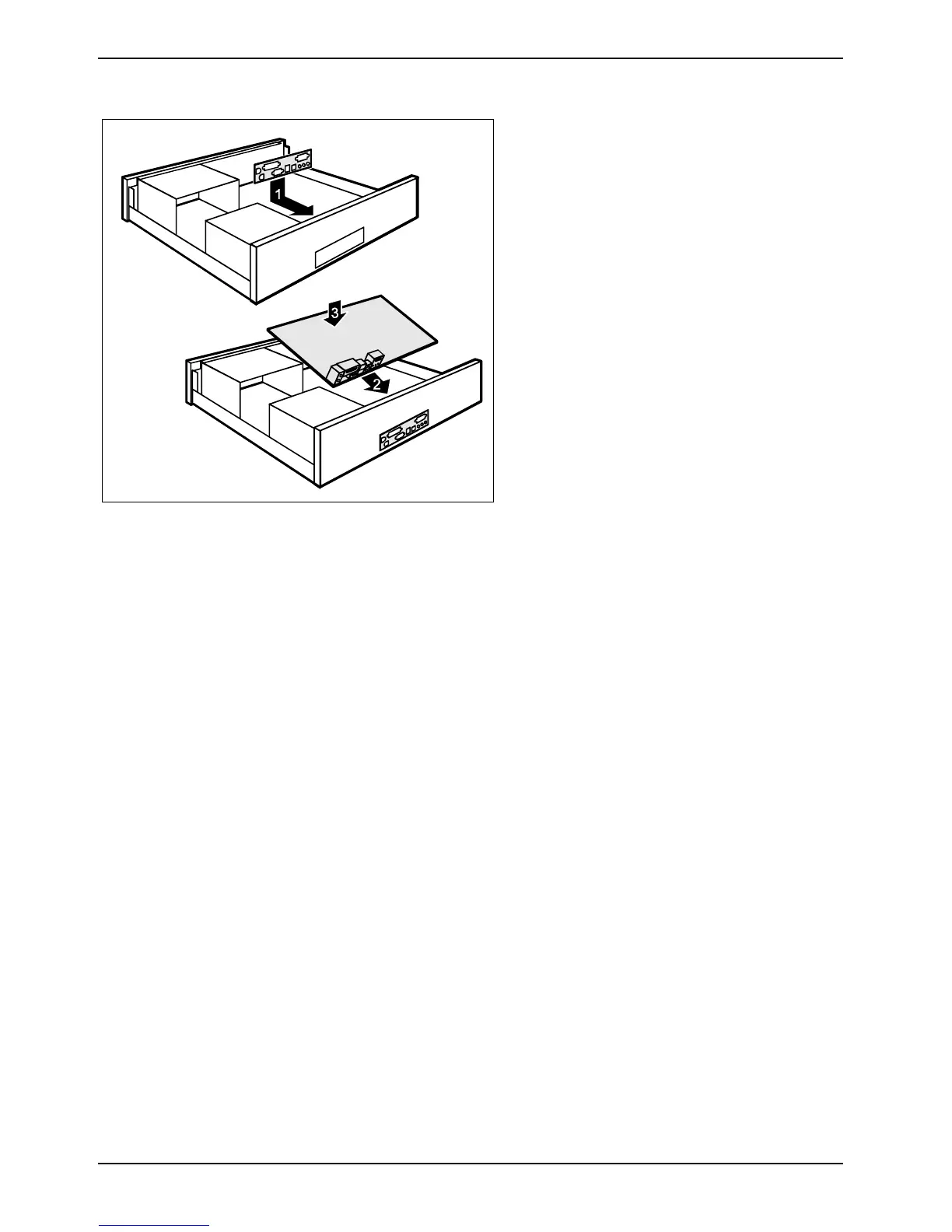

► Should no suitable connection field be
provided in the case, then you must
install the connection field (1) provided.
Ensure the plate is aligned properly so that
the connections are suitable for the
mainboard later.
► Set the mainboard on the edge on which
the connection field is located (2) and
then insert the board in the case (3).
Make sure that spacers in the housing are
only mounted at points at which there are
mounting holes in the mainboard.
► Fasten the mainboard with the screws.
► Connect the plugs for the power supply, control panel and drives to the corresponding
connections on the mainboard.
Driver installation
► Install the drivers for the chipset. You may find the driver on the "Drivers & Utilities" CD. Please
refer to chapter "Drivers" for a description of installing drivers.
Interfaces and connectors
The location of the connections and connectors of your mainboard is specified in the
"Short Description" manual.
