A26361-D2000-Z120-1-7419, edition 3 English - 17

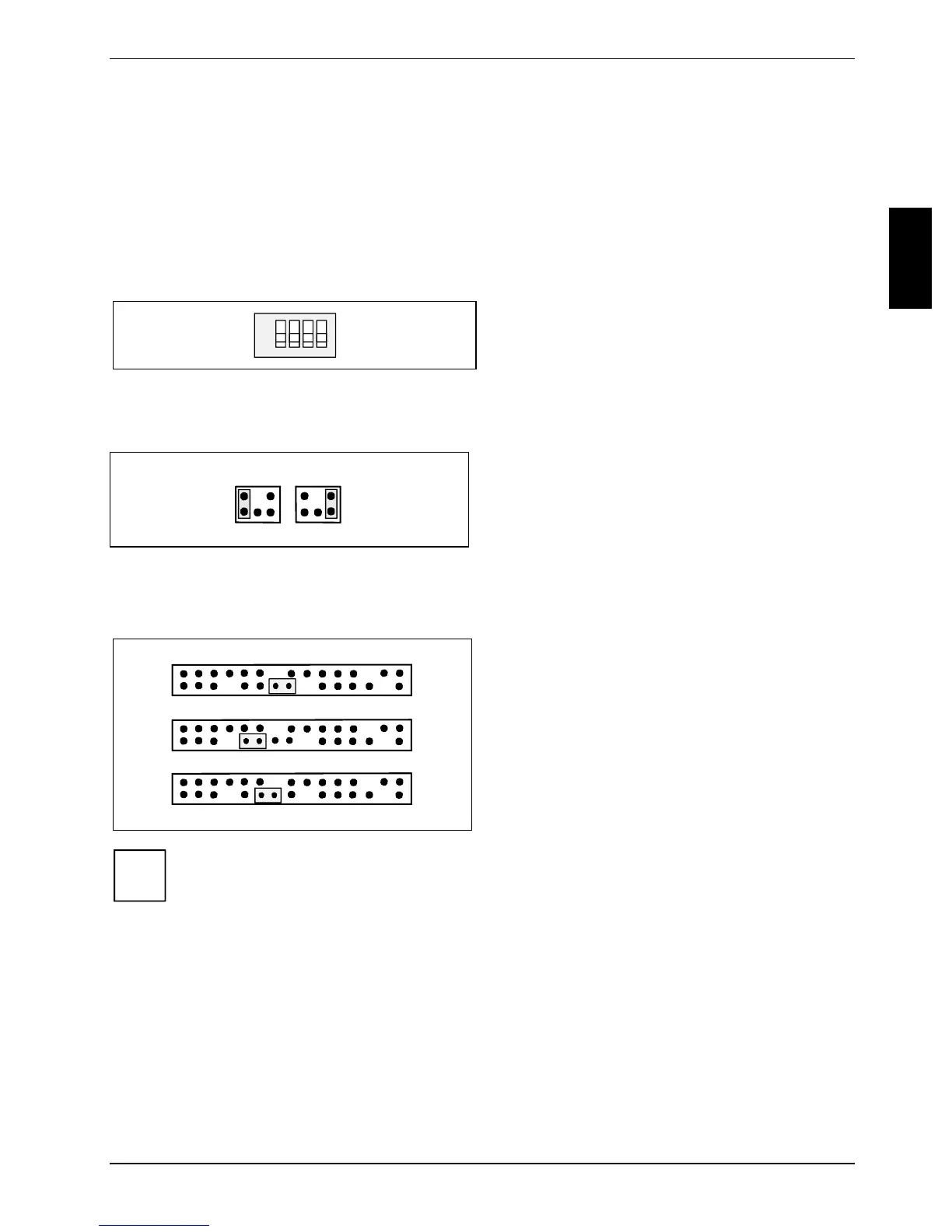

Settings with switches and jumpers
Switches and jumpers
Your mainboard is optionally equipped with switches or jumpers. The location of the switches or
jumpers is specified in the "Short Description" manual.
Setting with switches
1234
ON
Switch 1 = Skipping system and BIOS Setup
password
Switch 2 = System BIOS recovery
Switch 3 = must be set to off
Switch 4 = must be set to off
Setting with jumpers
2
1
SKP
RCV
Pin pair 1 inserted =
Skipping system and BIOS Setup password
Pin pair 2 inserted =
System BIOS recovery
Any other setting =
State of supply; jumper has no function
Setting via control-panel plug connector
A
C
1
2
1
2
B
1
2
Pin pair A inserted =
Skipping system and BIOS Setup password
Pin pair B inserted =
System BIOS recovery
Pin pair C inserted =
factory setting
i
Please pay attention on the exact position of the pin pairs!
