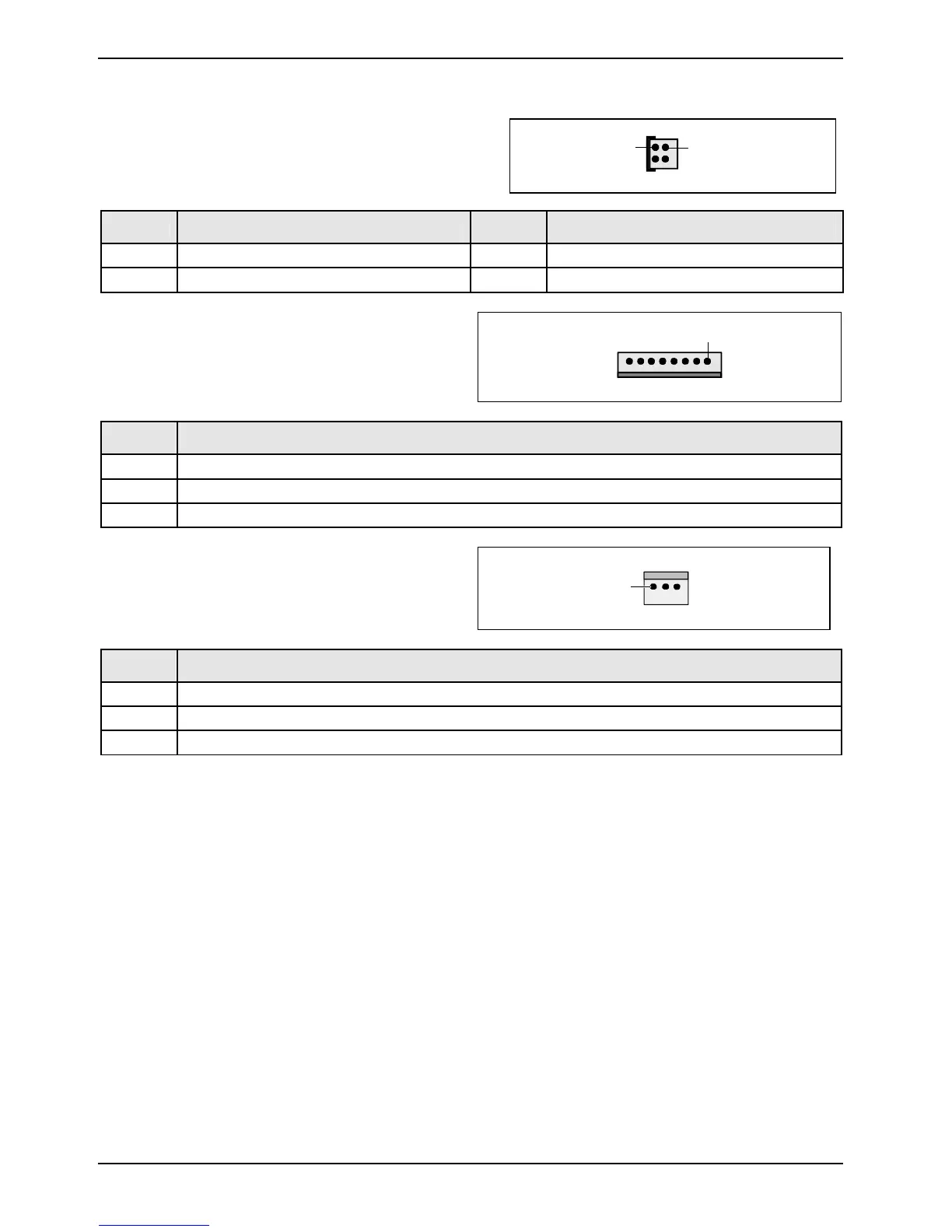

Basisinformationen Mainboard
16 - English A26361-D2000-Z120-1-7419, edition 3
Additional power supply ATX12 V
13
Pin Signal Pin Signal
1 GND 2 GND
3 +12 V 4 +12 V
Power supply control
(System monitoring)
1
Pin Signal
1 Power Guard Control
2 PS FAN Control
4 PS FAN Sense
Intrusion
1
Pin Signal
1 GND
2 Case open (low asserted)
3 Intrusion switch present (low asserted)
