Basisinformationen Mainboard
A26361-D2000-Z120-1-7419, edition 3 English - 11
The following mixers or input devices are available:
Realtek HD Front Green Jack Front (green) jack
Realtek HD Front Pink Jack Front (pink) jack
Realtek HD Audio Rear Input
Rear (pink) jack (microphone)
Rear (blue) jack (Line-In)
Audio-In (internal jack on mainboard)

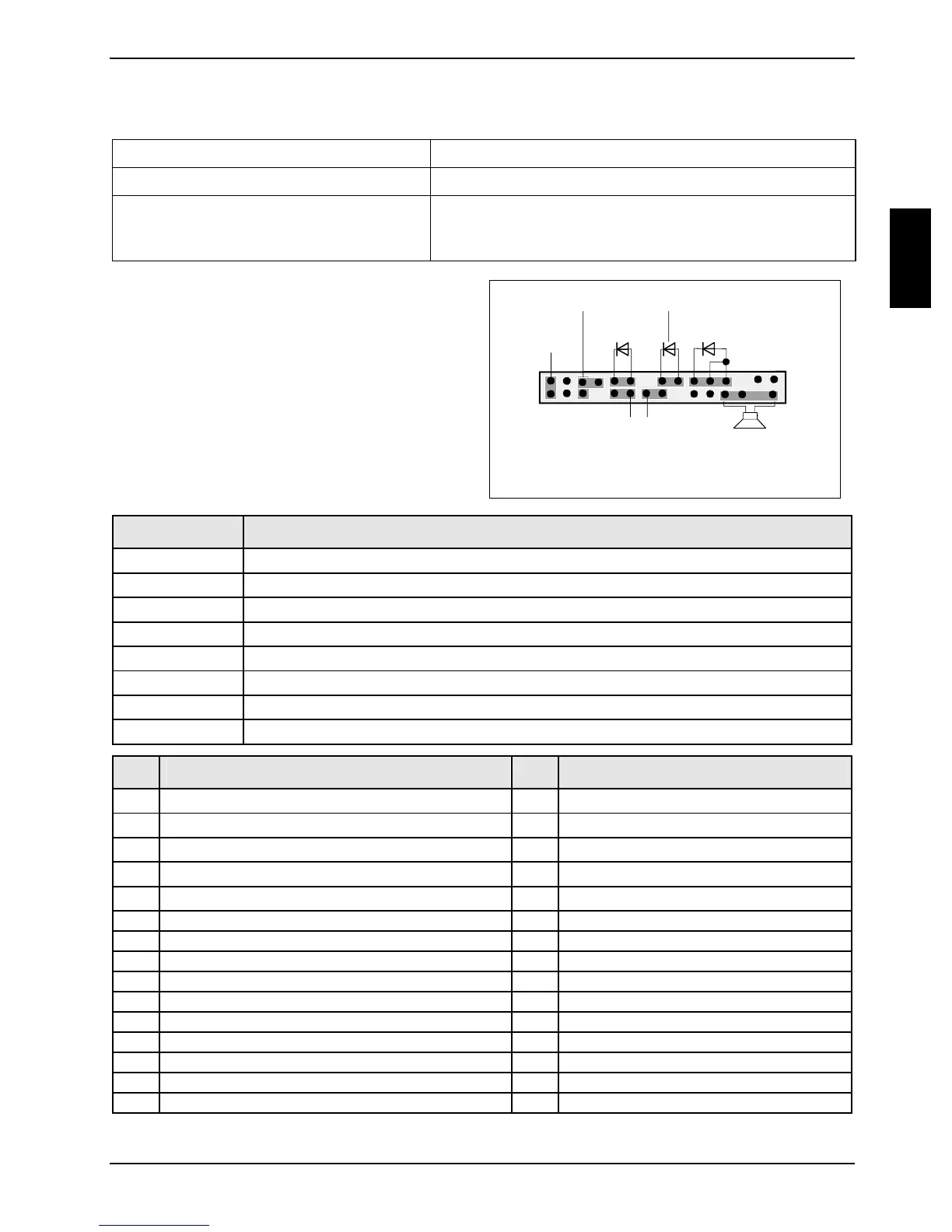

Front panel
Watch the poling of the LEDs. The positive pole
of the connection cables is often indicated with a
coloured wire.
1) Both jumper positions possible
2) 2pin or 3pin connector possible
3) optional
1
2
HD-LED
Power On/Off
Recovery Password
1)
Reset
Power On
LED
2)
Message LED
Speaker
3)
3)
Port Note
Reset Connector for reset switch
Power On/Off Connection for ATX On/Off switch
HD LED Indicates HDD (hard disk) activity
Message LED Optional: Indicates system management error
Power On LED Indicates the system state APM or ACPI
Recovery see "Settings with switches and jumpers" chapter
Password see "Settings with switches and jumpers" chapter
Speaker Optional: 0,5 W at 8 Ohm
Pin Signal Pin Signal
1 GND 2 Speaker -
3 "Stand by" LED + 4 Key
5 Key 6 GND
7 "Power On" LED + 8 Speaker +
9 "Power On" LED + 10 Reserved
11 "Power On" LED - / "Stand by" LED - / (GND) 12 Reserved
13 "Message" LED + 14 Key
15 "Message" LED - 16 Password Skip
17 Key 18 GND
19 "HD" LED + 20 GND
21 "HD" LED - 22 Recover BIOS
23 GND 24 Key
25 Power-Button (low asserted) 26 GND
27 reserved 28 GND
29 Reset-Button (low asserted) 30 GND
