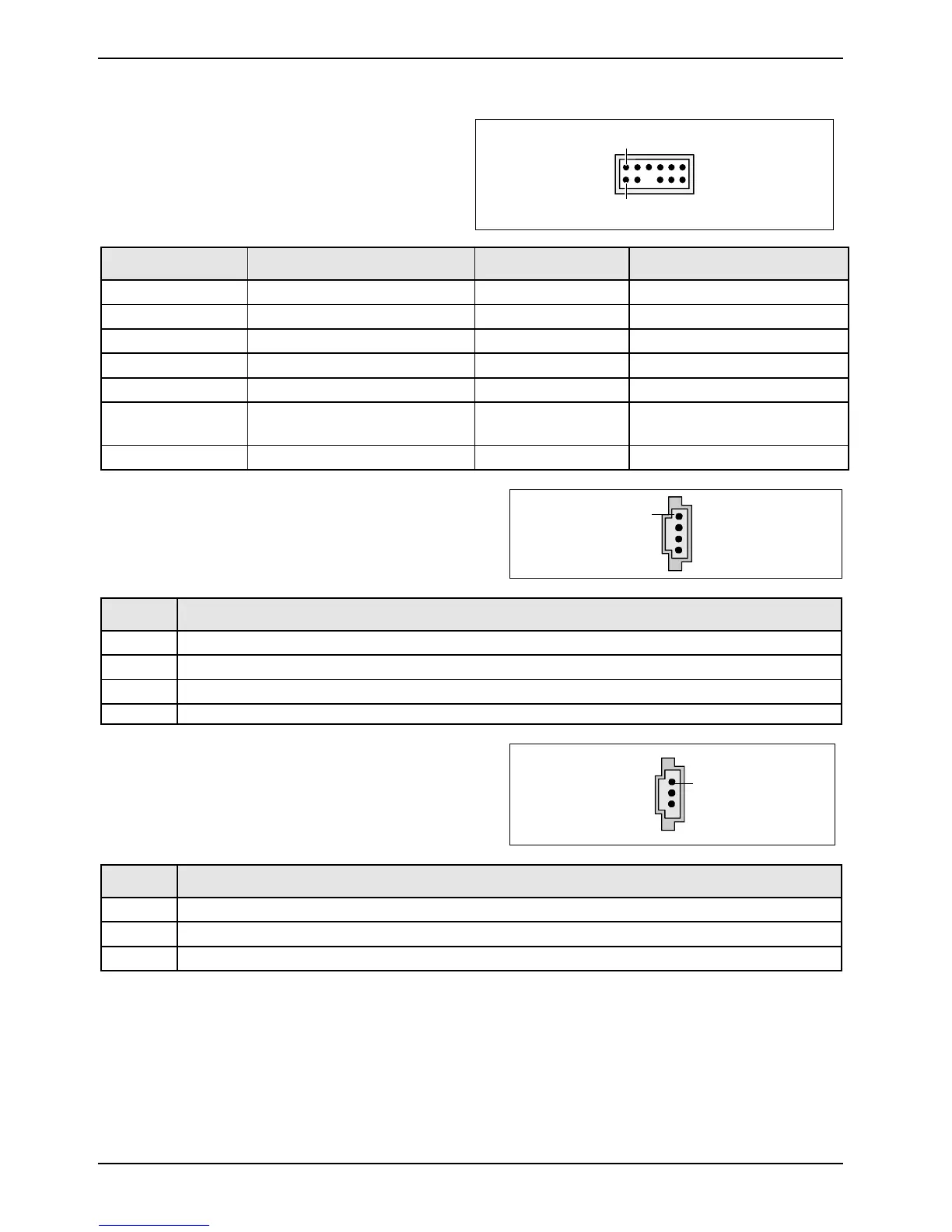

Basisinformationen Mainboard
12 - English A26361-D2000-Z120-1-7419, edition 3
LCD display
2
1
Pin Signal Pin Signal
1 SMB CLK 8 LAN Link Icon
2 GND 9 Harddisk Action Icon
3 SMB DATA 10 BMC Alert Icon
4 GND 11 Message Icon
5 Key 12 Sleep Icon
6 RFU
Reserved for Future use
13 Power Icon
7 LAN Active Icon 14 P3V3P_DUAL
Audio In
1
Pin Signal
1 Left audio input
2 Analogue GND
3 Analogue GND
4 Right audio input
Audio S/PDIF (optional)
1
Pin Signal
1 VCC
2 SPDIF out
3 GND
