Basisinformationen Mainboard
A26361-D2000-Z120-1-7419, edition 3 English - 15

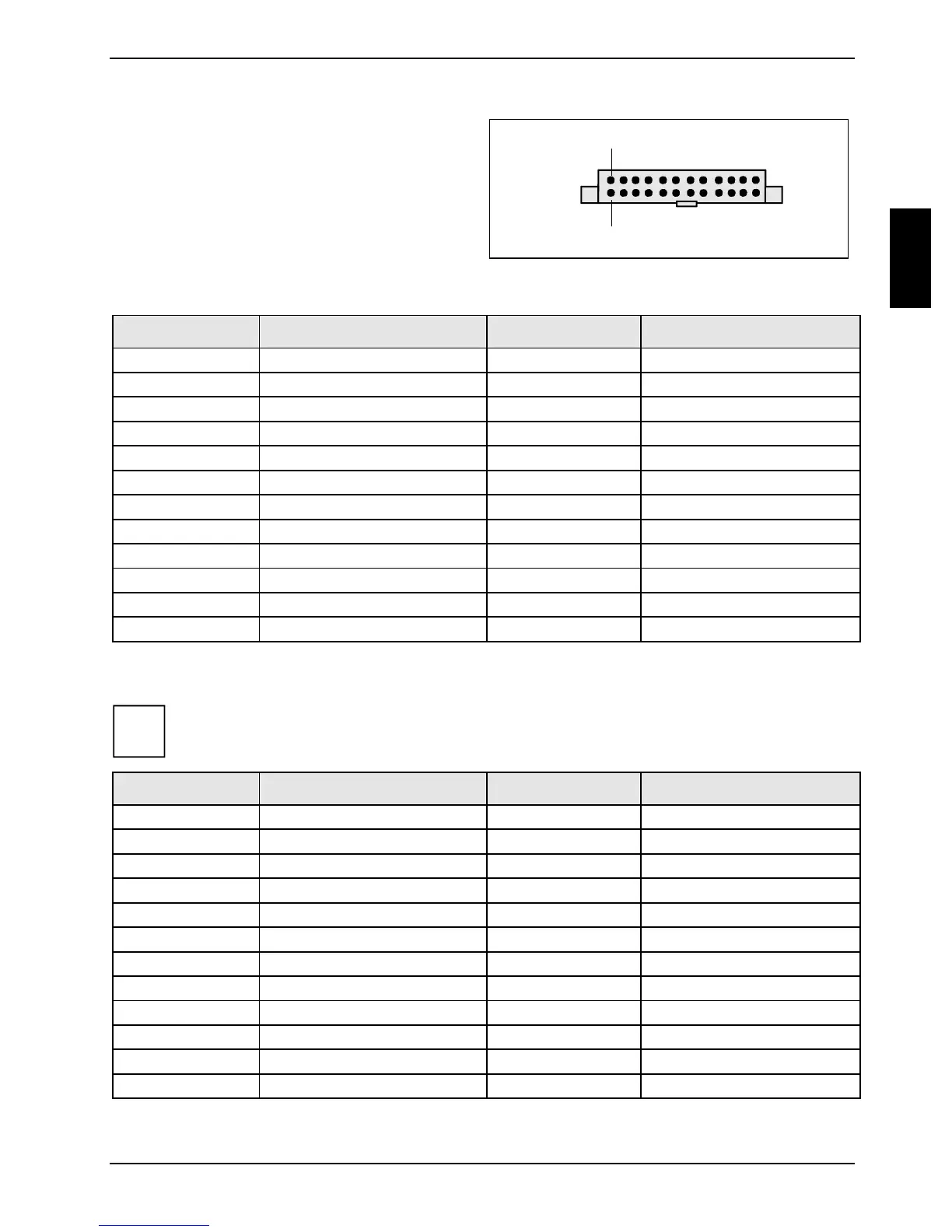

Power supply BTX
(ATX compatible)
1
13
24-Pin BTX connector
Pin Signal Pin Signal
1 +3.3 V (P3V3P) 13 +3.3 V (P3V3P)
2 +3.3 V (P3V3P) 14 -12 V (P12VN)
3 GND 15 GND
4 +5V (VCC) 16 PS on (low asserted)
5 GND 17 GND
6 +5V (VCC) 18 GND
7 GND 19 GND
8 Powergood (high asserted) 20 -5 V (P5VN)
9 +5 V Auxiliary (VCC Aux) 21 +5 V (VCC)
10 +12 V (P12VP) 22 +5 V (VCC)
11 +12 V (P12VP) 23 +5 V (VCC)
12 +3.3 V (P3V3P) 24 GND
24-Pin connector for D216x
i
Do not connect this connector with a standard power supply!
Pin Signal Pin Signal
1 +3.3 V (P3V3P) 13 +3.3 V (P3V3P)
2 +3.3 V (P3V3P) 14 -12 V (P12VN)
3 GND 15 GND
4 +5V (VCC) 16 PS on (low asserted)
5 GND 17 GND
6 +5V (VCC) 18 GND
7 GND 19 GND
8 Powergood (high asserted) 20 -5 V (P5VN)
9 +5 V Auxiliary (VCC Aux) 21 +5 V (VCC)
10 +12 V (P12VP) 22 +5 V (VCC)
11 Fan sense 23 GND
12 Fan PWM 24 Power Supply Monitoring
