Basisinformationen Mainboard
14 - English A26361-D2000-Z120-1-7419, edition 3

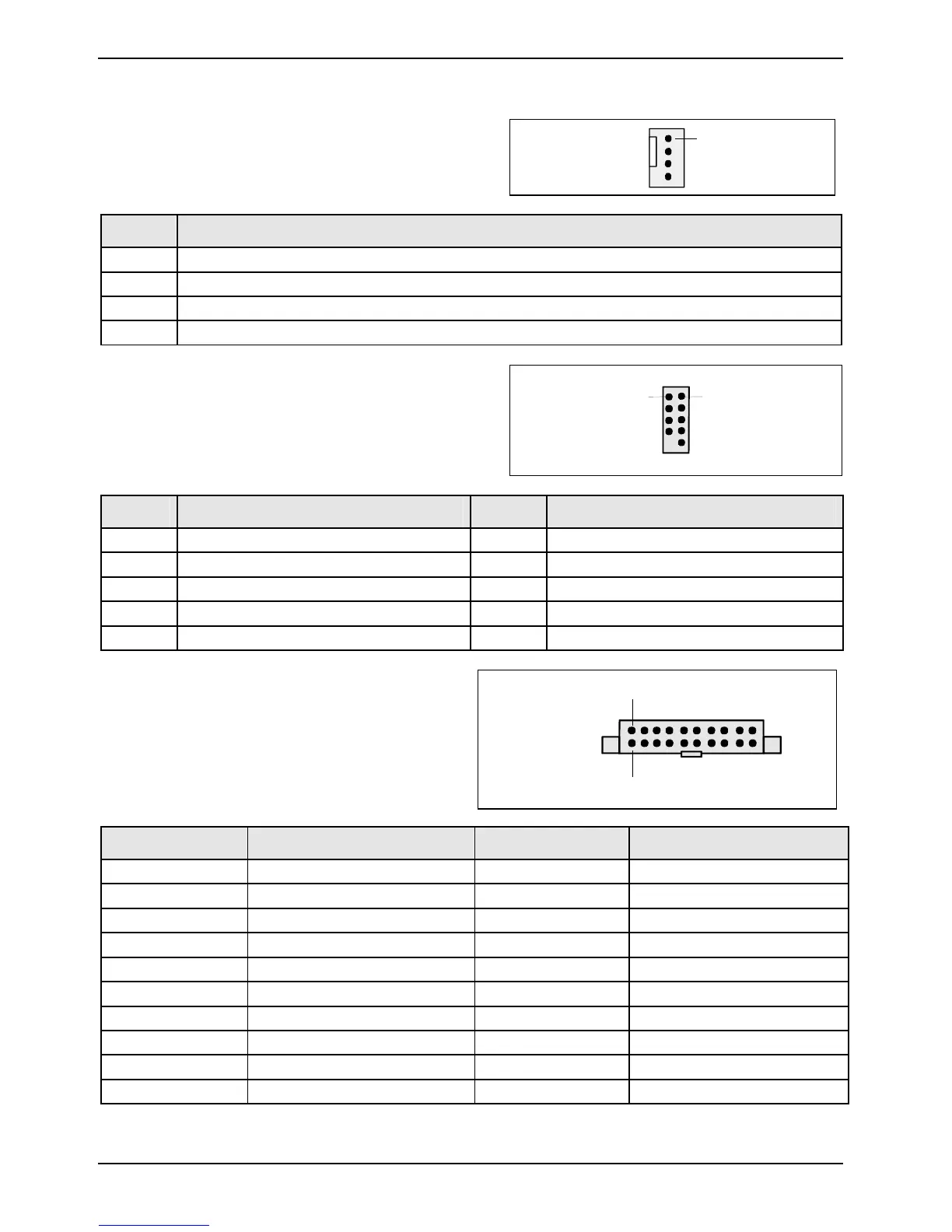

Fan
(only for 4 pin fans)
1
Pin Signal
1 GND
2 +12 V
3 Fan sense
4 Fan control (PWM)
1394 connector (internal header)
1
2
Pin Signal Pin Signal
1 TPA+ 2 TPA-
3 GND 4 GND
5 TPB+ 6 TPB-
7 +12 V 8 +12 V
9 Key 10 GND
Power supply ATX
1
11
Pin Signal Pin Signal
1 +3.3V(P3V3P) 11 +3.3V(P3V3P)
2 +3.3V(P3V3P) 12 -12V (P12VN)
3 GND 13 GND
4 +5V (VCC) 14 PS on (low asserted)
5 GND 15 GND
6 +5V (VCC) 16 GND
7 GND 17 GND
8 Powergood (high asserted) 18 -5V (5PVN)
9 +5V Auxiliary (VCC Aux) 19 +5V (VCC)
10 +12V (P12VP) 20 +5V (VCC)
