Drivers
A corresponding driver must be installed for the 2, 4 or 6-channel audio mode. If the drive is not
installed yet, proceed as described in the chapter "Add-on modules / Upgrading", in the section
"Drivers".
Connecting loudspeakers
The number of loudspeakers connected should match the number of audio channels you select in
the driver software.
Using external audio connections
1
2
3

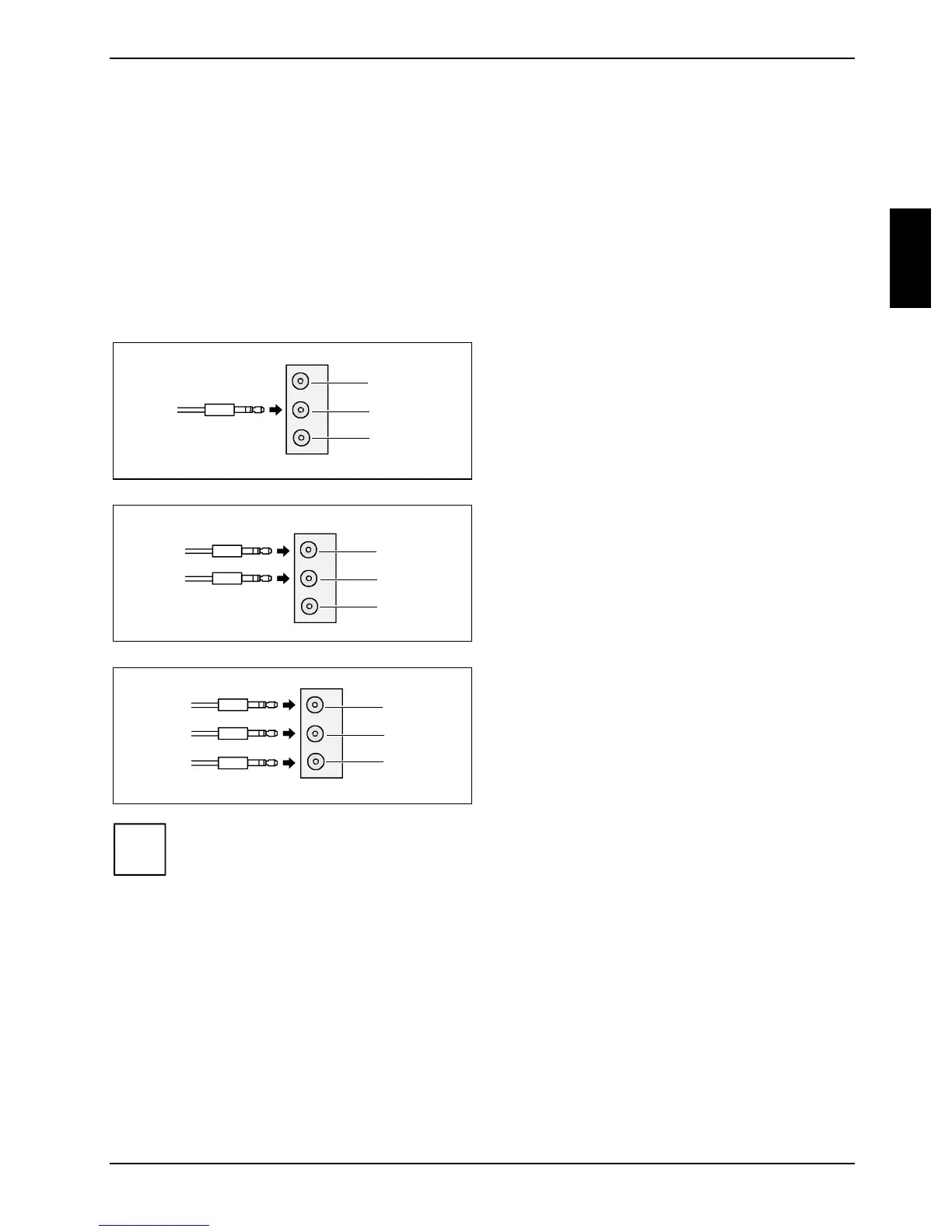

Analogue 2-channel audio output
With the 2-channel configuration the functions
Line-Out, Line-In and MIC are available.
1 = Line-In (blue)
2 = Line-Out (front channels, green)
3 = MIC (red)
1
2
3
Analogue 4-channel audio output
Line-In is converted into the Rear-Out function
with the 4-channel configuration.
1 = Line-In (rear channels, blue)
2 = Line-Out (front channels, green)
3 = MIC (red)
1
2
3
Analogue 6-channel audio output
Line-In and MIC are converted into the function
Line-Out with the 6-channel configuration.
1 = Line-In (rear channels, blue)
2 = Line-Out (front channels, green)
3 = MIC (centre and subwoofer channel, red)
i
Depending on driver version and operating system the functions may differ from this
presentation. If necessary, further information is provided in the respective help system of
drivers and software.
Selecting settings for 2, 4 or 6-channel audio mode
Depending on the driver for the audio mode and from the operating system used, you can configure
the audio properties, e.g. with Windows 2000 under Start - Settings - Control Panel - Sounds and
Multimedia.
