SCENICVIEW B17-3/B19-3/P19-3
Mounting and removing the monitor base
The display surface is susceptible to scratching! Therefore, lay the monitor on a soft
surface when mounting or removing the monitor base.
!

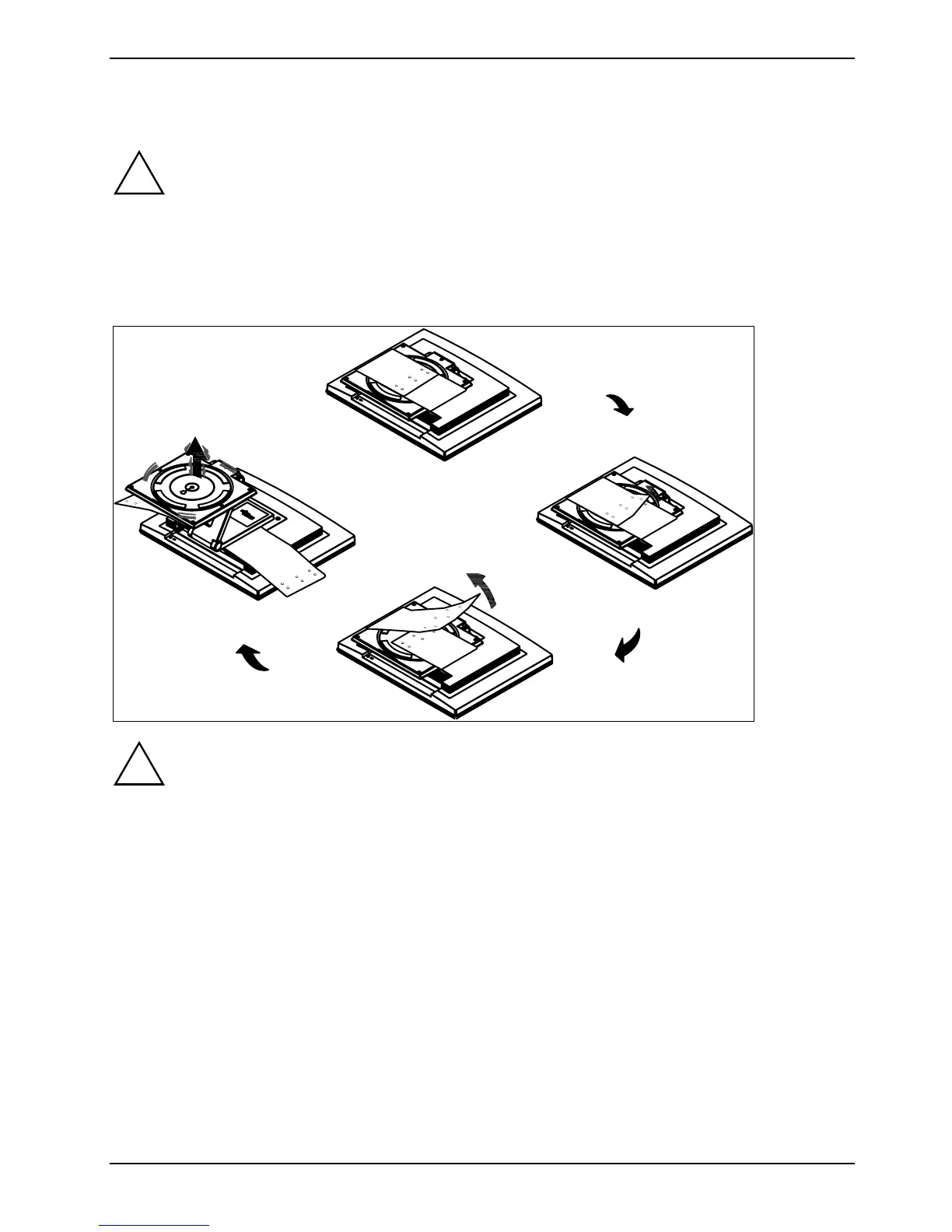

Folding out monitor base
When delivered the lower part of the monitor base is folded up and secured to the monitor by a
collar.
!
The monitor base springs up about 5 cm when the collar is released.
► Lay the monitor on its face on a soft surface (A).
► First release one of the collar fasteners (1).
► Release carefully the second collar fastener (2).
The monitor base can now be folded out.
A26361-K1143-Z120-1-7619, edition 3 9
