3.3 Replacing Consumable
fi-5015C Image Scanner Operator’s Guide 49
MAINTENANCE
3

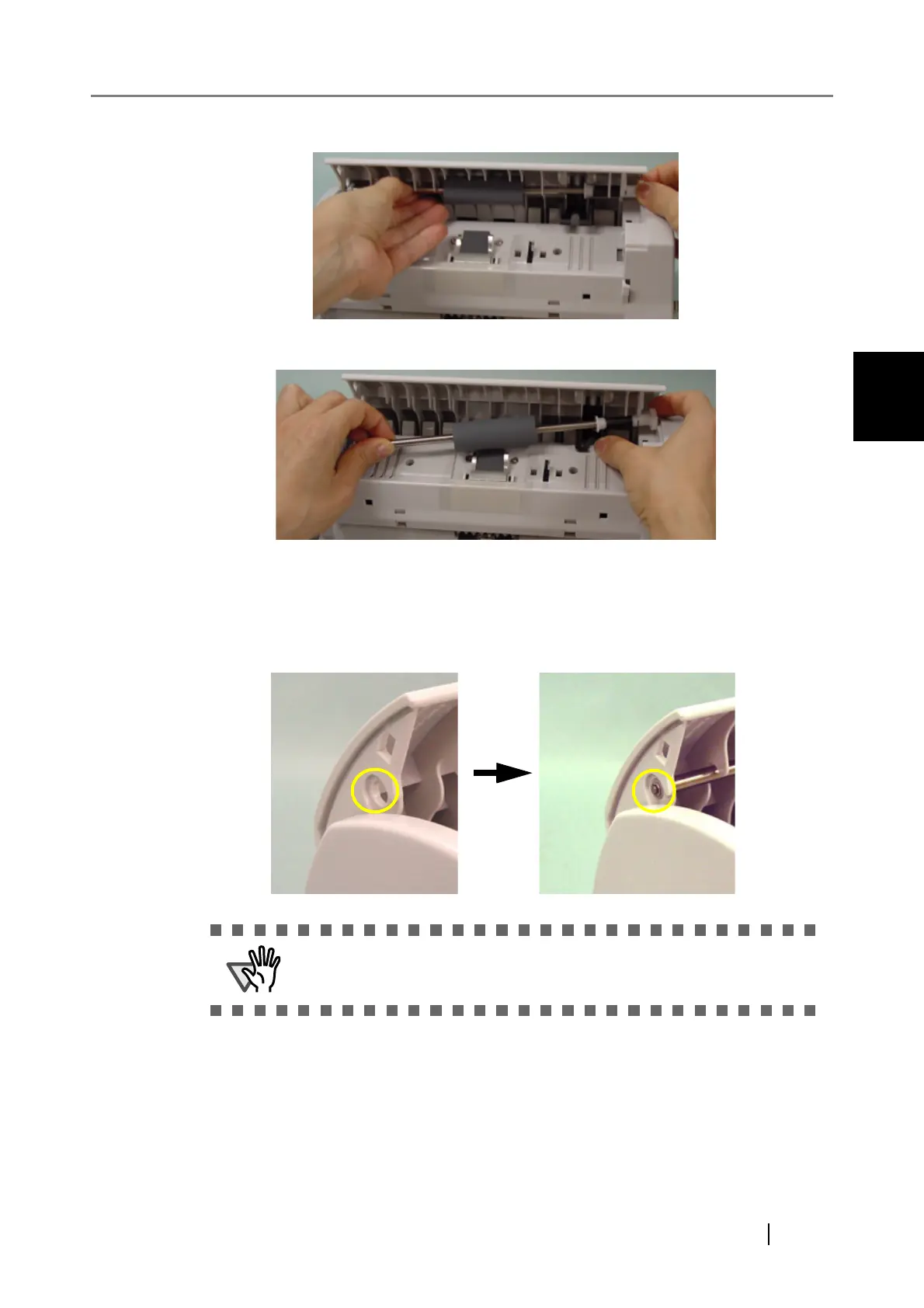

2) Pull the Pick roller unit to the fixture‘s side.
⇒ The Pick roller unit is removed downwards.
4. Attach a new Pick roller unit to the scanner.
Attatch a new Pick roller unit to the scanner in reverse order of removing.
1) Set the Pick roller unit inserting an end of shaft into the shaft hole correctly as shown in
the following photos.
2) Lock the fixture in the original place to fix the Pick roller unit.
ATTENTION
Make sure that the end of the Pick roller unit shaft is correctly inserted in
the shaft hole. Otherwise the ADF will not be closed completely.
