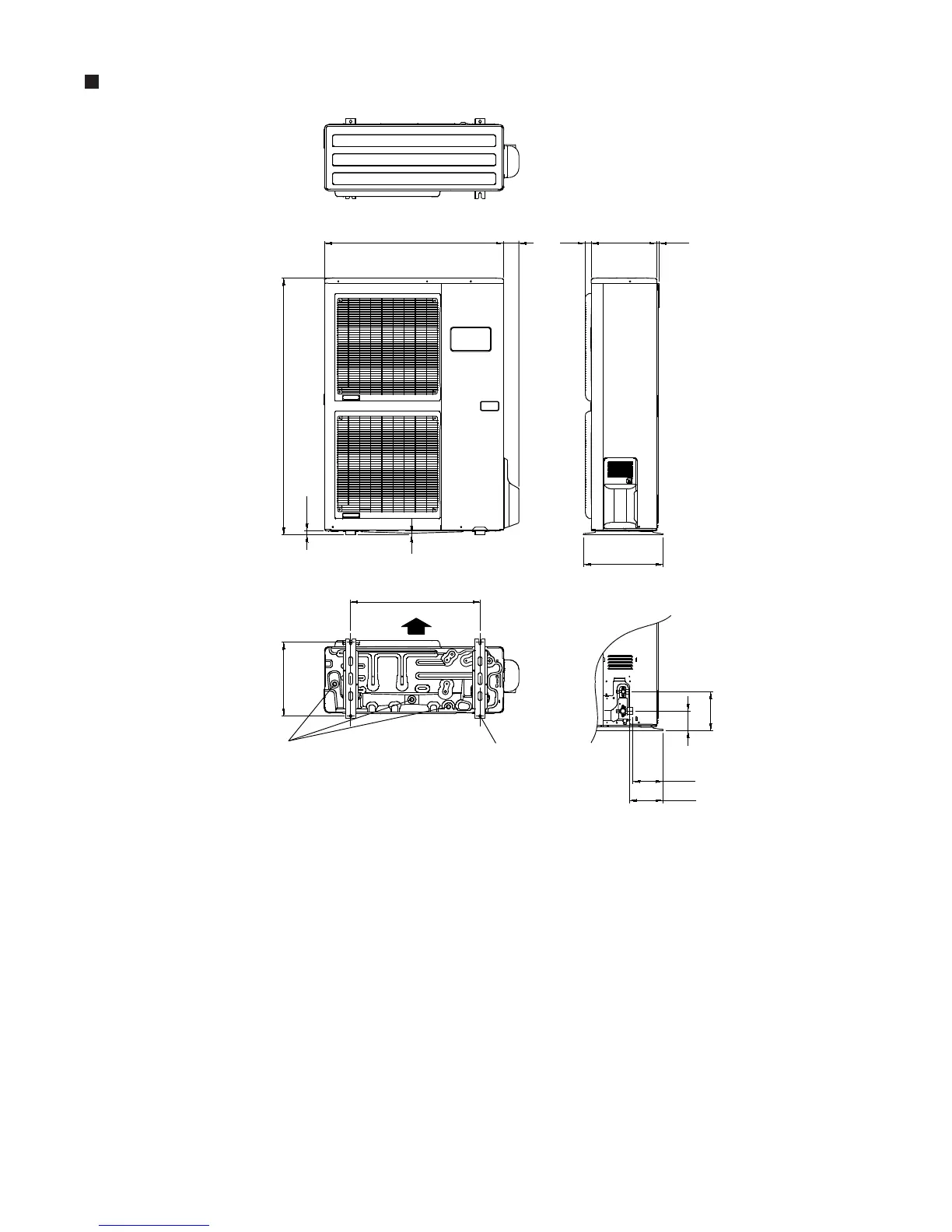

02 - 08
MODEL
:
AOT
A36 / 45LA
TL
(Unit : mm)
900
1290
77
31
21
370
9
400
650
151
99
196
170
4-Ø12mm hole
12
330
Air flow
Drain cap mounting
places
Top view
Side view
Bottom view
Front view
18
20
Table of Contents
Specifications
3
Refrigerant System Diagram
20
Control Operation
34
Description of each Control Operation
35
Heating Operation
36
Heating Capacity Control
36
Dry Operation
37
Indoor Unit Control
37
Auto Changeover Operation
38
Indoor Fan Control
39
Fan Operation
39
Cooling Operation
39
Outdoor Fan Control
41
Louver Control
43
Compressor Control
47
Timer Operation Control
48
On/Off Timer
48
Wireless Remote Controller
48
Sleep Timer
49
Electronic Expansion Valve Control
50
Test Operation Control
50
Prevent to Restart for 3 Minutes ( 3 Minutes St )
50
Way Valve Extension Select
51
Auto Restart
51
MANUAL AUTO OPERATION (When Using the Wireless RC)
51
Compressor Preheating
52
Defrost Operation Control
52
Off Defrost Operation Control
54
Economy Operation
55
Various Protections
56
Forced Cooling Operation
58
Compressor Stop Control
58
Cassette Type
59
Refrigerant Caution -R410A
60
Precaution for Installation
61
Refrigerant Charge
62
Precaution for Servicing
63
New Refrigerant R410A
64
Defference from Conventional Model (R22) and Precautions
67
Heat Exchanger
67
Way Valve
67
Check Valve
67
Troubleshooting
69
Error Display
69
Wired Remote Controller Display
69
Outdoor Unit Display
71
Error Display Method
71
Normal Operation Display
71
Trouble Shooting with Error Code
72
Trouble Shooting with no Error Code
100
Service Parts Information
105
Appending Data
110
Capacity Table
110
Cooling Capacity
110
Heating Capacity
111
Operation Range
118
Electric Characteristics
119
Safety Device
121
Outdoor Unit
121
Indoor Unit
121
Wired Remote Controller
125
Switch Position
125
Ceiling Type
129
