5-2. HEATING OPERATION
5-2-1 HEATING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is lower 3 °C than a set temperature,
the compressor operation frequency will attain to maximum performance.
* If the room temperature is higher 2.5 °C than a set temperature, the compressor
will be stopped.
* When the room temperature is between +2.5 °C to -3 °C of the setting temperature,
the compressor frequency is controlled within the range shown in Table2.
However, the maximum frequency is limited in the range shown in Figure 2 based on
the outdoor temperature.

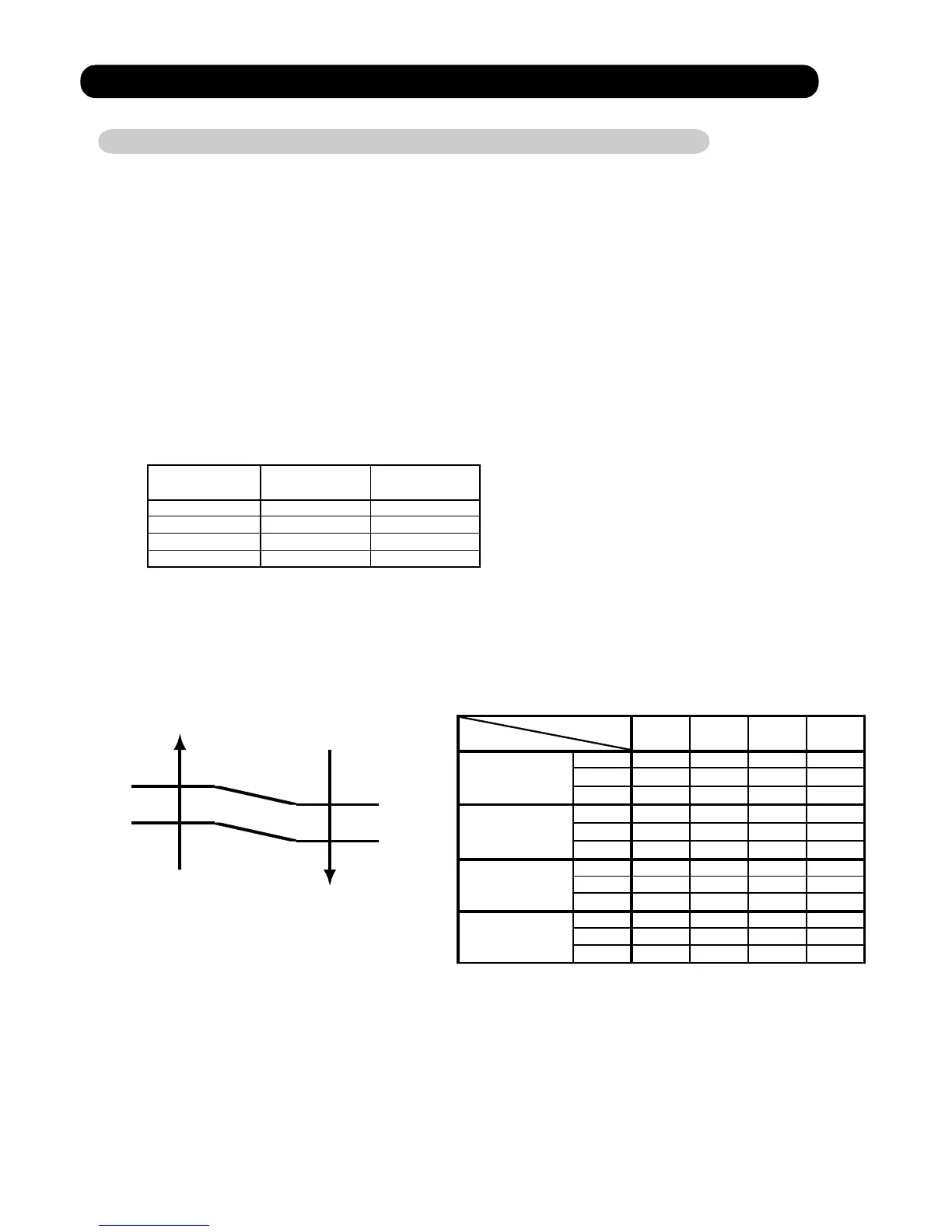

( Table 2 : Compressor Frequency Range )
( Fig.2 : Limit of Maximum Frequency based on Outdoor Temperature )
05-02
minimum
frequency
maximum
frequency
AB*A18LATN 18Hz
18Hz
18Hz
18Hz
120Hz
120Hz
90Hz
90Hz
AB*A24LATN
AB*A36LATN
AB*A45LATN
AB*A18LATN C zone 120Hz 101Hz 75Hz 60Hz
19°C
C zone B zone 120Hz 101Hz 75Hz 60Hz
17°C
A zone 120Hz 101Hz 75Hz 60Hz
14°C
B zone AB*A24LATN C zone 120Hz 101Hz 75Hz 60Hz
12°C
B zone 120Hz 101Hz 75Hz 60Hz
A zone A zone 120Hz 101Hz 75Hz 60Hz
AB*A36LATN C zone 90Hz 66Hz 53Hz 45Hz
B zone 90Hz 66Hz 53Hz 45Hz
A zone 90Hz 66Hz 53Hz 45Hz
AB*A45LATN C zone 90Hz 66Hz 53Hz 45Hz
B zone 90Hz 66Hz 53Hz 45Hz
A zone 90Hz 66Hz 53Hz 45Hz
Lo Qu
Fan speed mode
Hi Me
Outdoor air
temperature
When the room
temperature drops
When the room
temperature rises
