5-3. DRY OPERATION
5-3-1 INDOOR UNIT CONTROL
The compressor rotation frequency shall change according to set temperature and room
temperature variation which the room temperature sensor of the indoor unit has detected
as shown in the Fig 3.
( Table 3 : Compressor frequency )
05-03
Operating frequency
AB*A18LATN 34Hz
34Hz
31Hz
31Hz
AB*A24LATN
AB*A36LATN
AB*A45LATN
Room
temperature
Room
temperature
Compressor ON
Ts+1.5 °C
Ts+0.5 °C
Compressor OFF

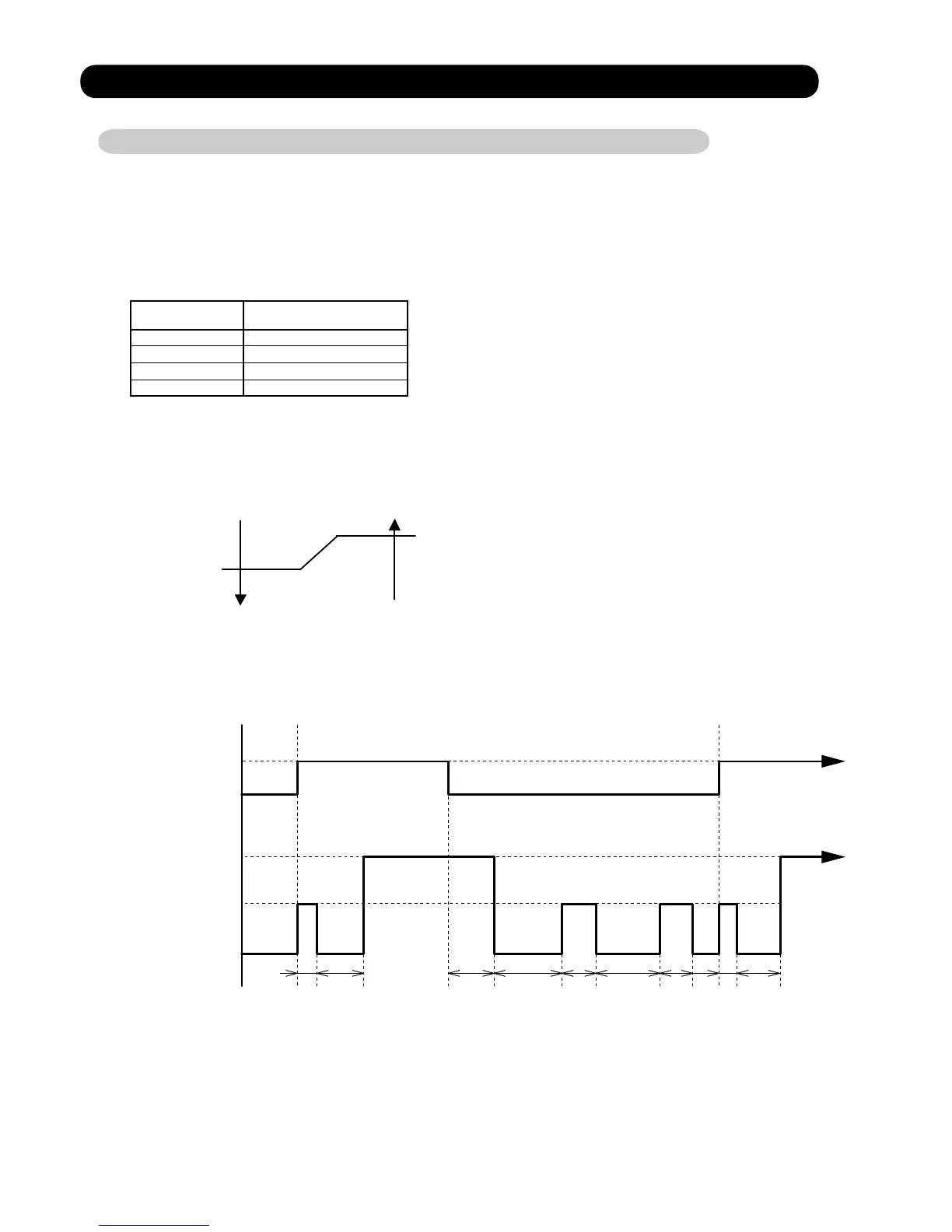

( Fig.3 : Compressor Control based on Room Temperature )
Ts : Setting temperature
Compressor
ON
OFF
Indoor fan
Dry air flow
S-Lo
OFF
( Fig.4 : Indoor Fan Control )
10 30 60 180 60 180 60 10 30
(sec)
[ AB*A18LATN : Dry air flow 740rpm, S-Lo 300rpm ]
[ AB*A24LATN : Dry air flow 780rpm, S-Lo 300rpm ]
[ AB*A36LATN : Dry air flow 650rpm, S-Lo 250rpm ]
[ AB*A45LATN : Dry air flow 680rpm, S-Lo 250rpm ]
