Fujitsu ACUH07LUAS1 User Manual

¢
Model: ADUH24LUAS1
Unit: in (mm)
Rear view
View A
Top view
Side view
Front view
Bottom view
Drain port
38-3/8 (974)
2 (51)
6-7/8 (174)
2-13/16 (71)
6 (152)
44-5/8 (1,134)
2-3/16 (56)
3-7/16 (87)
3-15/16 (100) x 10 = 39-3/8 (1,000)
41-5/16 (1,050)
1-3/16 (30)
14-13/16 (377)
6-9/16 (167)
4-11/16 (119)
3-1/2 (89)
3-1/16 (78)
2-3/16 (55)
1-7/8 (47)
6/16 (10)
24-7/16 (620)
14-5/8 (371)
10-6/16 (264)
5-11/16 (144)
2-11/16 (69)
43-5/16 (1,100)
1-11/16 (43)
13/16 (20)
7-13/16 (198)
6-5/8 (168)
5-15/16
(151)
3-1/16 (78)
2-3/16 (55)
- 17 -

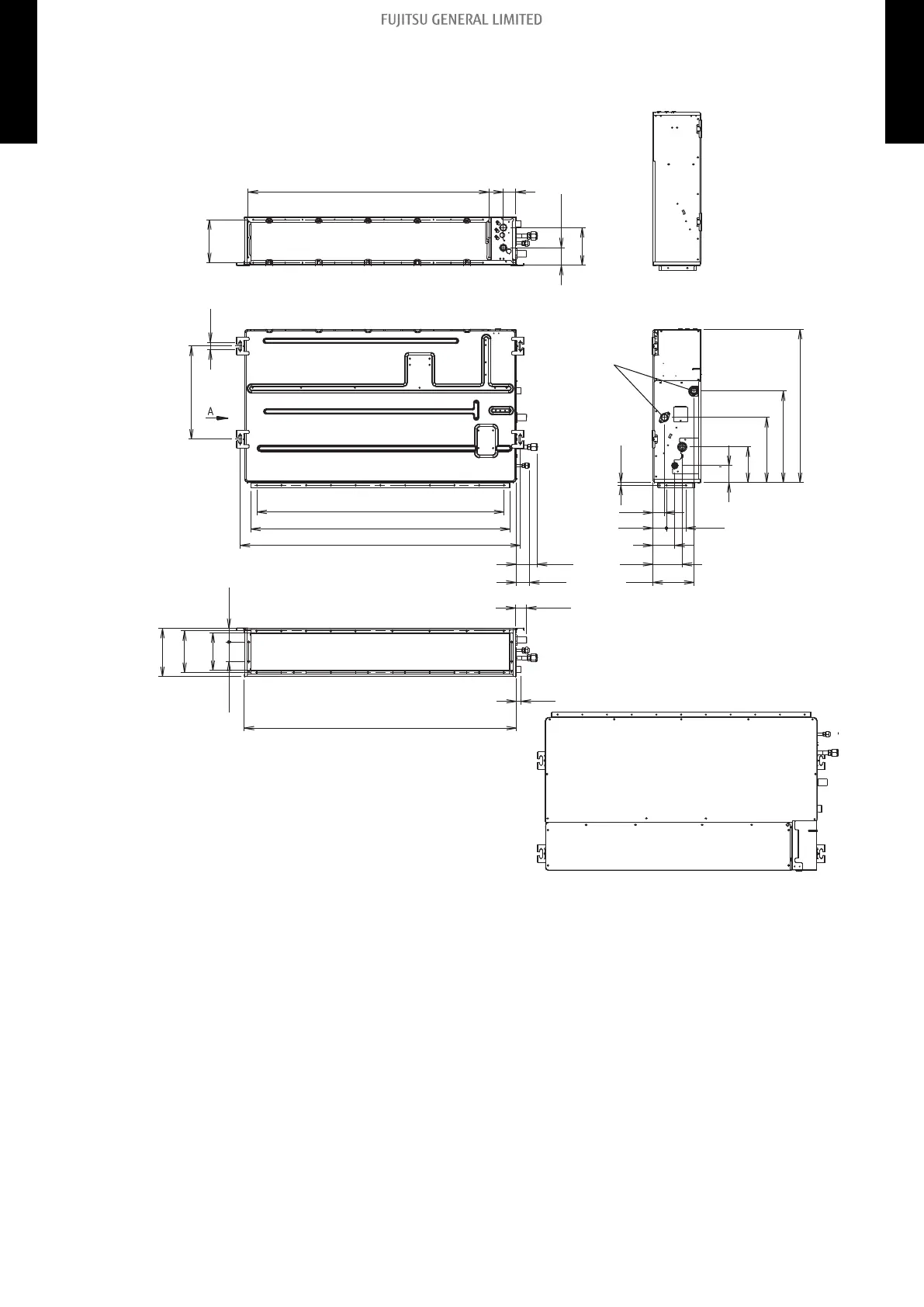

3-2. Slim duct type 3. Dimensions
MULTI-SPLIT TYPE 5-unit type
MULTI-SPLIT TYPE 5-unit type
