Fujitsu ACUH07LUAS1 - Models: ASUH18 LPAS and ASUH24 LPAS

¢
Models: ASUH18LPAS and ASUH24LPAS
Unit: in (mm)
38-9/16 (980) 9-7/16 (240)
11 (280)
for pipe inlet
Ø3-1/8 (80)
1-15/16 (50) 1-15/16 (50)
2-3/8 (60)
16-15/16 (430)
2-1/16 (52)

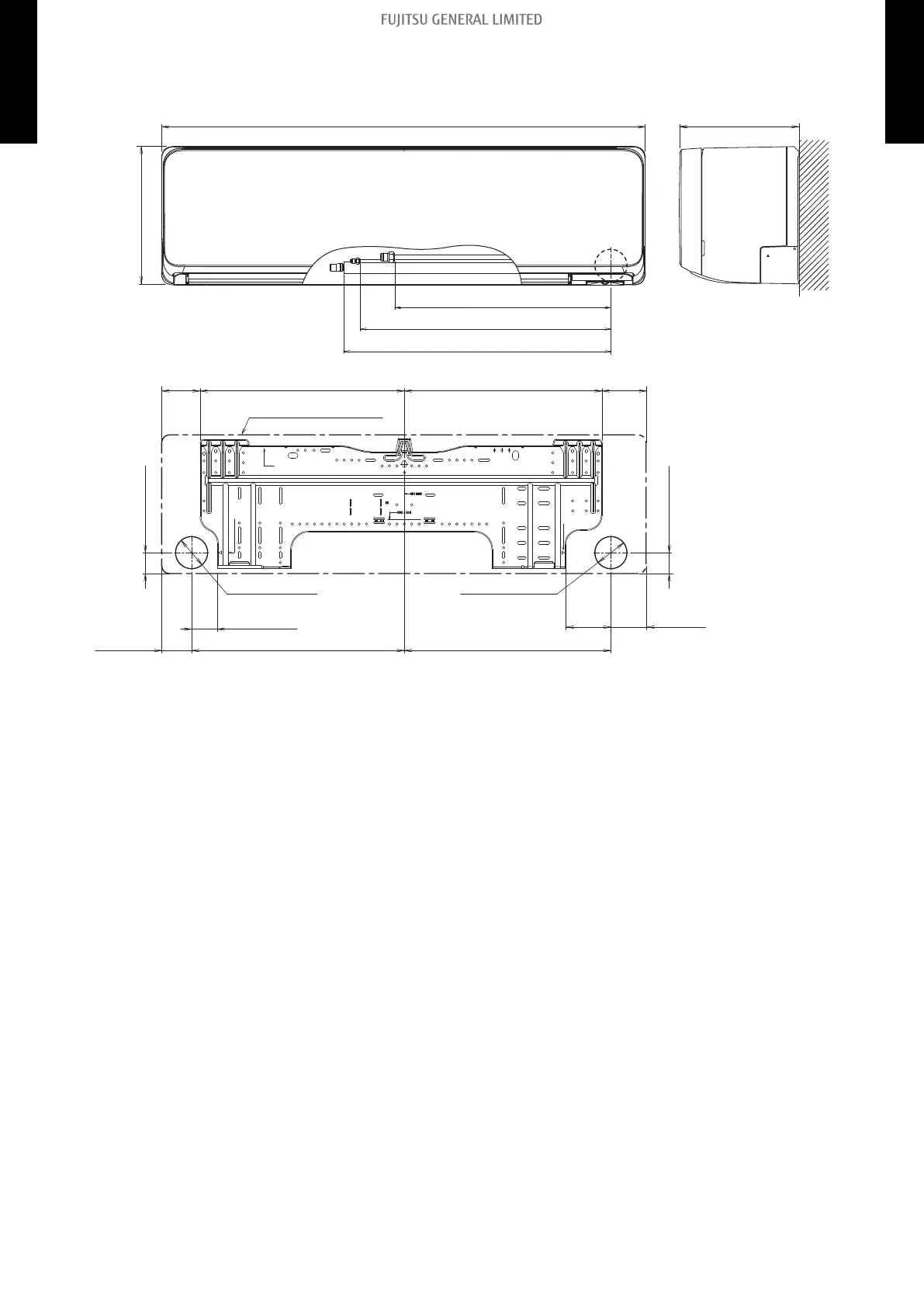

Outline of indoor unit
for pipe inlet
Ø3-1/8 (80)
2-13/16
(72)
16-7/16 (418)
3-9/16
(91)
15-3/4 (400) 3-9/16
(90)
16-1/4 (413)3-1/16
(77)
16-7/16 (417)
19 (482)
20-1/16 (510)
- 24 -
3-3. Wall mounted type 3. Dimensions
MULTI-SPLIT TYPE 5-unit type
MULTI-SPLIT TYPE 5-unit type
