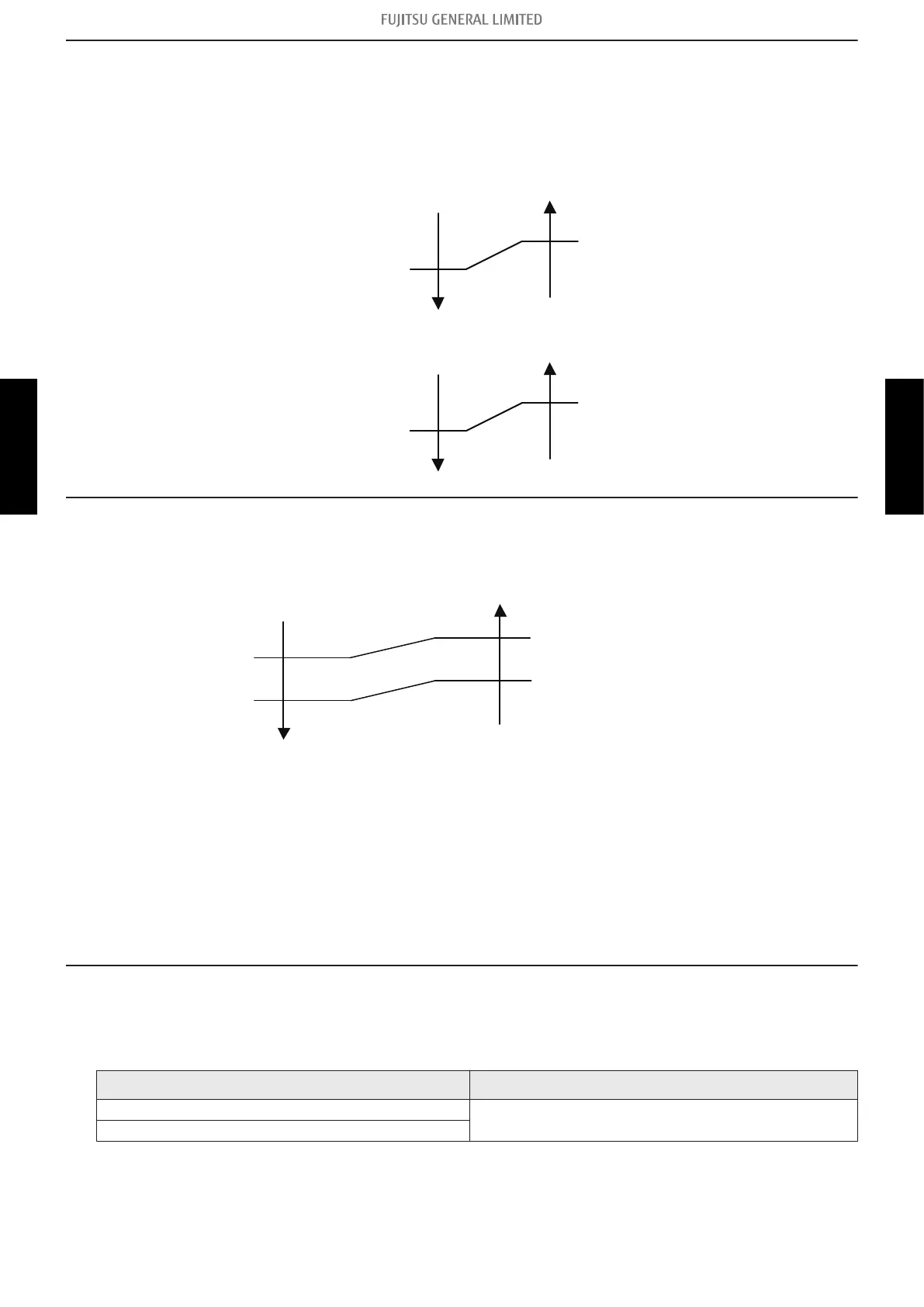

6-5. Compressor preheating
By preheating the compressor, warm airflow is quickly discharged when the operation is started.
Triggering condition
30 minutes after compressor stopped.
Outdoor unit heat exchanger temperature (Tn)
Off
On
Tn
Tn
28.4
°F
(-2°C)
24.8
°F
(-4°C)
→hen the jumper wire (JM2) is disconnected:
41.0°F
(5°C)
Off
On
Tn
Tn
44.6
°F
(7°C)
6-6. External electrical heater control
The external electrical heater is operated as below.
When the room
temperature rises
When the room
temperature drops
Ts: Setting temperature
Heater : Off
Heater : On
Heater : Off
Ts -
5.4°F
(Ts -3°C)
Ts -
21.6°F
(Ts -12°C)
Ts -
1.8°F
(Ts -1°C)
Ts -
18.0°F
(Ts -10°C)
NOTES:
→hen the compressor stop, external electric heater is off.
It operates only in heating mode and when the indoor fan operates. (However, S-LO→ is exclud-
ed.)
6-7. Electronic expansion valve control
The most proper opening of the electronic expansion valve is calculated and controlled under the
present operating condition based on the table below.
Operation mode Pulse range
Cooling/dry mode
Between 52 and 480 pulses
Heating mode
NOTE: At the time of supplying the power to the outdoor unit, the initialization of the electronic ex-
pansion valve is operated (528 pulses are input to the closing direction).
6-5. Compressor preheating - (04-24) - 6. Various control
CONTROL AND
FUNCTIONS
CONTROL AND
FUNCTIONS
