Fujitsu AO G12KBTB Series Design & Technical Manual

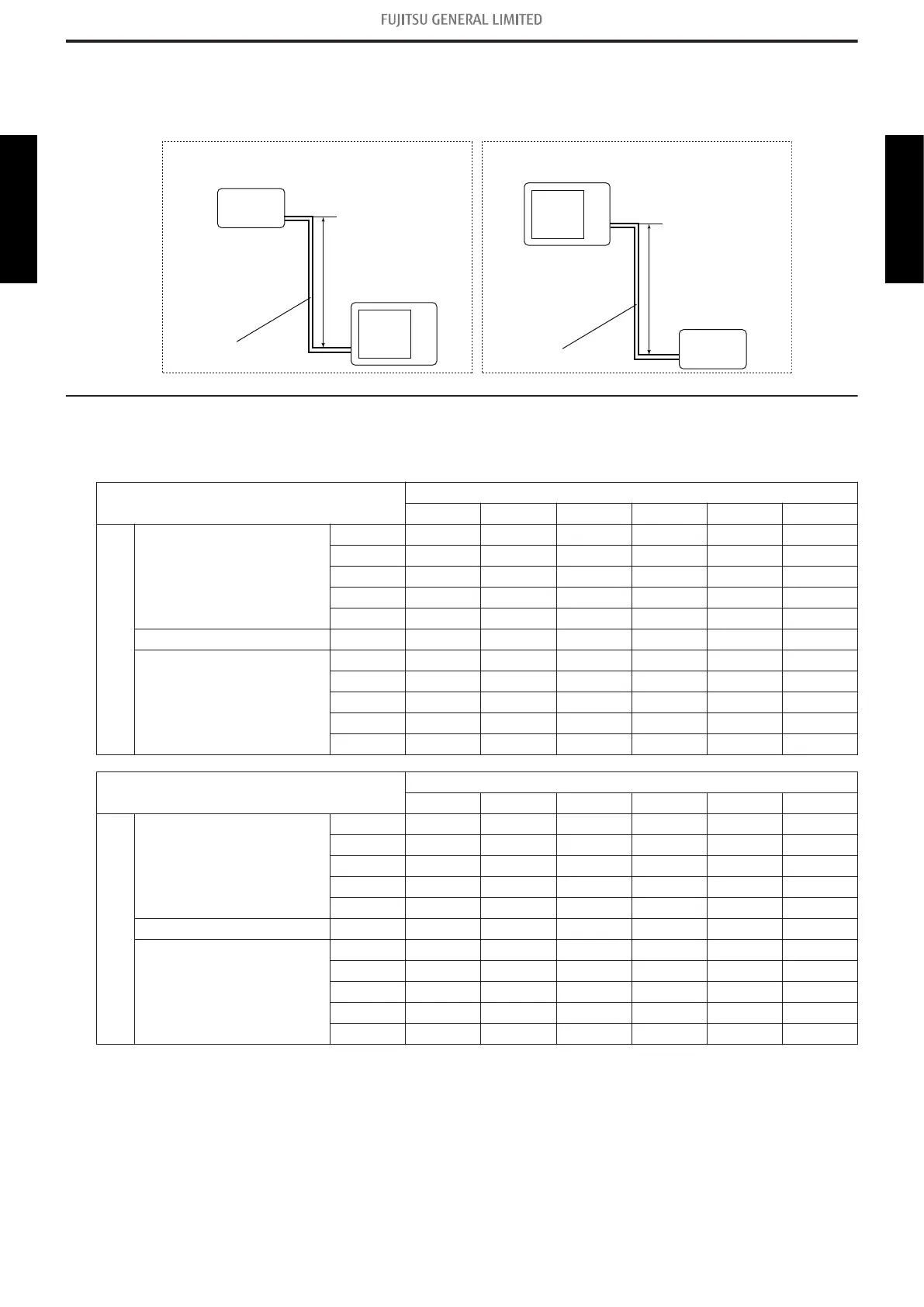

6. Capacity compensation rate for pipe length and height
difference
Height difference H
Indoor unit is higher than outdoor unit *
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
H H
6-1. Model: AOYG12KBTB
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
COOLING
Pipe length (m)
5 7.5 10 15 20 25
Height difference H (m)
Indoor unit is higher than
outdoor unit *
1
20 — — — — 0.879 0.851
15 — — — 0.903 0.894 0.867
10 — — 0.964 0.918 0.909 0.881
7.5 — 0.988 0.968 0.922 0.912 0.885
5 0.992 0.992 0.972 0.925 0.916 0.888
0 1.000 1.000 0.980 0.933 0.923 0.895
Indoor unit is lower than
outdoor unit *
2
-5 1.000 1.000 0.980 0.933 0.923 0.895
-7.5 — 1.000 0.980 0.933 0.923 0.895
-10 — — 0.980 0.933 0.923 0.895
-15 — — — 0.933 0.923 0.895
-20 — — — — 0.923 0.895
HEATING
Pipe length (m)
5 7.5 10 15 20 25
Height difference H (m)
Indoor unit is higher than
outdoor unit *
1
20 — — — — 0.916 0.896
15 — — — 0.943 0.916 0.896
10 — — 1.010 0.943 0.916 0.896
7.5 — 1.000 1.010 0.943 0.916 0.896
5 1.000 1.000 1.010 0.943 0.916 0.896
0 1.000 1.000 1.010 0.943 0.916 0.896
Indoor unit is lower than
outdoor unit *
2
-5 0.995 0.995 1.005 0.939 0.912 0.892
-7.5 — 0.993 1.002 0.936 0.909 0.890
-10 — — 0.999 0.934 0.907 0.887
-15 — — — 0.925 0.898 0.878
-20 — — — — 0.890 0.868
- 59 -
6-1. Model: AOYG12KBTB
6. Capacity compensation rate for pipe length and height difference
OUTDOOR UNIT AOYG12-22KBTB OUTDOOR UNIT AOYG12-22KBTB
