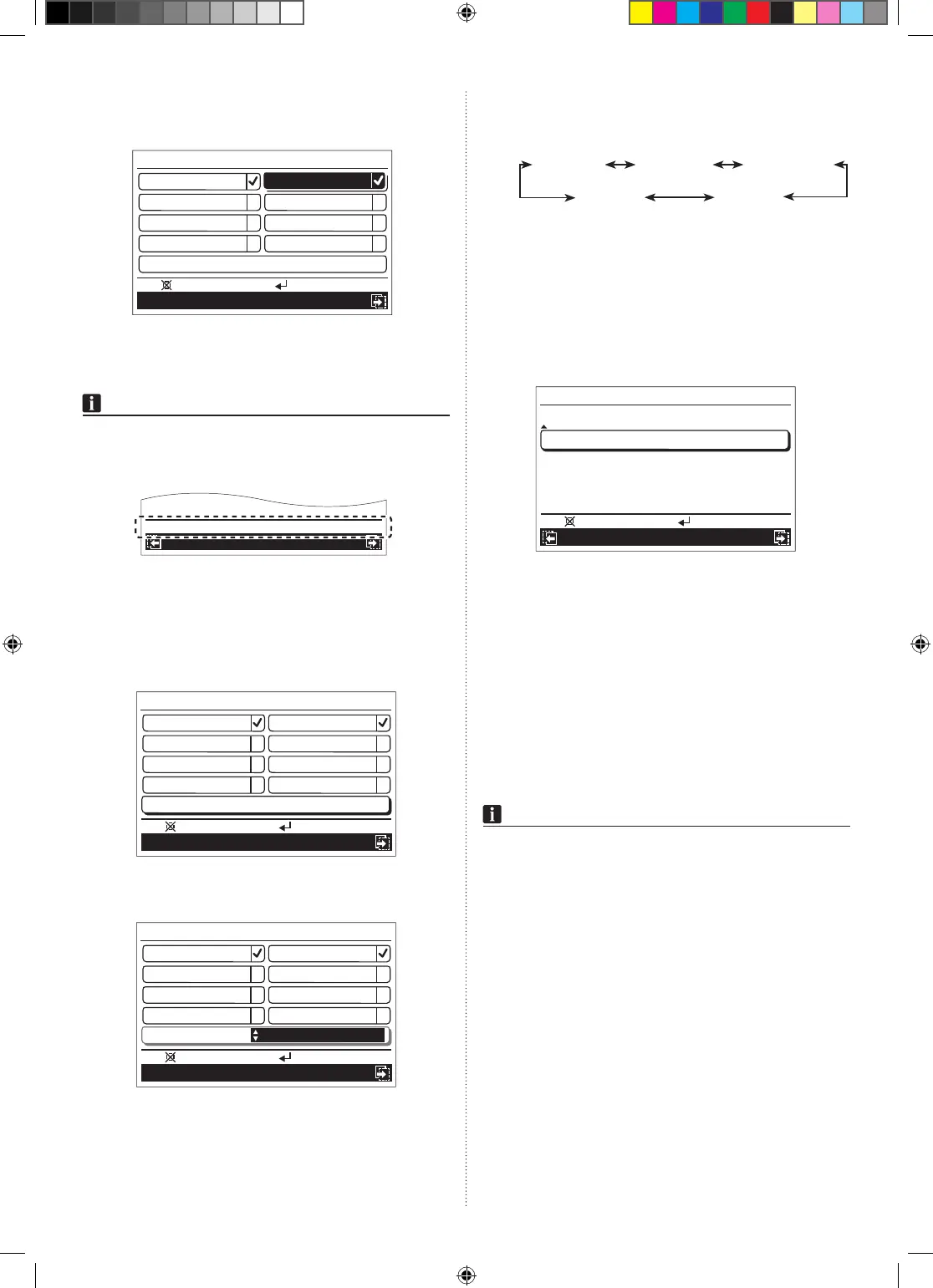

En-28
3
Select zone to be registered in the group with the [Cursor
button]. When you press the [Enter button], a check mark
is displayed.
Day setting
Zone 2
Zone 3
Zone 5
Zone 7
Zone 4
Zone 1
Zone 6
Zone 8
Sensor Indoor unit
Night setting
Mo 10:00
Remove:
Back:
To remove the check mark, adjust the cursor to the zone
name to be unchecked, and press the [Enter button]
again.
NOTE
• Dependingontheinitialsetupintheinstallation,nottheall
ofthecheck-markeldscannotbekeptblank.
In that case, following message is displayed on the screen,
and you need to put a check mark at least one zone.
XXXXXX
XXXXXX
One zone must be open at all times.
4
Select the room-temperature sensor to be registered in
thegroupasfollows:
1. Select [Sensor] with the [Cursor button (Up/Down)], and
press the [Enter button].
Day setting
Zone 3
Zone 5
Zone 7
Zone 4
Zone 2Zone 1
Zone 6
Zone 8
Night setting
Mo 10:00
Setting:
Back:
Sensor Indoor unit
2. Select the room-temperature sensor with the [Cursor button
(Up/Down)].
Day setting
Zone 3
Zone 5
Zone 7
Zone 4
Zone 2Zone 1
Zone 6
Zone 8
Night setting
Mo 10:00
Setting:
Back:
Sensor Indoor unit
Each time you press the [Cursor button (Up/Down)],
displayed sensor switches as follows.
Non-connected sensor will be skipped.
Indoor unit Primary RC Secondary RC
Optional 1 Optional 2
3. To finalize the selected room-temperature sensor, press
the [Enter button]
.
z
5-9-2. Name setting
You can register desired name of zones, groups, and room-
temperature sensors.
1
In “Zone user setting” screen, select [Name setting] with
the [Cursor button (Up/Down)], and press the [Enter but-
ton].
Zone user setting
Day/Night setting
Name setting
Date and time
Mo 10:00
Setting:
Back:
Management
2
Select zone, group, or room-temperature sensor to be
named.
You can register desired names for following items.
Zone: Group: Sensor:
•Zone1 •Day •Indoorunit
•Zone2 •Night •PrimaryRC
•Zone3  •SecondaryRC
•Zone4  •Optional1
•Zone5  •Optional2
•Zone6 
•Zone7 
•Zone8 
NOTE
• Onlyconnectedzonesandsensorsaredisplayed.
