Fujitsu AOU12RL2

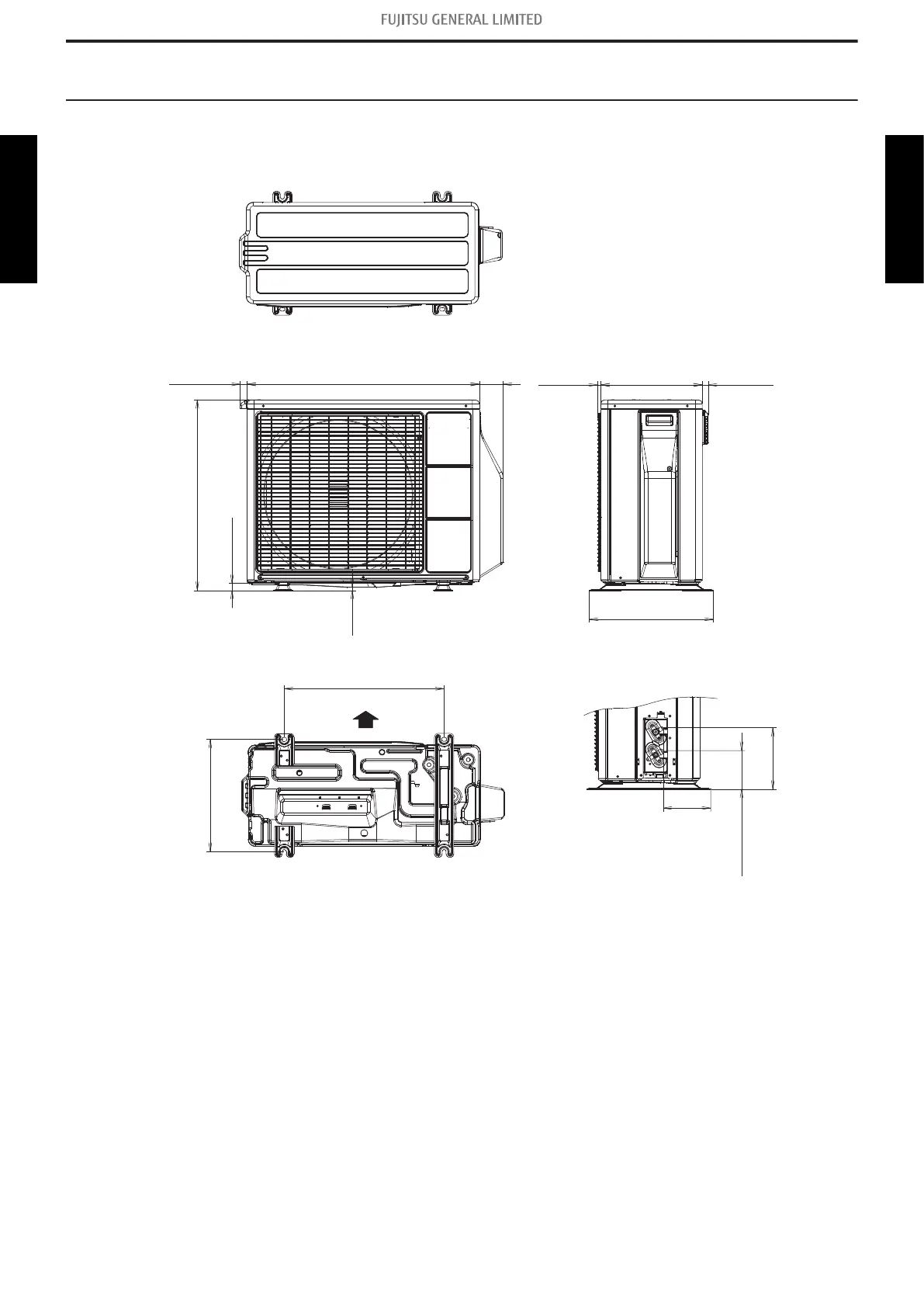

2. Dimensions
2-1. Models: AOU9RL2 and AOU12RL2
Unit: in (mm)
Top view
13/16 (20) 26 (660) 2-11/16
(68)
6/16 (10) 11/16 (18)
13/16 (20)
21-1/4 (540)
11-7/16 (290)
13-7/8 (352)
Front view
Bottom view
Side view
Airflow
3/8 (9)
12-1/2 (318)
17-7/8 (454)
4-5/16 (110)
6-7/8 (175)
5-5/16 (135)
- 27 -
2-1. Models: AOU9RL2 and AOU12RL2
2. Dimensions
OUTDOOR UNIT AOU9-12RL2 OUTDOOR UNIT AOU9-12RL2
