2. Dimensions
2-1. Models: ASU9RL2 and ASU12RL2
Unit: in (mm)
10-5/16 (262)
10-5/16 (262)
1/2 (12)3/8 (10)
1-15/16 (49)
2-9/16
(65)
2-
9/16
(65)
1-15/16 (49)
1-3/4 (44)
8-1/8 (206)
32-5/16 (820)
32-5/16 (820)
14 (355) 13-9/16 (345)
3-9/16
(91)
12-5/16 (312) 12-5/8 (321) 3-3/4
(96)
2-13/16
(72)
1-7/8
(48)

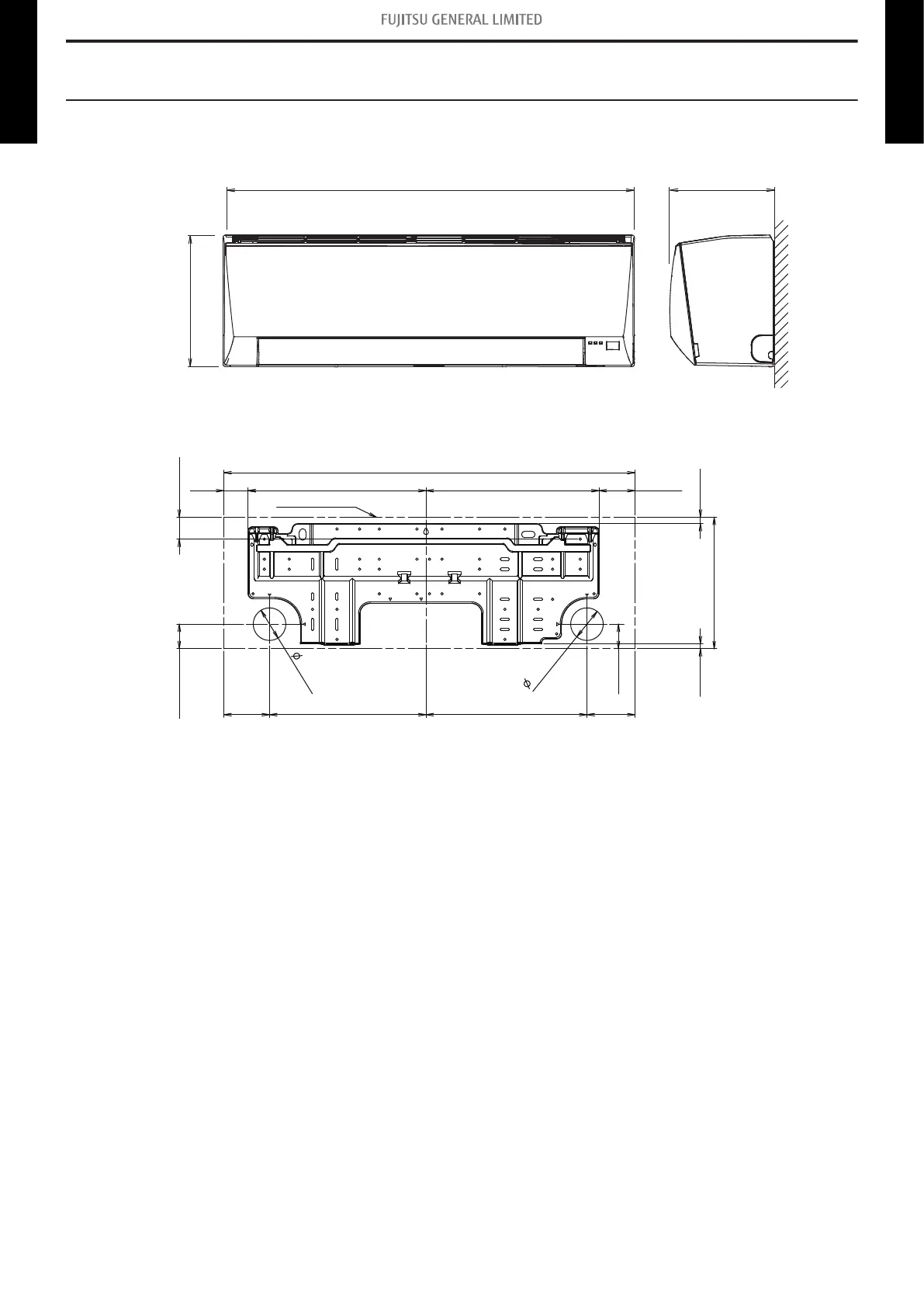

Outline of unit
